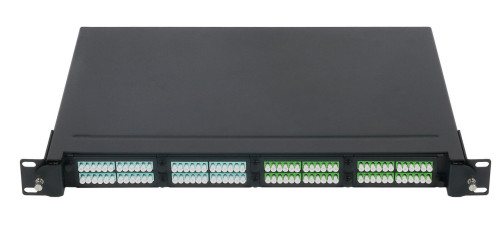

TK-HRS-1096E MPO/MTP Cassette Management Panel for Data Center Height 1U
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001; ISO14001 |
| Model Number: | TK-HRS-1096E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Carton box |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per week |
|
Detail Information |
|||
| Height: | 1U | Fiber Count: | 96F |
|---|---|---|---|
| Test Wavelength (nm): | SM: 1310/1550 MM: 850/1300 | Size(L*W*H): | 486*306*44.5mm |
| Repeatability: | ≤ 0.1dB | Durability: | ≤ 0.2dB |
| Interchangeability: | ≤ 0.2dB | ||
| Highlight: | Data Center MPO Cassette Management Panel,MPO Cassette Management Panel,1U MPO Cassette Management Panel |
||
Product Description
1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment, etc. It is installed in 19 inch racks and cabinets.
1U 19inch MPO/MTP Patch Panel could load 4 Pre-connected cassette module, and the maximum capacity can be managed is 1152 cores for MPO interface, or 96 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.
Application
Optical fiber communication dense wiring system between buildings
Optical link interconnection in optical active equipment for LAN cabling
Telecommunication base station
Data center room of industrial area
Data center room of commercial building
CATV
LAN
WAN
FTTX
