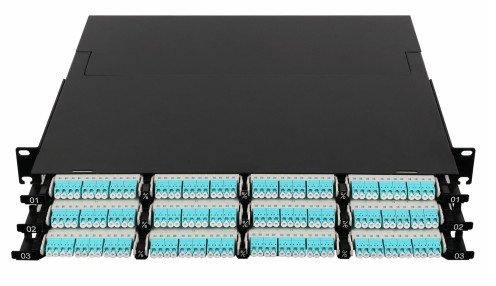

144 Core Super-high Density MPO Patch Panel Height 1U For Data Center
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001:2015 |
| Model Number: | TK-HRS-1144A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Carton box |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per week |
|
Detail Information |
|||
| Height: | 1U | Fiber Count: | 144F |
|---|---|---|---|
| Test Wavelength (nm): | SM: 1310/1550 MM: 850/1300 | Size(L*W*H): | 482.6*428.9*44.2mm |
| Repeatability: | ≤ 0.1dB | Durability: | ≤ 0.2dB |
| Interchangeability: | ≤ 0.2dB | ||
| Highlight: | Data Center MPO Patch Panel,144 Core MPO Patch Panel,1U MPO Patch Panel |
||
Product Description
1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment,etc. It is installed in 19 inch racks and cabinets.
1U 19inch MPO/MTP Patch Panel could load 12 Pre-connected cassette module, and the maximum capacity can be managed is 144 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.
Application
Optical fiber communication dense wiring system between buildings
Optical link interconnection in optical active equipment for LAN cabling
Telecommunication base station
Data center room of industrial area
Data center room of commercial building
CATV
LAN
WAN
FTTX
Features
Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.
1U high-density size capacity 144 fibers for LC interface
2U high-density size capacity 288 fibers for LC interface
4U high-density size capacity 576 fibers for LC interface
Male or Female MPO/MTP connector are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection.
Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating.
Sturdy and durable, electrostatic coating surface after the Strict production process.
The cassette module and patch panel are small in size, lightweight, impact-resistant, high-pressure, flame-retardant, corrosion-resistant, strong structure to protect the internal optical fiber.
Parameter
