1U Rack Mount 24F MPO-LC MTP Patch Panel High Density 96F For Data Center
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001:2015 |
| Model Number: | TK-HRS-1096E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 32.86 |
| Packaging Details: | Carton box |
| Delivery Time: | 1~3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per week |
|
Detail Information |
|||
| Height: | 1U | Fiber Count: | 96F |
|---|---|---|---|
| Cassette: | 4*24F MPO-LC | Size(L*W*H): | 483*310*44.5mm |

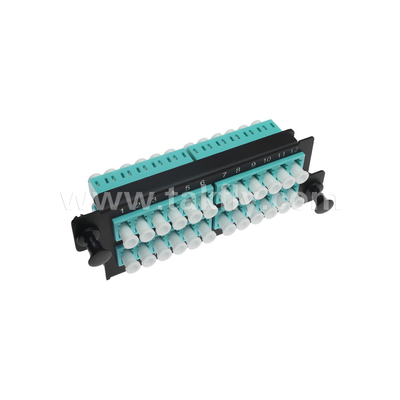

| Adapter Panel: | Support 24*LC Ports/12*SC Ports/6*MPO Ports Adaptor Panel | ||
| Highlight: | 24F MPO-LC MTP Patch Panel,1U Rack Mount MTP Patch Panel,High Density MTP Patch Panel |
||
Product Description

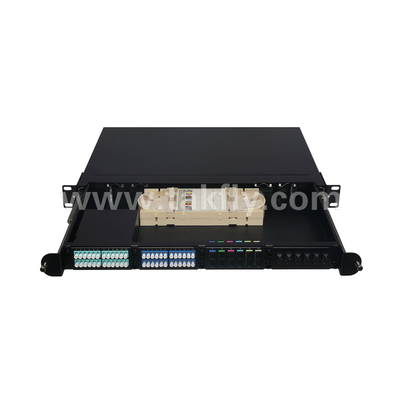

1U 19 inch MPO/MTP high-density rack-mount fiber patch panel is designed for large data center rooms: MDF application, fiber distribution unit management, and other high-density integrated optical fiber environments, etc. It is installed in 19 inch racks and cabinets.

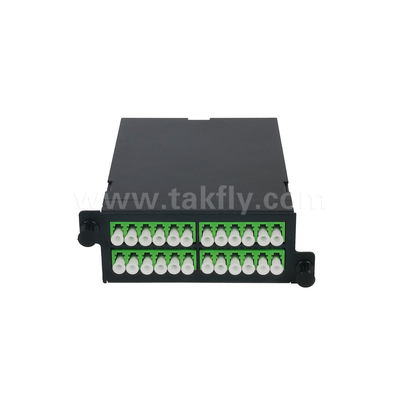

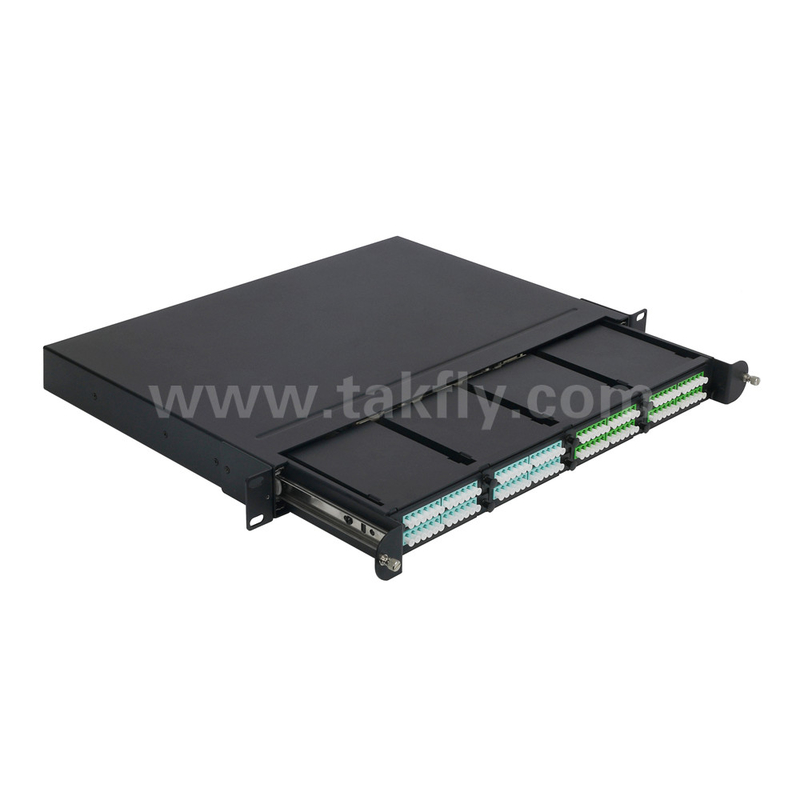

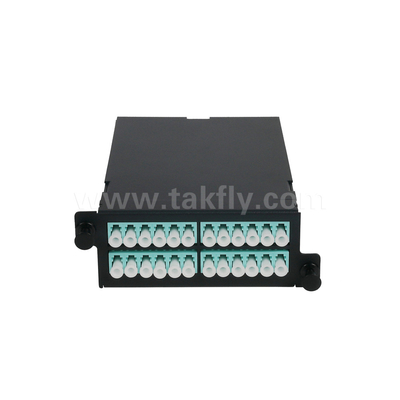

1U 19 inch MPO/MTP patch panel could load 4 pre-connected cassette modules, and the maximum capacity can be managed is 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.
Application
- Optical fiber communication dense wiring system between buildings
- Optical link interconnection in optical active equipment for LAN cabling
- Telecommunication base station
- Data center room of industrial area
- Data center room of commercial building
- CATV
- LAN
- WAN
- FTTX
Features
- New brand high quality aluminum alloy material
- Installed in 19 inch rack mount and cabinet, application for cassette modules centralized management.
- 1U high-density size capacity 96 fibers for LC interface
- Male or Female MPO/MTP connectors are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection
- Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating
- The cassette module and patch panel are small in size, lightweight, impact resistant, high pressure, flame retardant, corrosion resistant, strong structure to protect the internal optical fiber, ultra-high sealing performance to facilitate dust-proof, innovative design for advanced network equipment
specifications
|
Fiber type
|
SM (G652, G655,G657); MM (OM1-OM5)
|
||
| Connector | Male(Pin needle), Female | LC | |
| MPO/MTP | |||
| Cable Diameter(mm) | 0.9/0.6 | ||
| Insertion loss(dB) |
Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
≤0.3 | |
|
Return loss (Min)
|
APC SM:60dB
|
PC MM: 20dB
|
UPC SM: 40dB
APC SM: 60dB
|
|
Test Wavelength (nm)
|
SM: 1310/1550
MM: 850/1300
|
||
|
Repeatability
|
≤ 0.1dB
|
||
|
Durability
|
≤ 0.2dB
|
||
|
Interchangeability
|
≤ 0.2dB
|
||
|
Bending radius (Dynamic/static)
|
Min 40mm
|
||
|
Product name
|
Racks
|
Cassette module
|
|
|
Size (L*W*H)
|
483*310*44.5mm
|
86*120*36.9mm
|
|
|
Product model
|
TK-HRS-1096E
|
TK-HRM-05
|
|
|
Material
|
Aluminum
|
||
