96F Cassette Adapter Panel 1U Rack Mount MPO Patch Panel for Data Center Height 1U
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001:2015 |
| Model Number: | TK-HRS-1096F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 22.86 |
| Packaging Details: | Carton box |
| Delivery Time: | 1~3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per week |
|
Detail Information |
|||
| Height: | 1U | Fiber Count: | 96F |
|---|---|---|---|
| Cassette: | 4*24F MPO-LC | Size(L*W*H): | 482.6*343*44mm |

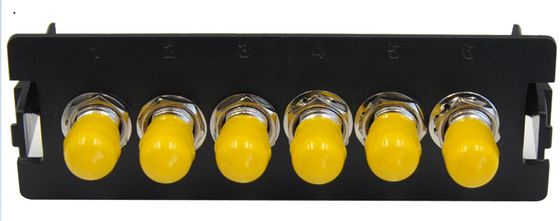

| Adapter Panel: | Support SC LC FC ST | ||
| Highlight: | 1U Rack Mount MPO Patch Panel,96F Cassette Adapter Panel,Data Center MPO Patch Panel |
||
Product Description

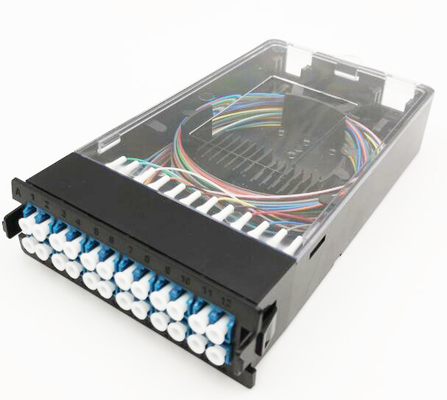

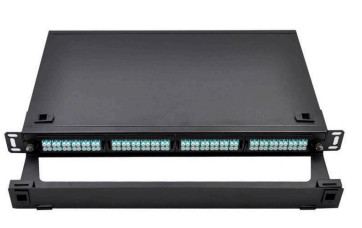

Takfly series rack mounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high-density MTP / MPO Fiber cabling systems.This solution contributes to greater network availability that especially suitable for SAN, LAN, and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12/24-fiber MTP / MPO
based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
specifications
|
Fiber type
|
SM (G652, G655,G657); MM (OM1-OM5)
|
||
|
Connector
|
Male (Pin needle), Female
|
LC
|
|
|
MPO/MTP
|
≤ 0.3
|
||
|
Return loss (Min)
|
APC SM:60dB
|
PC MM: 20dB
|
UPC SM: 40dB
APC SM: 60dB
|
|
Test Wavelength (nm)
|
SM: 1310/1550
MM: 850/1300
|
||
|
Repeatability
|
≤ 0.1dB
|
||
|
Durability
|
≤ 0.2dB
|
||
|
Interchangeability
|
≤ 0.2dB
|
||
|
Bending radius (Dynamic/static)
|
20/10
|
||
|
Product name
|
Racks
|

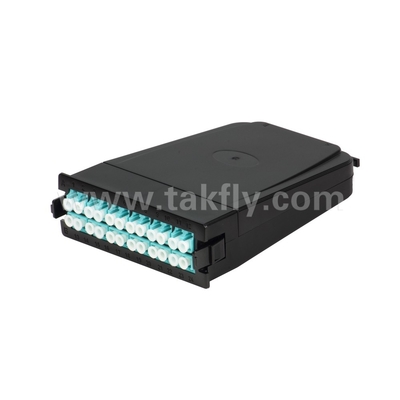

Cassette module
|
|
|
Size (L*W*H)
|
482.6*343*44mm
|
96.5*160.1*32.7mm
|
|
|
Product model
|
TK-HRF-1096F
|
TK-HRM-04
|
|
|
Material
|
1.2mm~1.5mm Cold-rolled steel
|
||
Want to Know more details about this product
