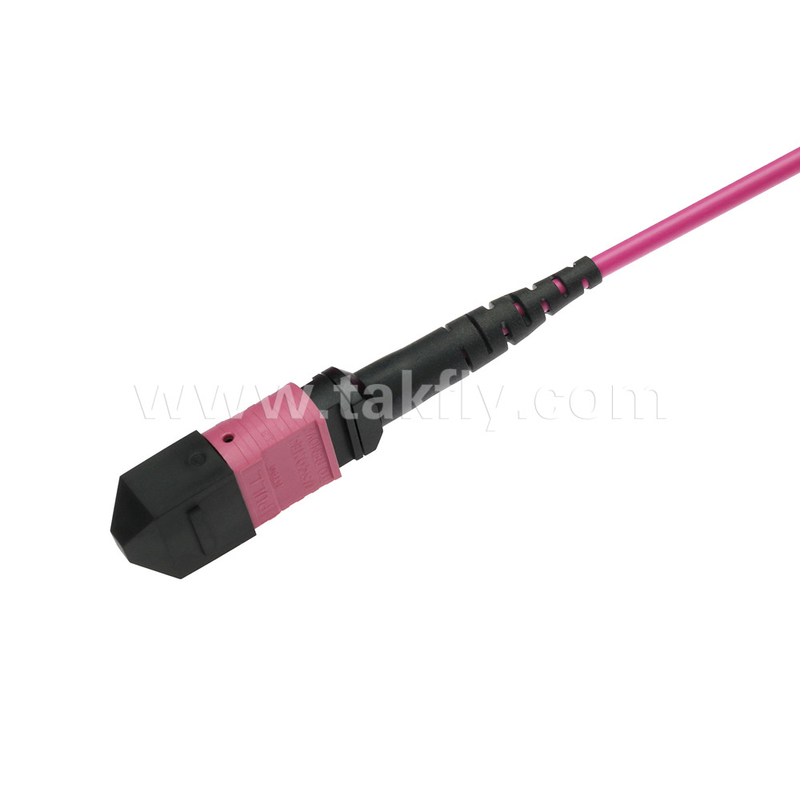

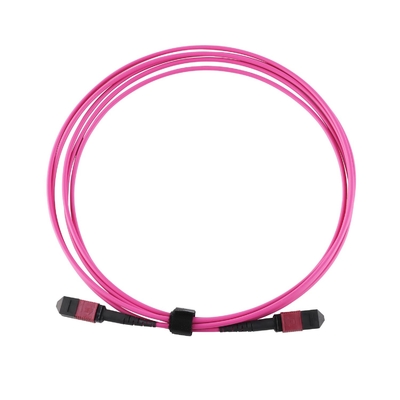

Elite Multimode OM4 50/125, Plenum OFNP Type B MPO Patch Cord 5m 16ft MTP-12 PC Female To MTP-12 PC Female
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001:2015 |
| Model Number: | MPO to MPO patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 25.32 |
| Packaging Details: | Individual Antistatic packaging bag and carton box |
| Delivery Time: | 3~5 days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per week |
|
Detail Information |
|||
| Cable: | 3.0mm OM4 Indoor Micro Violet Plenum OFNP | Connector: | US Conec MTP® 12F PC Female Elite |
|---|---|---|---|
| Insertion Loss: | <0.35dB | Return Loss: | >20dB |
| Polarity: | B | ||
| Highlight: | MPO Patch Cord 5m,MTP-12 PC Female MPO patch cord,Plenum OFNP Type B Patch Cord |
||
Product Description
US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Takfly provides a full range of MPO/MTP patch cords, and top-rank customized service regarding cable type, transmission mode, connector type, and polarity.
Features
Precision molded MT ferrule
High-precision guide pins for exact alignment
Stable low insertion loss
IEC 61754-7 and EIA/TIA-604-5 Compliant
Specifications
| Connector A | US Conec MTP® Female | Connector B | US Conec MTP® Female |
| Optical fiber | Multimode OM4 50/125 | Fiber count | 12 |
| Endface | PC-PC | Polarity | B |
| Wavelength | 850/1300nm | Return loss | >20dB |
| Insertion loss | <0.35dB | Cable diameter | 3.0mm |
| Cable color | Violet | Cable jacket | Plenum |
| Operating temperature | -20~+70℃ | Storage temperature | -40~+80℃ |
Pictures
