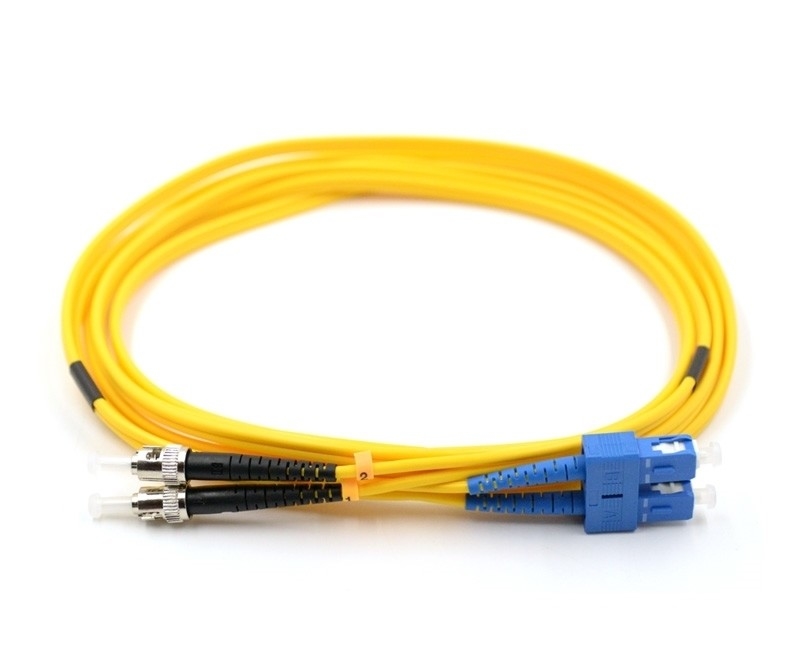

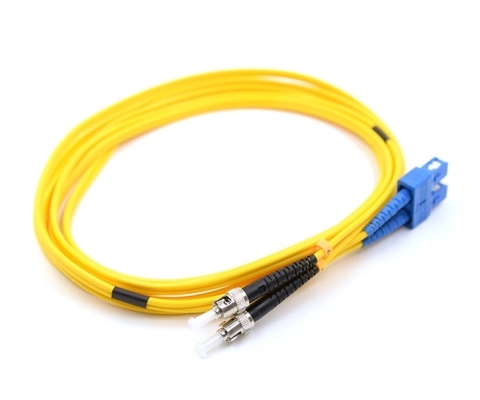

3.0mm Fiber Optic Patchcord With OFNP Cable UPC/APC Polishing Customized Lengths
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/ OEM |
| Certification: | ISO, CE, ROSH, REACH, CPR |
| Model Number: | TK- PATCHCORD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | platic bag+ carton box |
| Delivery Time: | 1-3 working days( according to quantity) |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 120,000-150,000 pcs per month |
|
Detail Information |
|||
| Color: | Customized Colors | Jacket Type: | PVC/LSZH |
|---|---|---|---|
| Cable Jacket: | PVC/LSZH/OFNP | Diameter: | 3.0mm |
| Fiber Count: | Simplex/Duplex | Cable Length: | 1m/ 2m/ 3m/ 5m/ 10m/ Customized |
| Polishing Type: | UPC/APC | Connector Color: | Blue/Beige/ Aqua/ Magenta |
| High Light: | 3.0mm Fiber Optic Patchcord,OFNP Cable Fiber Optic Patchcord,Customized Lengths Fiber Optic Patchcord |
||
Product Description
Product Description:
The Fiber Optic Patchcord has a diameter of 3.0mm, making it compatible with most network devices. It is available in both Simplex and Duplex Fiber Count options, allowing you to choose the best configuration for your specific needs.
Our Fiber Optic Patchcord is manufactured with high-grade materials, ensuring its durability and longevity. It is built to withstand frequent use and can withstand various environmental factors like temperature changes, humidity, and pressure.
The patch cord comes with two Clip Style options: Remove Clip or Transparent. The Remove Clip Style allows you to detach the clip from the connector, which makes it easier to install and remove the patch cord. On the other hand, the Transparent Clip Style allows you to see the optical fiber inside, making it easier to identify the patch cord's orientation and prevent errors during installation.
This Fiber Optic Patchcord is a Telecom Grade product, which assures you of its quality and reliability. It is perfect for various applications such as LAN, WAN, FTTH, CATV, and other high-speed data transmission systems.
If you're in search of a high-quality SM patch cord, look no further than our Fiber Optic Patchcord. It is a reliable and cost-effective solution that meets your network connectivity needs. Whether you need a patch cord for personal or commercial use, our Fiber Optic Patchcord is an excellent choice.
Applications:
The TK-PATCHCORD is an SM patch cord, which means that it is designed for use with single-mode fiber optic patch cable. This makes it ideal for applications where high bandwidth and long distance data transmission are required. Its interchangeability of ≤ 0.2dB ensures that it provides reliable and consistent performance across a range of different scenarios.
The jacket type of the TK-PATCHCORD is available in both PVC and LSZH, allowing it to be used in a wide range of different environments. PVC is a good choice for general-purpose applications, while LSZH is ideal for use in areas where fire safety is a concern. The cable is also available in a range of customized colors, allowing it to be easily identified and integrated into existing systems.
The connector color of the TK-PATCHCORD is available in blue, beige, aqua, and magenta, making it easy to identify and connect to other components in a system. This makes it ideal for use in a variety of different applications, including data centers, telecommunications networks, and industrial automation systems.
Overall, the TK-PATCHCORD is a versatile and reliable optical fiber patch cable that is suitable for a wide range of different occasions and scenarios. Its high-quality construction and reliable performance make it an excellent choice for anyone who needs a high-performance fiber optic patch cord.
Fiber Optic Patchcord Specification:
| End face type | PC,UPC and APC |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature |
-20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
| Bending radius (Static/Dynamic |
10D/20D |
| Length | Customized |
FAQ:
Q: What is the brand of this fiber optic patchcord?
A: The brand of this fiber optic patchcord is Takfly or OEM.
Q: What is the model number of this fiber optic patchcord?
A: The model number of this fiber optic patchcord is TK-PATCHCORD.
Q: Where is this fiber optic patchcord manufactured?
A: This fiber optic patchcord is manufactured in Shenzhen, China.
Q: What type of connector does this fiber optic patchcord have?
A: This fiber optic patchcord has various connector types available, such as LC, SC, ST, and FC.
Q: What is the maximum length of this fiber optic patchcord?
A: The maximum length of this fiber optic patchcord varies depending on the connector type and fiber type, but typically ranges from 1 meter to 100 meters.
