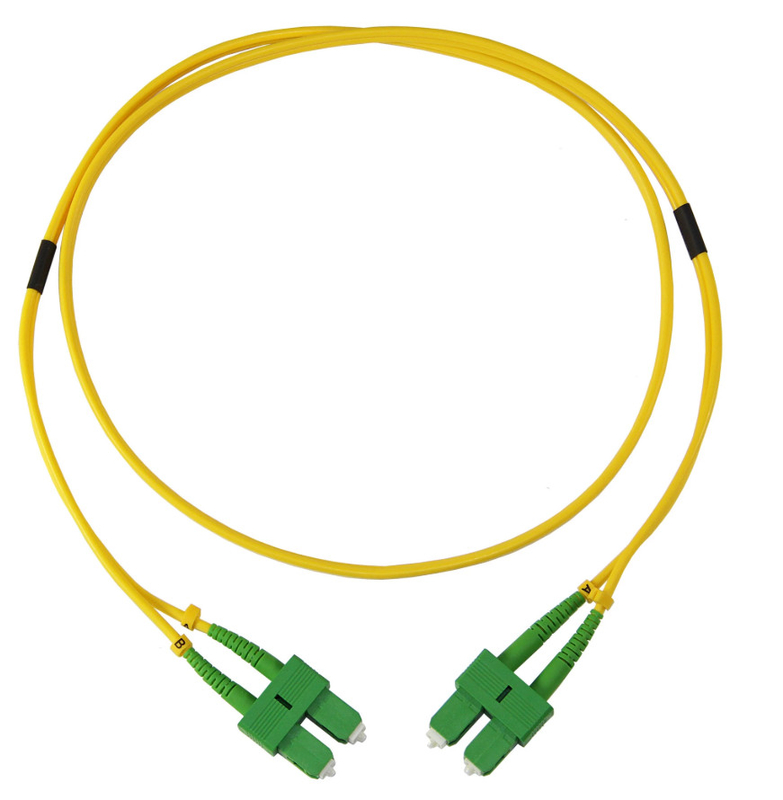

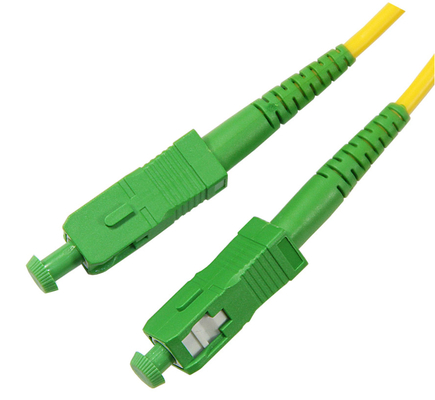

Telecom Grade Fiber Optic Patch Cable With PVC/LSZH Jacket 3.0mm Diameter And Low Insertion Loss
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Takfly/ OEM |
Certification: | ISO, CE, ROSH, REACH, CPR |
Model Number: | TK- PATCHCORD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Can be negotiated |
Packaging Details: | Static bag+ carton box |
Delivery Time: | 1-3 working days( according to quantity) |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 120,000-150,000 pcs per month |
Detail Information |
|||
Jacket Type: | PVC/LSZH | Cable Length: | 1m/ 2m/ 3m/ 5m/ 10m/ Customized |
---|---|---|---|
Fiber Diameter: | 9/125um, 50/125um, 62.5/125um | Cable Jacket: | PVC/LSZH/OFNP |
Clip Tyle: | Remove Clip Or Transparent | Diameter: | 3.0mm |
Insertion Loss: | <0.3dB | Grade: | Telecom Grade |
Highlight: | 3.0mm Diameter fiber optic patch cable,Telecom Grade fiber optic patch cable,PVC/LSZH fiber optic patch cable |
Product Description
Product Description:
Our Fiber Optic Patchcord boasts an interchangeability of ≤ 0.2dB, ensuring that your data transmission is seamless and uninterrupted. You can rely on our product to deliver consistent performance, no matter the conditions or usage patterns.
For polishing, you can choose between UPC (Ultra Physical Contact) and APC (Angled Physical Contact) options. Both options provide superior performance and durability, ensuring that your LC fiber patch cord remains reliable and effective over time.
With a diameter of 3.0mm, our Fiber Optic Patchcord is both compact and easy to install. The white cable color ensures that it blends seamlessly with your existing setup, without disrupting the aesthetics of your environment.
Our Fiber Optic Patchcord is compatible with a wide range of networking applications, making it an ideal choice for professionals and individuals alike. Whether you're looking for a SM patch cord for your office, or a reliable solution for your home network, our product is sure to meet your needs.
Invest in our Fiber Optic Patchcord today and experience the benefits of a high-quality and reliable networking solution. With our product, you can rest assured that your data transmission remains seamless and uninterrupted, no matter the conditions or usage patterns.
Applications:
The TK-PATCHCORD is a single mode patch cord that provides low insertion loss and high return loss. The interchangeability of the patch cord is guaranteed to be ≤ 0.2dB, ensuring that it is compatible with various connectors. The connector colors available for this product are blue, beige, aqua, and magenta.
The fiber optic patch cord is ideal for a wide range of applications, including data centers, telecommunications, CATV, LAN, WAN, and FTTx networks. It can be used to connect equipment such as routers, switches, and servers to fiber optic cables. The patch cord can also be used for fiber optic testing and measurement applications.
The TK-PATCHCORD is suitable for use in harsh environments due to its high-quality materials and construction. The PVC/LSZH/OFNP cable jacket provides protection against moisture, abrasion, and other external factors that could damage the fiber optic cable. This makes it ideal for use in outdoor applications where the patch cord may be exposed to harsh weather conditions.
In summary, the Takfly/OEM TK-PATCHCORD is a reliable and high-performing fiber optic patch cord suitable for a wide range of applications. Its telecom grade quality, low insertion loss, high return loss, and interchangeability make it an ideal choice for connecting equipment to fiber optic cables. Its customized colors, connector colors, and cable jackets make it suitable for various environments.
Fiber Optic Patchcord Specification:
End face type | PC,UPC and APC |
Fiber type | SM(G652,G655,G657);MM(OM1-OM5) |
Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
Insertion loss | ≤ 0.3 dB |
Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
Repeatability | ≤ 0.1 |
Durability | ≤ 0.2dB |
Interchangeability | ≤ 0.2dB |
Tensile strength | >70N |
Operating Temperature |
-20℃~70℃ |
Storage Temperature | -40℃~80℃ |
Outer Sheath Material | PVC,LSZH,TPU |
Bending radius (Static/Dynamic |
10D/20D |
Length | Customized |
FAQ:
A: The brand name of this Fiber Optic Patchcord product is Takfly/OEM.
2. Q: What is the model number of this Fiber Optic Patchcord product?A: The model number of this Fiber Optic Patchcord product is TK-PATCHCORD.
3. Q: Where is this Fiber Optic Patchcord product manufactured?A: This Fiber Optic Patchcord product is manufactured in Shenzhen, China.

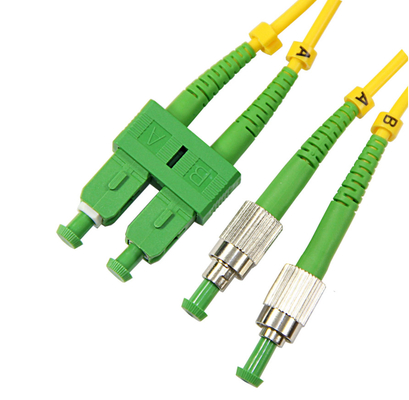

4. Q: What type of connector is used in this Fiber Optic Patchcord product?A: This Fiber Optic Patchcord product uses various types of connectors such as LC, SC, ST, FC, etc.
5. Q: What is the length of this Fiber Optic Patchcord product?A: The length of this Fiber Optic Patchcord product can vary depending on the requirement of the customer.
