• 20m Lime Green OM5 MPO/MTP Fiber Optic Cable with Zirconia Ceramic Connector
  • 20m Lime Green OM5 MPO/MTP Fiber Optic Cable with Zirconia Ceramic Connector

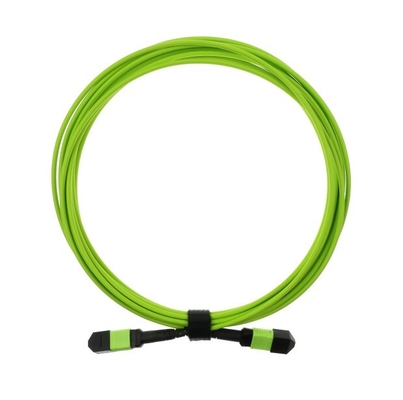

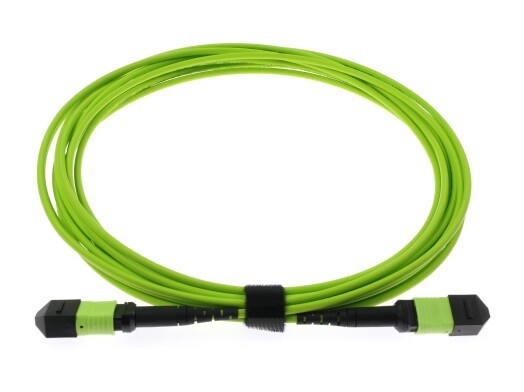

20m Lime Green OM5 MPO/MTP Fiber Optic Cable with Zirconia Ceramic Connector

20m Lime Green OM5 MPO/MTP Fiber Optic Cable with Zirconia Ceramic Connector

Product Details:

Place of Origin: China
Brand Name: Takfly/DF
Certification: ISO, CE, ROSH, REACH, CPR
Model Number: TK-MPO-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Can be negotiated
Packaging Details: Static bag+ carton box
Delivery Time: 1-3 working days( according to quantity)
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 120,000-150,000 connectors per month
Get Best Price Contact Now

Detail Information

Connector Material: Zirconia Ceramic Fiber Type: Multi-Mode
Connector Type: MPO/MTP Cable Color: Lime Green
Cable Length: 20m Durability: ≤ 0.2dB
Storage Temperature: -40°C To +85°C Cable Jacket: PVC/LSZH
High Light:

OM5 MPO MTP Fiber Optic Cable

,

Zirconia Ceramic Connector MPO MTP Cable

,

20m MPO MTP Fiber Optic Cable

Product Description

Product Description:

One of the standout features of the MPO MTP is its lime green cable color, which makes it easy to identify and differentiate from other cables in your network. Furthermore, this product boasts exceptional durability with a maximum attenuation of ≤0.2dB, ensuring optimal performance over long periods of use.

When it comes to return loss, the MPO MTP is in a league of its own. With a minimum return loss of ≥20dB, this product delivers superior signal quality and reliable transmission.

The MPO MTP also features a cable diameter of 3.0mm, which allows for easy installation and flexibility in cabling arrangements. With a fiber count of 24-fiber, this product is designed to handle even the most demanding applications.

Overall, the MPO MTP is an ideal solution for multi-fiber cabling systems, offering high performance, durability, and ease of use. Whether you're looking for a Multi-Fiber Push-On Termination or a Multi-Fiber Push-On Termination Adapter, the MPO MTP is the perfect choice.



Features:

  • Product Name: MPO MTP Fiber Optic Cable
  • Multi-Fiber Push On (MPO) MTP Fiber Optic Patchcord
  • Storage Temperature: -40°C To +85°C
  • Fiber Type: Multi-Mode
  • Cable Jacket: PVC/LSZH
  • Cable Color: Lime Green
  • Multi-Fiber Push-On Connectors

MPO MTP Patchcord Specification:

Item LC,SC,ST,FC....... MPO/MTP
End face type PC, UPC, and APC PC and APC
Fiber type SM(G652, G655, G657);MM(OM1-OM5)
Core number 12,24
Cable Diameter 0.9,2.0,3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB) ≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength(nm)

SM:1310/1550

MM:850/1300

Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC, LSZH
Bending radius(Static/Dynamic) 10D/20D
Length

Customized



Applications:

One of the key benefits of the MPO MTP Cable is its durability. With a maximum insertion loss of ≤0.35dB and a durability of ≤ 0.2dB, this cable is built to last. It is also constructed from high-quality zirconia ceramic, which provides excellent resistance to wear and tear.

The MPO MTP Fiber Optic Cable is designed to be used in a variety of different scenarios. For example, it is ideal for use in data centers and server rooms, where high-speed data transfer is essential. It is also suitable for use in telecommunications networks, where it can be used to connect multiple devices over long distances.

Another key advantage of the MPO MTP Cable is its high fiber count. With 24 fibers, this cable is able to handle large amounts of data transfer at high speeds. This makes it ideal for use in applications where bandwidth is at a premium.

Overall, the Takfly/DF TK-MPO-PC MPO MTP Fiber Optic Cable is an excellent choice for anyone looking for a high-performance fiber optic cable. Whether you are building a new data center or upgrading an existing network, this cable is sure to meet your needs.



Support and Services:

The MPO MTP product provides technical support and services to ensure the best performance of the product. Some of the technical support and services offered include:

  • Product training and education
  • Design assistance and consultation
  • Technical specification review
  • Customized cable assemblies and labeling
  • Testing and certification
  • Product repair and maintenance

These services are designed to help customers get the most out of their MPO MTP product, ensuring that it is installed and functioning properly to meet their specific needs.
