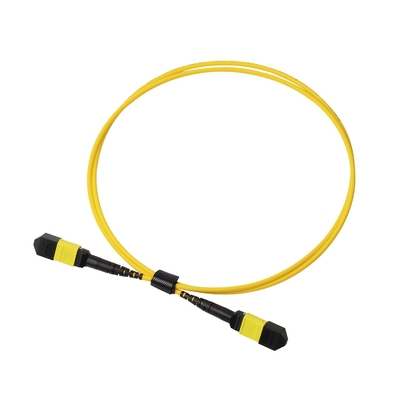

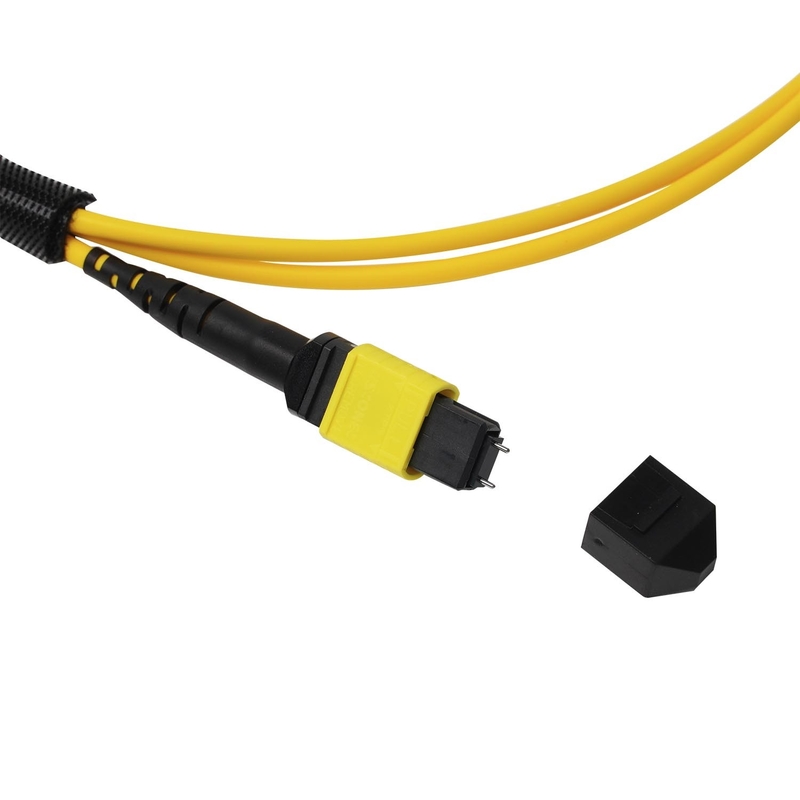

3.0mm Zirconia Ceramic MPO MTP Connector Heat Resistant Fiber Optic Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/DF |
| Certification: | ISO, CE, ROSH, REACH, CPR |
| Model Number: | TK-MPO-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Static bag+ carton box |
| Delivery Time: | 1-3 working days( according to quantity) |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 120,000-150,000 connectors per month |
|
Detail Information |
|||
| Durability: | ≤ 0.2dB | Cable Diameter: | 3.0mm |
|---|---|---|---|
| Product Name: | MPO MTP Fiber Optic Cable | Cable Jacket: | PVC/LSZH |
| Storage Temperature: | -40°C To +85°C | Return Loss: | ≥20dB |
| Insertion Loss: | ≤0.35dB | Connector Material: | Zirconia Ceramic |
| High Light: | Heat Resistant Fiber Optic Cable,MPO MTP Connector Fiber Optic Cable,Zirconia Ceramic MPO MTP Cable |
||
Product Description
Product Description:
One of the most important features of the MPO MTP Fiber Optic Cable is its high Return Loss value of ≥20dB. This ensures that the cable has minimal signal loss and provides a stable and reliable connection. The cable is made of high-quality materials and features Zirconia Ceramic Connectors that provide superior durability and performance. The connectors are designed for high-density applications and provide a secure and stable connection.
The MPO MTP Fiber Optic Cable features MPO/MTP connectors that are designed to enable quick and easy connections. The connectors are pre-terminated and are available in various configurations, including 24-fiber. This makes the cable suitable for use in a wide range of applications, including high-speed data transmission, video transmission, and more.
The MPO MTP Fiber Optic Cable is a reliable and high-performance cable that is designed to provide superior connectivity. Its multi-fiber termination push-on connectors, high return loss value, Zirconia ceramic connector material, and MPO/MTP connector type make it an ideal choice for high-density applications. It is suitable for use in data centers, telecom networks, and other high-speed networks.
Features:
- Product Name: MPO MTP Fiber Optic Patchcord
- Connector Type: MPO/MTP
- Multi-Fiber Push-On Termination
- Cable Diameter: 3.0mm
- Cable Color: Lime Green
- Operating Temperature: -20°C To +70°C
- Storage Temperature: -40°C To +85°C
- Multi-Fiber Termination Push-On Connectors
MPO MTP Patchcord Specification:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC, UPC, and APC | PC and APC | |
| Fiber type | SM(G652, G655, G657)；MM(OM1-OM5) | ||
| Core number | 12,24 | ||
| Cable Diameter | 0.9,2.0,3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC, LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length |
Customized |
||
Applications:
The TK-MPO-PC is an innovative product that provides a flexible and convenient cabling solution for connecting network switches, servers, and storage devices. This MPO MTP Fiber Optic Cable is designed to accommodate up to 24-fiber counts, making it ideal for high-speed data transmission applications. The cable diameter is 3.0mm, which is suitable for routing in tight spaces and high-density environments.
The TK-MPO-PC is made of high-quality zirconia ceramic, which ensures reliable and stable performance. The connector material is durable and resistant to wear and tear, making it ideal for frequent use. The cable color is lime green, making it easy to identify and trace in complex networking environments.
The TK-MPO-PC is designed to withstand extreme temperatures, with a storage temperature range of -40°C to +85°C. This makes it ideal for use in harsh environments, such as outdoor installations or in industrial settings.
The MPO MTP Fiber Optic Patchcord is suitable for a wide range of applications, including data centers, telecommunications networks, and CATV networks. It is also ideal for high-speed data transmission applications, such as 40G and 100G Ethernet.
In summary, the TK-MPO-PC MPO MTP Fiber Optic Patchcord from Takfly/DF is a reliable and efficient solution for various fiber optic applications. Its multi-fiber push on technology, high-quality connector material, and durable design make it ideal for use in high-density environments and harsh conditions. With its lime green cable color and 24-fiber count, it is a versatile product that can be used for a wide range of applications.
Support and Services:
The MPO MTP product technical support and services include:
- Assistance with product installation and setup
- Product troubleshooting and issue resolution
- Product training and education
- Product maintenance and repair services
- Product upgrades and enhancements
- Access to product documentation and resources
- 24/7 technical support and customer service
