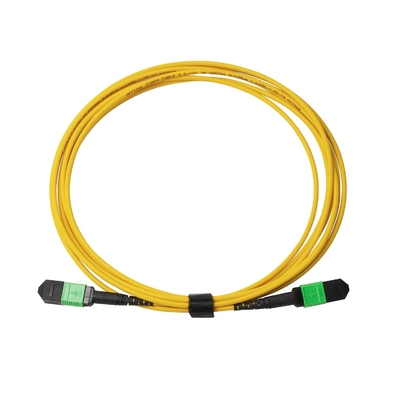

Single Mode Green MPO MTP Fiber Optic Cable for Dense Networks - Wide Temperature Range
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/DF |
| Certification: | ISO, CE, ROSH, REACH, CPR |
| Model Number: | TK-MPO-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Static bag+ carton box |
| Delivery Time: | 1-3 working days( according to quantity) |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 120,000-150,000 connectors per month |
|
Detail Information |
|||
| Fiber Type: | Single-Mode | Product Name: | MPO MTP Fiber Optic Cable |
|---|---|---|---|
| Cable Color: | Yellow | Insertion Loss: | ≤0.35dB |
| Return Loss: | ≥20dB | Cable Diameter: | 3.0mm |
| Storage Temperature: | -40°C To +85°C | Operating Temperature: | -20°C To +70°C |
| High Light: | Dense Networks MPO MTP Cable,Single Mode MPO MTP Cable,Wide Temperature Range MPO MTP Cable |
||
Product Description
Product Description:
The MPO MTP Fiber Optic Cable is made with premium quality materials that ensure superior durability and reliability in harsh environments. The cable jacket is made of Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) materials that provide excellent protection against fire and other hazards.
With a Durability of ≤ 0.2dB, the MPO MTP Fiber Optic Cable is highly resistant to wear and tear. It can withstand multiple bends, twists, and pulls without compromising its performance. This makes it ideal for applications that require high-speed data transfer, such as data centers, LAN/WAN connections, and other high-performance networks.

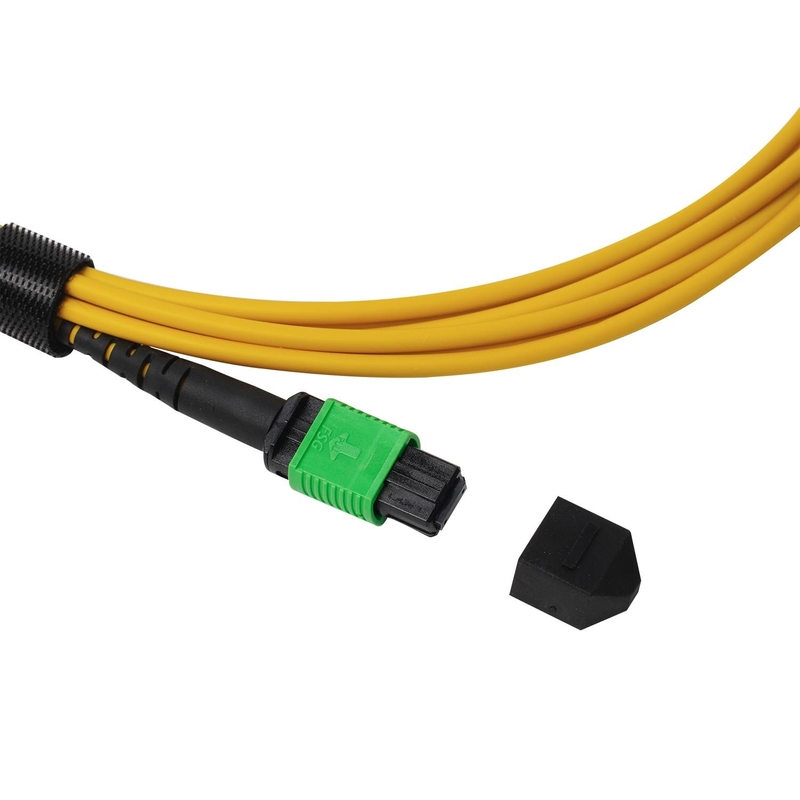

The MPO MTP Fiber Optic Cable comes with MPO/MTP connectors that provide a secure and reliable connection between multiple devices. These connectors are designed to facilitate Multi-Fiber Termination Push-On Adapter (MTP) connectivity, which enables multiple fibers to be terminated simultaneously. This feature makes the MPO MTP Fiber Optic Cable highly efficient and cost-effective.
The MPO MTP Fiber Optic Cable is a 24-fiber cable that provides exceptional performance for high-density applications. It offers a high bandwidth of up to 100Gbps, which makes it ideal for high-speed data transfer. The cable is available in different lengths, ranging from 1m to 100m, which makes it suitable for a wide range of applications.
In summary, the MPO MTP Fiber Optic Cable is a high-performance cable that provides exceptional connectivity for high-density applications. Its Multi-Fiber Push-On Connectors (MPO) or Multi-Fiber Push On (MTP) connectors, PVC/LSZH cable jacket, Durability of ≤ 0.2dB, MPO/MTP connectors, and 24-fiber count make it an ideal choice for data centers, LAN/WAN connections, and other high-performance networks.
Features:
- Product Name: MPO MTP Fiber Optic Cable
- Cable Length: 20m
- Connector Type: MPO/MTP Multi-Fiber Termination Push-On Connectors
- Return Loss: ≥20dB
- Cable Jacket: PVC/LSZH
- Cable Diameter: 3.0mm
MPO MTP Patchcord Specification:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC, UPC, and APC | PC and APC | |
| Fiber type | SM(G652, G655, G657)；MM(OM1-OM5) | ||
| Core number | 12,24 | ||
| Cable Diameter | 0.9,2.0,3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC, LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length |
Customized |
||
Applications:
One of the most common uses for the MPO MTP product is in data centers and network rooms. The MPO MTP Cable is an excellent choice for high-density applications, such as 40G and 100G Ethernet networks, where space is at a premium. The MPO MTP Cable can be used to connect multiple devices, such as servers, switches, and storage systems, with minimal downtime. The MPO MTP Fiber Optic Patchcord is designed to provide superior performance, reliability, and flexibility in these high-speed environments.
The MPO MTP product is also suitable for use in telecommunications and broadcast applications. The MPO MTP Cable can be used to transmit high-bandwidth signals over long distances, making it ideal for use in fiber-to-the-home (FTTH) networks and other high-speed data transmission applications. The MPO MTP Fiber Optic Patchcord can also be used in broadcast applications to distribute high-quality video and audio signals over long distances.
The MPO MTP product is also suitable for use in military and aerospace applications. The MPO MTP Cable can be used to transmit high-bandwidth signals over long distances, making it ideal for use in aircraft, ships, and other military and aerospace vehicles. The MPO MTP Fiber Optic Patchcord can also be used in military and aerospace applications to distribute high-quality video and audio signals over long distances.
In summary, the MPO MTP product is a versatile and reliable solution for a wide range of industries and applications. Whether you are working in data centers, telecommunications, broadcast, military, or aerospace, the MPO MTP product is the perfect choice for your high-speed data transmission needs.
Support and Services:
The MPO MTP product technical support and services include:
- Assistance with installation and configuration
- Troubleshooting and problem resolution
- Software and firmware updates
- Warranty and repair services
- Technical consultation for custom solutions
