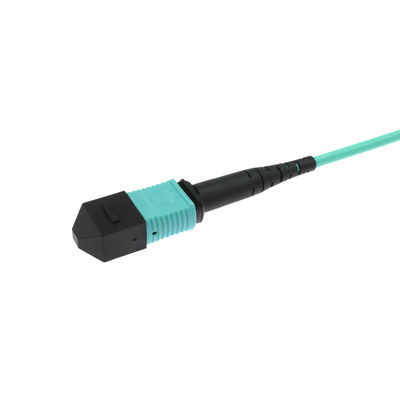

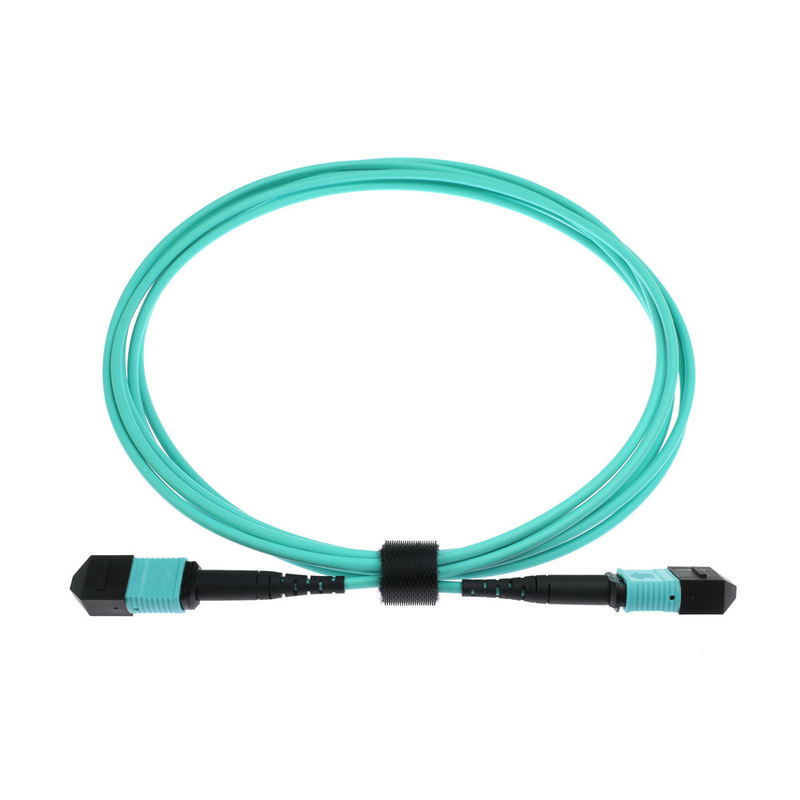

PVC/LSZH Multi Mode MPO MTP Fiber Optic Cable 20m Length with -20.C To 70.C Operating Temperature

PVC/LSZH Multi Mode MPO MTP Fiber Optic Cable 20m Length with -20.C To 70.C Operating Temperature

Product Details:

Place of Origin: China
Brand Name: Takfly/DF
Certification: ISO, CE, ROSH, REACH, CPR
Model Number: TK-MPO-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Can be negotiated
Packaging Details: Static bag+ carton box
Delivery Time: 1-3 working days( according to quantity)
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 120,000-150,000 connectors per month
Get Best Price Contact Now

Detail Information

Cable Length: 20m Operating Temperature: -20°C To +70°C
Cable Jacket: PVC/LSZH Return Loss: ≥20dB
Product Name: MPO MTP Fiber Optic Cable Storage Temperature: -40°C To +85°C
Connector Type: MPO/MTP Fiber Type: Multi-Mode
High Light:

20m MPO MTP Fiber Optic Cable

,

MPO MTP Fiber Optic Cable

,

Multi Mode MPO MTP Cable

Product Description

Product Description:

This cable has a fiber count of 24, which means it can transmit large amounts of data at a faster rate than traditional single-fiber cables. This makes it ideal for use in high-density environments where space is at a premium.

The MPO/MTP connector type is known for its ease of use and ability to reduce installation time. It has a push-pull latching mechanism that allows for quick and easy connection and disconnection. This connector type is also compatible with a wide range of other MPO/MTP equipment, making it a versatile choice for many different applications.

The cable is designed to withstand a wide range of temperatures, with a storage temperature range of -40°C to +85°C. This makes it suitable for use in both indoor and outdoor environments, where temperature fluctuations can be a concern.

The MPO/MTP Fiber Optic Cable has a return loss of ≥20dB, which ensures that the signal loss is kept to a minimum. This helps to ensure that data is transmitted accurately and reliably, without any signal degradation.

This cable has a length of 20m, making it a versatile choice for many different applications. It can be used to connect devices that are located far apart, without the need for additional connectors or extenders.

In summary, the MPO/MTP Fiber Optic Cable is a high-performance, reliable, and efficient solution for high-speed data center and telecommunications applications. It has a fiber count of 24, a MPO/MTP connector type, a storage temperature range of -40°C to +85°C, a return loss of ≥20dB, and a length of 20m. This cable is a versatile choice for many different applications, making it an ideal solution for any organization that requires a reliable and efficient way to transmit large amounts of data.



Features:

  • Product Name: MPO MTP Fiber Optic Cable
  • Cable Diameter: 3.0mm
  • Fiber Count: 24-fiber
  • Durability: ≤ 0.2dB
  • Storage Temperature: -40°C To +85°C
  • Features:
    • Multi-Fiber Termination Push-On Adapter
    • MPO MTP Fiber Optic Trunk Cable
    • Multi-Fiber Termination Push-On Adapter

MPO MTP Patchcord Specification:

Item LC,SC,ST,FC....... MPO/MTP
End face type PC, UPC, and APC PC and APC
Fiber type SM(G652, G655, G657);MM(OM1-OM5)
Core number 12,24
Cable Diameter 0.9,2.0,3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB) ≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength(nm)

SM:1310/1550

MM:850/1300

Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC, LSZH
Bending radius(Static/Dynamic) 10D/20D
Length

Customized

Applications:

With its Multi-Fiber Push-On Connectors, the TK-MPO-PC is perfect for high-density fiber optic applications such as data centers, server rooms, and telecommunications networks. Its 24-fiber capacity ensures that you get the bandwidth and connectivity you need, while its 3.0mm cable diameter makes it easy to install and manage.

Whether you're looking to upgrade your network infrastructure or simply need a reliable fiber optic cable for your data center, the TK-MPO-PC is the perfect choice. With its superior performance, durability, and versatility, this MPO MTP Fiber Optic Cable is sure to meet all your networking needs.

Designed and manufactured in China, the TK-MPO-PC is built to withstand extreme temperatures, from -20°C to +70°C, ensuring that it can perform reliably even in harsh environments. So why wait? Invest in the TK-MPO-PC today and experience the best in MPO MTP Fiber Optic Cable technology!



Support and Services:

The MPO/MTP product technical support and services include:

- Assistance with product installation, configuration, and troubleshooting

- Access to product user manuals, documentation, and firmware updates

- Onsite consultation and training services for product use and maintenance

- Customer support for any product-related issues or inquiries

- Warranty and repair services for defective products

- Customized solutions and product development services to meet unique customer needs
