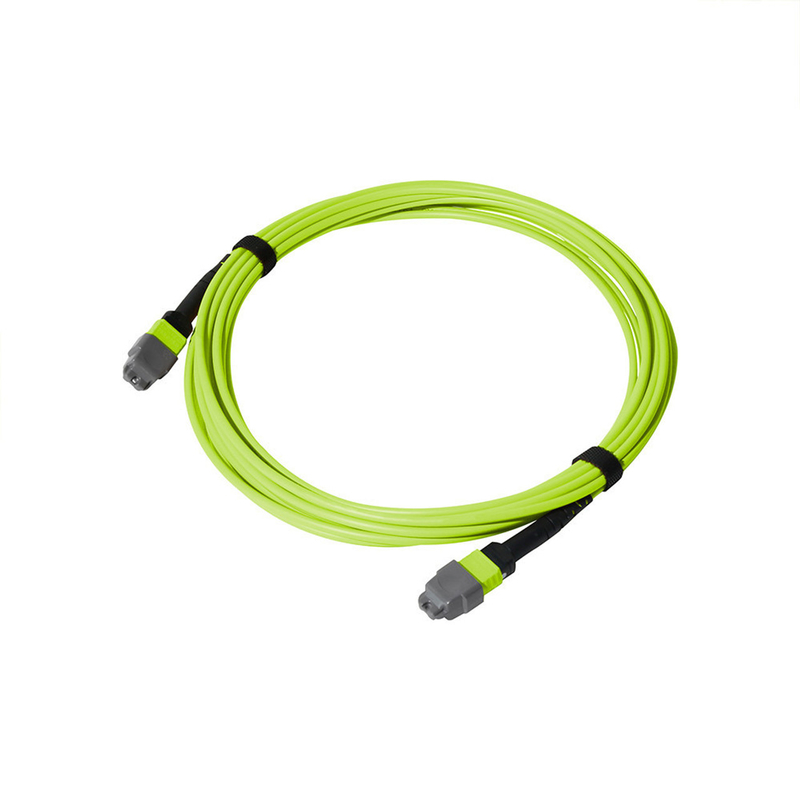

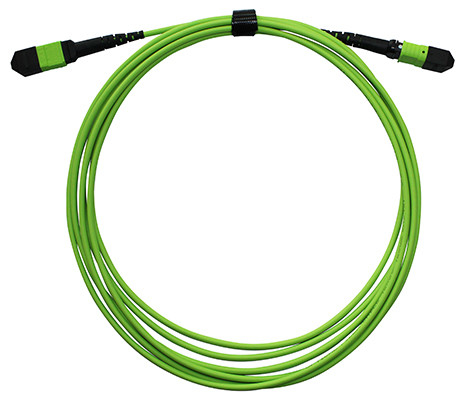

24-Fiber Multi Mode MPO MTP Fiber Optic Cable In Lime Green LSZH Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/DF |
| Certification: | ISO, CE, ROSH, REACH, CPR |
| Model Number: | TK-MPO-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Static bag+ carton box |
| Delivery Time: | 1-3 working days( according to quantity) |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 120,000-150,000 connectors per month |
|
Detail Information |
|||
| Storage Temperature: | -40°C To +85°C | Return Loss: | ≥20dB |
|---|---|---|---|
| Operating Temperature: | -20°C To +70°C | Cable Color: | Lime Green |
| Fiber Count: | 24-fiber | Product Name: | MPO MTP Fiber Optic Cable |
| Durability: | ≤ 0.2dB | Fiber Type: | Multi-Mode |
| Highlight: | LSZH MPO MTP Cable,24-Fiber MPO MTP Cable,Lime Green MPO MTP Cable |
||
Product Description
Product Description:
The MPO MTP Fiber Optic Cable is built with high-quality materials that ensure durability and reliability. It can operate in a wide range of temperatures, from -20°C to +70°C, making it suitable for use in various environments. The cable has a low insertion loss of ≤0.35dB, which ensures that the signal loss is minimal during transmission.
One of the key features of the MPO MTP Cable is its durability. The cable has a maximum durability of ≤0.2dB, which means that it can withstand multiple insertions and removals without affecting its performance. This makes it ideal for applications that require frequent changes or upgrades.
The MPO MTP Fiber Optic Trunk Cable also has a wide storage temperature range of -40°C to +85°C. This ensures that the cable can be stored safely in various conditions without affecting its performance. The cable is designed to meet the highest industry standards and is suitable for use in various applications, including data centers, enterprise networks, and telecommunications networks.
In summary, the MPO MTP Fiber Optic Trunk Cable is a high-quality, multi-mode fiber optic cable that is suitable for high-speed transmission up to 100Gbps. It has a low insertion loss of ≤0.35dB and a maximum durability of ≤0.2dB. The cable can operate in a wide range of temperatures, from -20°C to +70°C, and has a wide storage temperature range of -40°C to +85°C. It is a reliable and efficient solution for data centers, enterprise networks, and telecommunications networks.
Features:
- Product Name: MPO MTP Fiber Optic Patchcord
- Cable Diameter: 3.0mm
- Insertion Loss: ≤0.35dB
- Storage Temperature: -40°C To +85°C
- Fiber Count: 24-fiber
- Cable Color: Lime Green
- Features: Multi-Fiber Push-On Connectors
- Product Type: MPO MTP Fiber Optic Cable
MPO MTP Patchcord Specification:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC, UPC, and APC | PC and APC | |
| Fiber type | SM(G652, G655, G657)；MM(OM1-OM5) | ||
| Core number | 12,24 | ||
| Cable Diameter | 0.9,2.0,3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC, LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length |
Customized |
||
Applications:
The TK-MPO-PC is a versatile and flexible MPO MTP Fiber Optic Cable that is perfect for a range of different applications. Whether you need to connect servers or switches in a data center, or you need to extend your fiber optic network over long distances, the TK-MPO-PC is the ideal choice.
With a cable length of 20 meters, this product is perfect for medium to large installations. And with its MPO/MTP connector type, you can be sure that you're getting a reliable and secure connection every time. Plus, with its durability of ≤ 0.2dB, you can be sure that the TK-MPO-PC will provide excellent performance and longevity for years to come.
Some of the most common application occasions and scenarios for the TK-MPO-PC include:
- Data centers
- Telecommunications networks
- Enterprise networks
- Cloud computing
- Medical facilities
Whether you need a MPO MTP Fiber Optic Trunk Cable to connect multiple devices or a MPO MTP Fiber Optic Patchcord to extend your network, the TK-MPO-PC is the perfect choice. So why wait? Order your TK-MPO-PC today and experience the power and reliability of MPO MTP fiber optic technology!
Support and Services:
The MPO/MTP product is a high-density fiber optic connector that allows for quick and efficient installation in data centers and other high-speed networks. Our technical support and services include:
- Expert advice on product selection and installation
- On-site installation and maintenance services
- Training and certification for installers and technicians
- 24/7 customer support for technical issues
- Warranty and repair services
