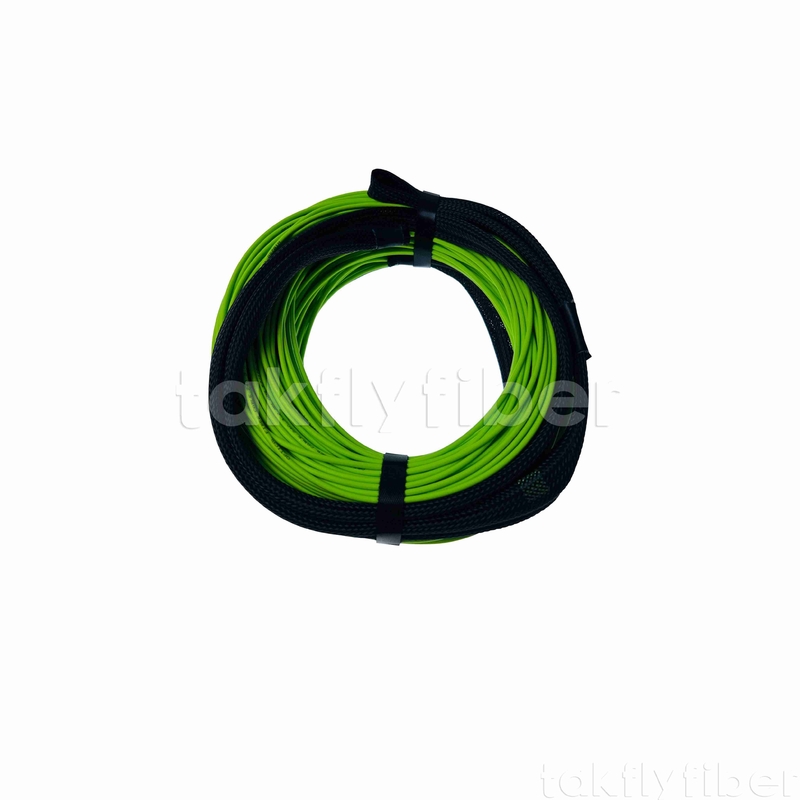

• 24 Fibers Om5 Mpo Trunk Cable Low Loss Female To Female In Type B Polarity With Pulling Eye
24 Fibers Om5 Mpo Trunk Cable Low Loss Female To Female In Type B Polarity With Pulling Eye

24 Fibers Om5 Mpo Trunk Cable Low Loss Female To Female In Type B Polarity With Pulling Eye

Product Details:

Place of Origin: China
Brand Name: Takfly/DF
Certification: CE/ROHS/REACH/CPR
Model Number: TK-MPO-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: US$0.01 ~US$159.99/PC
Packaging Details: Plastic Bag and Carton
Supply Ability: 5000PCS per Week
Get Best Price Contact Now

Detail Information

Cable Length: 50m Connector Material: Zirconia Ceramic
Cable Jacket: PVC/LSZH Durability: ≤ 0.2dB
Operating Temperature: -20°C To +70°C Storage Temperature: -40°C To +85°C
Cable Diameter: 3.0mm Connector Type: MPO/MTP
High Light:

24 fibers mpo trunk cable


om5 mpo trunk cable

Product Description

24 Fibers OM5 Low Loss Trunk cable Female to Female in type B polarity with Pulling Eye


Product Description:

MPO/ MTP is a very high-density fiber optic connector. It's only the double size of LC, but it can contain from 8 fibers to 72 fibers, which greatly saves the space for the data center. The MPO connection principle is as follows: the same core number connector must be connected (12 cores with 12 cores, 24 cores with 24 cores, etc.). One male connector should be connected with a female connector, and they must have the same polishing type (PC to PC, APC to APC). If both connectors are female MPO MTP connectors, then they cannot be connected. Additionally, PC polishing cannot be connected with APC polishing.

When choosing the MPO patch cord, users should be aware of the gender and polarity of the MPO MTP patch cord in your data center. For example, if the MPO MTP connector is a male type, then users should purchase a female type MPO MTP patch cord so that they can be connected together.



Commonly, round cable is 3.0mm in diameter. Apart from that, flat cables, 4.5mm double shealth cables and armoured cables can also be found. As for MPO/MTP patch cords, there are three types referred to as A type, B type and C typeaccording to the fiber arrangement.

Plus, there are two types of MPO/MTP Connectors, namely, male connector with pin and female connector without pin. As for the fiber type, it can vary from single-mode (G652D, G657A1, G657A2) to multi-mode (OM3, OM4, OM5).

Regarding the MPO/MTP connector, the insertion loss type can be divided into two types which are Standard and Elite/Low Loss. Moreover, it can have different fibre numbers, such as 4/8/12/16/24/32/48.


Technical Parameters:

Item LC/SC/ST/FC....... MPO/MTP
End face type PC/UPC/ APC PC/APC
Fiber Type SM(G652/G655/G657) , MM(OM1/OM2/OM3/OM4/OM5)
Core number 8/12/24
Cable Diameter 0.9/2.0/3.0

Mini Round cable: Max4.5mm;

Ribbon cable: Max3.0*5.0mm

Insertion loss (dB) ≤ 0.3

Standard: ≤0.35/0.7 (Typical/Max)

Low Loss: ≤0.2/0.35 (Typical/Max)

Return loss (Min)

UPC SM: 40dB

APC SM: 60 dB

PC MM: 25 dB


APC: 60dB



PC: 20dB

Test Wavelength (nm)

SM: 1310/1550

MM: 850/1300

Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC/LSZH
Bending radius (Static/Dynamic) 10D/20D
Length Customized


  1. Asynchronous Transmission Mode(ATM)
  2. Gigabit Ethernet
  3. Active Deviced/Transceiver Interface
  4. CATV, Video and Multimedia
  5. Premise Installations
  6. Telecommunication Networks
  7. Parallel optical interconnect between PC Cards and patch panels
  8. Interconnection for O/E modules
  9. Industrial & Military
  10. Optical Switch interframe connections

Support and Services:

MPO MTP Technical Support and Services

At MPO MTP, we are committed to providing reliable and responsive technical support and services to our customers.

Our technical support team is available 24/7 to assist with any technical inquiries or issues that you may have. We have a comprehensive knowledge base available online, which provides helpful information and solutions for common questions and problems. We also offer personalized technical support through phone, email, and online chat.

We also offer a variety of services such as on-site installation and training, as well as maintenance and repair services. Our experienced and knowledgeable technicians are able to provide fast and reliable service to ensure that your MPO MTP product is running at peak performance.

We are dedicated to providing the highest level of customer service and satisfaction. If you have any questions or concerns, don't hesitate to contact us. We look forward to helping you get the most out of your MPO MTP product!



Q1: What is MPO MTP?

A1: MPO MTP is a type of multi-fiber optical connector developed by Takfly/DF. It is represented by the model number TK-MPO-PC and originates from China.

Q2: What are the advantages of MPO MTP?

A2: MPO MTP offers increased density, faster installation time, improved cable management, and better optical performance compared to traditional fiber connectors.

Q3: What types of applications is MPO MTP suitable for?

A3: MPO MTP is suitable for applications such as high-density data center networks, fiber-to-the-home cabling, and backbone cabling.

Q4: Is MPO MTP compatible with traditional fiber connectors?

A4: Yes, MPO MTP is compatible with traditional single-fiber connectors such as LC, SC, ST, and FC.

Q5: Is MPO MTP available in different colors?

A5: Yes, MPO MTP is available in a variety of colors, such as blue, green, and black.
