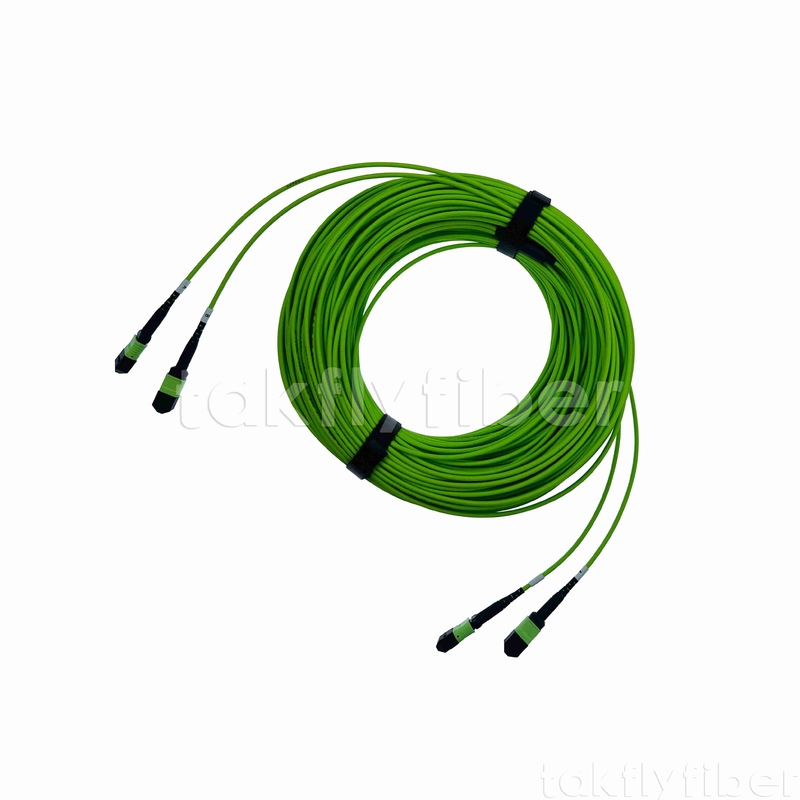

• 2 X 12f Mpo Mtp Patch Cord 3.0mm Om5 Lime Green For High Speed Data Center Networking
2 X 12f Mpo Mtp Patch Cord 3.0mm Om5 Lime Green For High Speed Data Center Networking

2 X 12f Mpo Mtp Patch Cord 3.0mm Om5 Lime Green For High Speed Data Center Networking

Product Details:

Place of Origin: China
Brand Name: Takfly/DF
Certification: CE/ROHS/REACH/CPR
Model Number: TK-MPO-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$0.01 ~US$159.99/PC
Packaging Details: Plastic Bag and Carton
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS per Week
Get Best Price Contact Now

Detail Information

Fiber Count: 24-fiber Product Name: MPO MTP
Cable Color: Lime Green Insertion Loss: ≤0.35dB
Fiber Type: Multi-Mode Operating Temperature: -20°C To +70°C
Cable Diameter: 3.0mm Return Loss: ≥20dB
High Light:

2 x 12f mtp patch cord


3.0mm mtp patch cord


data center mpo fiber patch cord

Product Description

2 x 12F MPO MTP Fiber Optic Patchcord 3.0mm Cable OM5 Lime Green for High Speed Data Center Networking


Product Description:

MPO/ MTP is a very high-density fiber optic connector that is double the size of an LC while having the capacity to contain from 8 fibers to 72 fibers. This makes it an extremely space-saving solution for data centers.
The connection principle is that the same core number connector must be connected. This means 12 cores with 12 cores, 24 cores with 24 cores, etc. Male connectors must be mated with female connectors with the same polishing types - either PC to PC or APC to APC. Female MPO MTP connectors cannot be connected and PC polishing cannot be connected to APC polishing.
When choosing an MPO patch cord, you should know the gender and polarity of the MPO MTP connectors in your data center. For example, if the MPO MTP connector is a male type then you must purchase a female type MPO MTP patch cord in order for them to be connected together.



  1. Cable diameter normally is 3.0mm round cable. Other types are available, such as flat cable, 4.5mm double shealth cable, armored cable and so on.
  2. Connector Types
  3. MPO/MTP patch cord has 3 types of fiber arrangements, A type, B type, and C type. Connectors come in male and female styles. MTP/MPO Female connectors are without PIN, while MPO male connectors come with PIN.
  4. Fiber Types
  5. Fiber type can be single-mode (G652D, G657A1, G657A2) or multi-mode (OM3, OM4, OM5).
  6. Insertion Loss Type
  7. MPO/MTP connectors had different insertion loss types available, including Standard and Elite/Low Loss.
  8. Fibers per Connector
  9. MPO/MTP connectors come in 4, 8, 12, 16, 24, 32 and 48 fiber versions.

Technical Parameters:

End face typePC/UPC/ APCPC/APC
Fiber typeSM(G652/G655/G657) , MM(OM1/OM2/OM3/OM4/OM5)
Core number8/12/24
Cable Diameter0.9/2.0/3.0

Mini Round cable: Max4.5mm;

Ribbon cable: Max3.0*5.0mm

Insertion loss (dB)≤ 0.3

Standard: ≤0.35/0.7 (Typical/Max)

Low Loss: ≤0.2/0.35 (Typical/Max)

Return loss (Min)

UPC SM: 40dB

APC SM: 60 dB

PC MM: 25 dB


APC: 60dB



PC: 20dB

Test Wavelength (nm)

SM: 1310/1550

MM: 850/1300

Repeatability≤ 0.1dB
Durability≤ 0.2dB
Interchangeability≤ 0.2dB
Operating Temperature-20℃~70℃
Storage Temperature-40℃~80℃
Outer Sheath MaterialPVC/LSZH
Bending radius (Static/Dynamic)10D/20D


  • Asynchronous Transmission Mode (ATM)
  • Asynchronous Transmission Mode (ATM) is a form of communication which supports multiple types of signals on digital transmission networks, including voice, video, and multimedia. ATM is commonly used for telecommunication networks and premise installations, like in CATV, video, and multimedia. ATM also provides increased bandwidth by transmitting more data at higher speeds than other communication technologies.
  • Gigabit Ethernet
  • Gigabit Ethernet is a form of computing which is capable of transmitting data between PCs and servers at speeds up to 1 gigabit per second. It provides a large amount of bandwidth and is suitable for multimedia applications that require high amounts of data, such as video streaming or web conferencing. This technology is typically used in server-to-server communications.
  • Active Device/Transceiver Interface
  • Active Device/Transceiver Interface technology is used on communications networks. This technology makes a connection between two devices, and allows data to be transferred over a specific line. This is commonly used for connecting two devices in a parallel optical interconnect, such as a PC Card and patch panel, or connecting O/E modules for interconnection. This technology is useful for industrial and military applications, as well as optical switch interframe connections.

Support and Services:

MPO MTP Technical Support and Service

At MPO MTP, we strive to provide our customers with the highest quality technical support and service.
Our team of expert engineers is available 24/7 to answer any questions and address any issues that may arise. We offer support by phone, email, and live chat, so you can always get the help you need.
We also provide a variety of helpful documentation and tutorials to help you get the most out of your MPO MTP product. These include user manuals, installation guides, and troubleshooting tips.
For more information, please visit our support page.



Q1:What is Takfly/DF TK-MPO-PC?

A1:Takfly/DF TK-MPO-PC is an MPO MTP product made in China.

Q2:What is the advantage of Takfly/DF TK-MPO-PC?

A2:Takfly/DF TK-MPO-PC offers a high performance and ensures reliable transmission. It is also very durable and can be used in a wide range of applications.

Q3:What is the application of Takfly/DF TK-MPO-PC?

A3:Takfly/DF TK-MPO-PC is used for interconnection between optical fibers in data centers, telecommunication networks, and other related applications.

Q4:What is the operating temperature range of Takfly/DF TK-MPO-PC?

A4:The operating temperature range of Takfly/DF TK-MPO-PC is -25°C to +70°C.

Q5:Does Takfly/DF TK-MPO-PC support customization?

A5:Yes, Takfly/DF TK-MPO-PC supports customization. We can customize the product according to customer's requirements.
