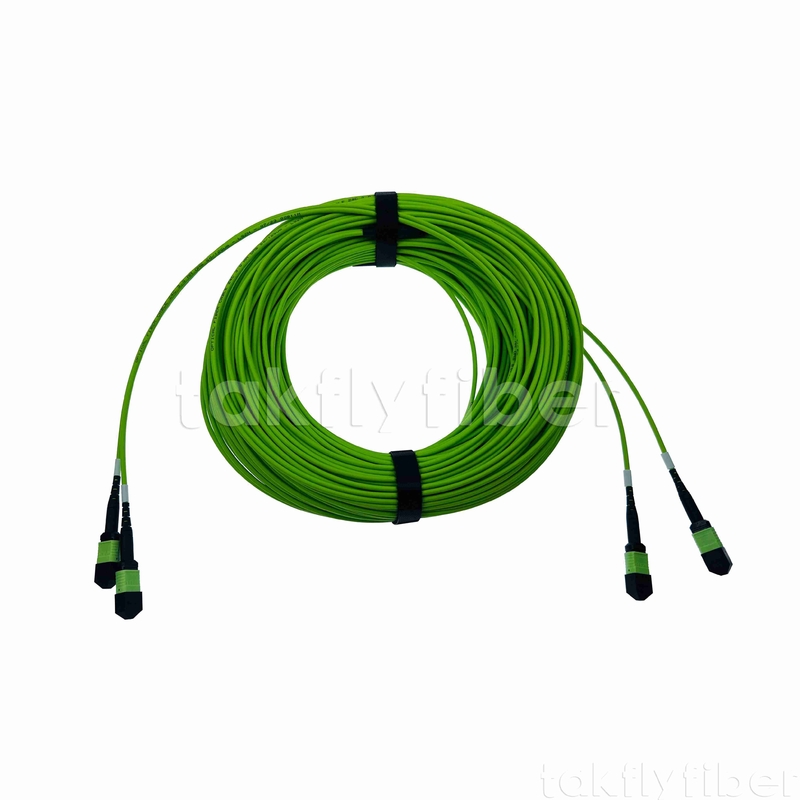

24 Cores Om5 Mpo Mtp Fiber Optic Cable 0.35db Low Loss For High Speed Networking
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/DF |
| Certification: | CE/ROHS/REACH/CPR |
| Model Number: | TK-MPO-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | US$0.01 ~US$139.99/PC |
| Packaging Details: | Plastic Bag and Carton |
|
Detail Information |
|||
| Product Name: | MPO MTP | Fiber Type: | Multi-Mode |
|---|---|---|---|
| Durability: | ≤ 0.2dB | Cable Length: | Customized |
| Cable Color: | Lime Green | Cable Diameter: | 3.0mm |
| Storage Temperature: | -40°C To +85°C | Return Loss: | ≥20dB |
| High Light: | 24 cores mtp fiber optic cable,om5 mtp fiber optic cable,24 cores mpo fiber optic cable |
||
Product Description
0.35dB Low Loss 24 Cores OM5 MPO MTP Fiber Optic Cable for High-Speed Networking
Product Description:
MPO/MTP is an incredibly high-density fiber optic connector, its size is double the size of LC, but it can contain up to seventy-two fibers! It greatly reduces the physical space for data centers.
When connecting the MPO connections, it is important to ensure that the connectors being connected are of the same core configuration (e.g. 12 cores with 12 cores or 24 cores with 24 cores). Furthermore, it is essential to match the same polishing type of connectors, with either PC or APC. Additionally, if both connectors are female, they will not be able to be connected. Furthermore, it is essential to ensure that PC polished connectors are not connected with APC polished connectors.
When selecting your MPO patch cord, it is best to determine the gender and the polarity of the MPO MTP patch cord in your data center.Once you’ve identified this information, you can then buy a patch cord that will be able to connect the two MPs together, for example, if the MPO MTP connector is a male type, you will need to purchase a female type MPO MTP patch cord.
Features:
Cable diameter normal is 3.0mm round cable, however we offer more options like flat cable, 4.5mm double shealth cable and armoured cable.
When it comes to MPO/MTP patch cord types, we have A type, B type, and C type (fiber arrangement). Both male and female connectors are available, the female one comes without PIN whereas the male version with PIN.
Regarding fiber types, we have the choice between single-mode (G652D, G657A1, G657A2) and multi mode (OM3, OM4, OM5). The MPO/MTP types have been split up into 4/8/12/16/24/32/48 fiber and two different types for insertion loss are present, Standard and Elite / Low Loss.
Technical Parameters:
| Item | LC/SC/ST/FC | MPO/MTP | |
| End face type | PC/UPC/ APC | PC/APC | |
| Fiber type | SM(G652/G655/G657) , MM(OM1/OM2/OM3/OM4/OM5) | ||
| Core number | 8/12/24 | ||
| Cable Diameter | 0.9/2.0/3.0 |
Mini Round cable: Max4.5mm; Ribbon cable: Max3.0*5.0mm |
|
| Insertion loss (dB) | ≤ 0.3 |
Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
|
| Return loss (Min) |
UPC SM: 40dB APC SM: 60 dB PC MM: 25 dB |
SM: APC: 60dB
|
MM: PC: 20dB |
| Test Wavelength (nm) |
SM: 1310/1550 MM: 850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC/LSZH | ||
| Bending radius (Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
Applications:
.- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
