• Mpo Mtp Connector Micro Fiber Optic Cable 3.0mm Om5 24 Cores
Mpo Mtp Connector Micro Fiber Optic Cable 3.0mm Om5 24 Cores

Mpo Mtp Connector Micro Fiber Optic Cable 3.0mm Om5 24 Cores

Product Details:

Place of Origin: China
Brand Name: Takfly/DF
Certification: CE/ROHS/REACH/CPR
Model Number: TK-MPO-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: US$0.01 ~US$139.99/PC
Packaging Details: Plastic Bag and Carton
Get Best Price Contact Now

Detail Information

Cable Diameter: 3.0mm Fiber Type: Multi-Mode
Insertion Loss: ≤0.35dB Durability: ≤ 0.2dB
Cable Color: Lime Green Operating Temperature: -20°C To +70°C
Storage Temperature: -40°C To +85°C Connector Type: MPO/MTP
High Light:

mtp connector micro fiber optic cable


24 cores micro fiber optic cable


mpo connector micro fiber cable

Product Description

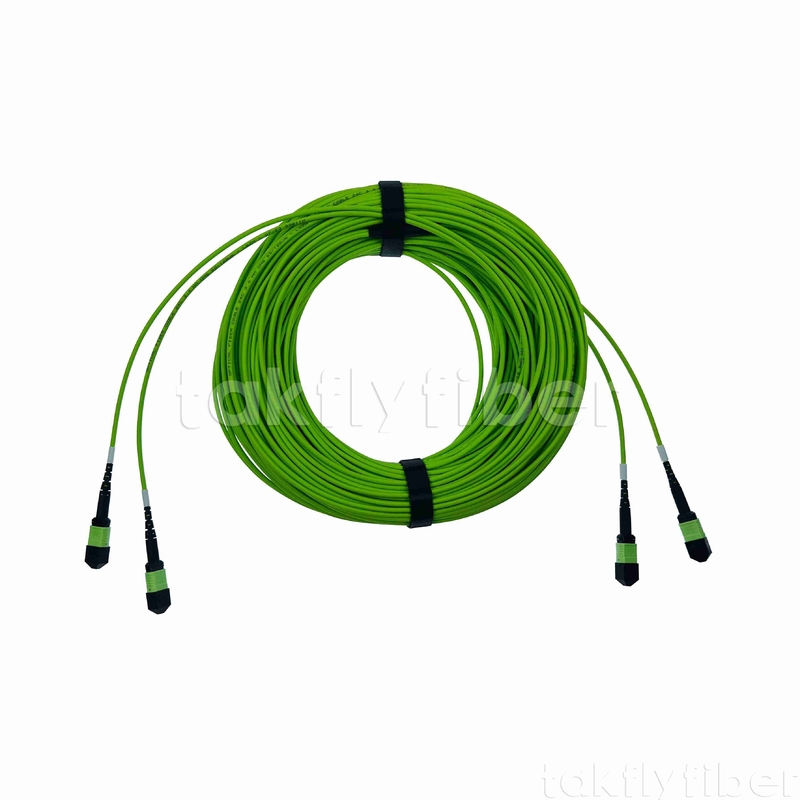

MPO MTP Connector 3.0mm OM5 24 Cores Micro Fiber Optic Cable for Data Centre Application



Product Description:

The MPO/MTP is an extremely high-density fiber optic connector with double the size of an LC. It can hold up to eight to seventy-two fibers, making the MPO/MTP an ideal connector for use in data centers to save on space.

To make a connection, the same core number connector must be used — for example, 12 cores with 12 cores, 24 cores with 24 cores — and the connector must also be of the same gender; a male connector with female connector only. Additionally, these connectors must be of the same polishing type; PC-to-PC polishing or APC-to-APC polishing for proper connection. Can’t be connected are two female connectors, as well as PC polishing and APC polishing.

It is important to take these things into consideration when selecting and using MPO patch cords. For instance, if the MPO connector is a male type, then a female type MPO patch cord must be used to successfully form the connection.



Cable diameter normal is 3.0mm round cable, but we also offer flat cable, 4.5mm double shealth cable, and armoured cable.


The available MPO/MTP patch cord types are A, B, and C (which refer to the fiber arrangement).


MTP/MPO connectors are available in both male and female varieties, with the female type having no pins, and the male version with pins.


Fiber type options exist for single-mode (which cover G652D, G657A1, and G657A2 variants) and multi mode (which cover OM3, OM4, and OM5).


MPO MTP connectors’ insertion loss type comes in two varieties: standard and elite / low loss.


Lastly, MPO/MTP connector types have a range of fiber counts spanning 4, 8, 12, 16, 24, 32, and 48.


Technical Parameters:

End face type PC/UPC/ APC PC/APC
Fiber type SM(G652/G655/G657) , MM(OM1/OM2/OM3/OM4/OM5)
Core number 8/12/24
Cable Diameter 0.9/2.0/3.0

Mini Round cable: Max4.5mm;

Ribbon cable: Max3.0*5.0mm

Insertion loss (dB) ≤ 0.3

Standard: ≤0.35/0.7 (Typical/Max)

Low Loss: ≤0.2/0.35 (Typical/Max)

Return loss (Min)

UPC SM: 40dB

APC SM: 60 dB

PC MM: 25 dB


APC: 60dB



PC: 20dB

Test Wavelength (nm)

SM: 1310/1550

MM: 850/1300

Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC/LSZH
Bending radius (Static/Dynamic) 10D/20D
Length Customized


  1. Asynchronous Transmission Mode(ATM)
  2. Gigabit Ethernet
  3. Active Deviced/Transceiver Interface
  4. CATV, Video and Multimedia
  5. Premise Installations
  6. Telecommunication Networks
  7. Parallel optical interconnect between PC Cards and patch panels
  8. Interconnection for O/E modules
  9. Industrial & Military
  10. Optical Switch interframe connections

Support and Services:

MPO MTP Technical Support and Service

We offer technical support and service for MPO MTP products. Our technical team is here to help you get the most out of your MPO MTP product. We can provide you with product information, installation help, troubleshooting tips, and other technical support.

We also offer product warranties, repairs, and replacements for MPO MTP products. If you experience any issues with your MPO MTP product, please contact us for assistance.

Our technical support and service team is here to help you get the most out of your MPO MTP product. If you have any questions, please don't hesitate to contact us.



  • Q: What is the product name?
    A: The product name is Takfly/DF TK-MPO-PC MPO MTP.
  • Q: Where does the product come from?
    A: The product comes from China.
  • Q: What is the purpose of the product?
    A: The purpose of the product is to provide a reliable connection between two devices.
  • Q: What are the features of Takfly/DF TK-MPO-PC MPO MTP?
    A: Takfly/DF TK-MPO-PC MPO MTP features a high-speed and stable performance, low insertion loss, and high return loss.
  • Q: What types of devices can Takfly/DF TK-MPO-PC MPO MTP be used with?
    A: Takfly/DF TK-MPO-PC MPO MTP can be used with a variety of devices such as fiber switches, routers, and patch panels.
