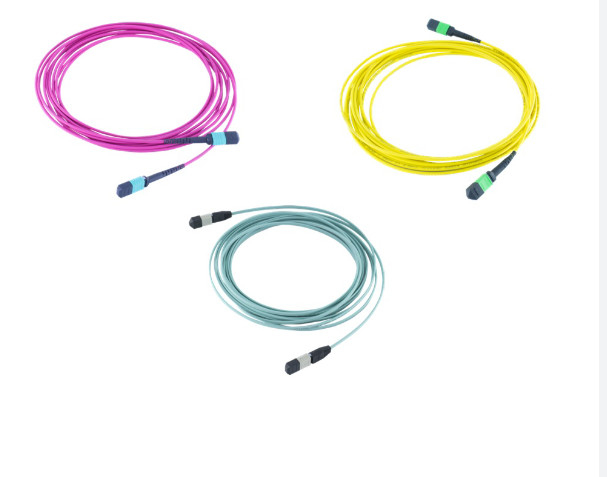

Mpo Mtp Om3 Om4 Fiber Optic Cable Multi Mode
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Model Number: | MPO/MTP |
|
Detail Information |
|||
| Storage Temperature: | -40℃~+85℃ | Fiber Mode: | Multi Mode |
|---|---|---|---|
| Application: | Data Center | Product Name: | MPO MTP |
| Insertion Loss: | ≤0.2dB | Fiber Count: | 12 |
| Connector Polarity: | Type A/Type B/Type C | Return Loss: | ≥20dB |
| High Light: | multi mode om4 fiber optic cable,data center om4 fiber optic cable,multi mode om4 fiber cable |
||
Product Description
Product Description:
MPO connectors enable multichannel fiberless transmission and reduce the size of a connector interface, boasting the backing of integrated cabling design standards ISO/IEC 24764 and ANSI/TIA-568-C.
In the Internet of Things era, the use of new technologies in data centers is commonplace. To save double the space or more, data centers use MPO / MTP patchcord, a patchcord that is only double the size of an LC patchcord, making it a much denser fiber optic connection.
MPO connections must match the correct core count and come with opposite polarity (male and female). Additionally, both connectors must possess the same type of polishing (PC or APC). Female connectors cannot be connected together unless they possess the same polarity.
When selecting an MPO patchcord, first determine the gender and polarity of the required connector for the data center. For example, if the expected connector is male, an accompanying female patchcord must be purchased.
Features:
Our MT ferrules are molded with utmost precision. High precision guide pins are finely crafted to ensure exact alignment of fiber optic terminations. Moreover, the sizes available in our compact designs includes options up to 4, 8, 12, and 24 fibers. We make sure that these products are compliant with IEC 61754-7 and EIA/TIA-604-5 standards.
Technical Parameters:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC,UPC and APC | PC and APC | |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) | ||
| Core number | 12,24 | ||
| Cable Diameter | 0.9,2.0,3.0 | Mini Round cable:Max4.5mm； | |
| Ribbon cable:Max3.0*5.0mm | |||
| Insertion loss(dB) | ≤ 0.3 | Standard:≤0.35/0.7(Typical/Max) | |
| Low Loss:≤0.2/0.35(Typical/Max) | |||
| Return loss(Min) | UPC SM:40dB | SM: | MM: |
| APC SM:60 dB | APC:60dB | PC:20dB | |
| PC MM:25 dB | |||
| Test Wavelength(nm) | SM:1310/1550 | ||
| MM:850/1300 | |||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC,LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
Application:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video, and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnects between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Customization:
Brand Name: Takfly/OEM
Model Number: MPO/MTP
Place of Origin: Shenzhen, China
Insertion Loss: ≤0.2dB
Fiber Type: OM3/OM4
Application: Data Center
Cable Type: Round/Ribbon
Connector Polarity: Type A/Type B/Type C
The Takfly/OEM MPO/MTP Fiber Optic Trunk Cable is an excellent solution for Data Center applications. It guarantees an insertion loss of ≤0.2dB and is available in OM3/OM4 fiber type. It comes in Round/Ribbon cable type and offers Type A/Type B/Type C connector polarity. The Multi-Fiber Termination Push-On Adapter makes it easy to connect and disconnect and the MPO MTP Cable Assembly ensures the highest quality standards.
Support and Services:
At MPO MTP, we provide comprehensive technical support and service for all of our products. We offer both telephone and online technical support, as well as on-site service for any hardware issues.
Our technical support team is available 24/7 to answer any questions you may have about our products. We are dedicated to providing you with the best support possible, ensuring that your experience with our products is as seamless and enjoyable as possible.
In addition to our technical support, we also offer a wide range of services, such as installation, training, and maintenance. Our team of experienced professionals can help ensure that your product is installed correctly and is functioning properly.
At MPO MTP, we strive to provide the highest quality technical support and service for all of our products. If you have any questions or need any assistance, please do not hesitate to contact us.
Packing and Shipping:
Packaging and Shipping for MPO MTPMPO MTP products are packaged in ESD bags for shipping. All orders are shipped via FedEx, UPS, or DHL Express. We also offer special shipping options such as rush delivery and international shipping.
To ensure that your order arrives safely and in perfect condition, we use only the highest quality materials and the most secure packaging methods. Our packaging staff is trained to properly package and protect your order from damage during transit.
FAQ:
- Q: What is Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP is a high-performance connector that is used in fiber optic cabling systems. It is manufactured in Shenzhen, China.
- Q: What are the benefits of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP offers a number of benefits, including superior performance, increased density, and cost savings.
- Q: What types of applications can Takfly/OEM MPO/MTP be used for?
- A: Takfly/OEM MPO/MTP can be used for a variety of applications, including data centers, telecommunications, and other high-density cabling systems.
- Q: What are the advantages of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP offers several advantages, including improved speed, increased reliability, and higher density.
- Q: What is the warranty for Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP comes with a one-year warranty.
