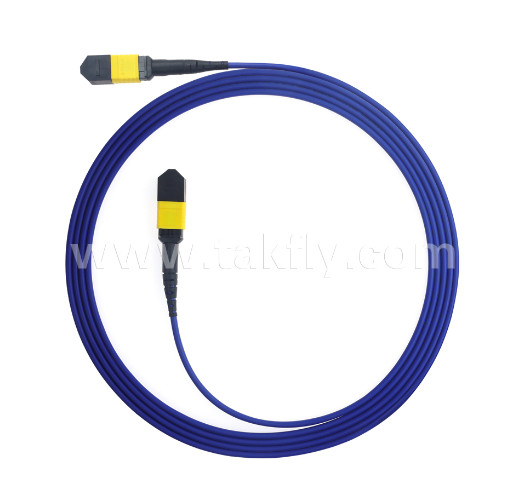

Mpo Mtp 12 Fiber Optical Patch Cord Multimode
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Model Number: | MPO/MTP |
|
Detail Information |
|||
| Storage Temperature: | -40℃~+85℃ | Cable Length: | Optional |
|---|---|---|---|
| Connector Type: | MPO/MTP | Connector Polarity: | Type A/Type B/Type C |
| Fiber Count: | 12 | Product Name: | MPO MTP |
| Fiber Mode: | Multi-mode | Insertion Loss: | ≤0.35dB |
| High Light: | 12 fiber optical patch cord,multimode fiber optical patch cord,mpo mtp multimode patch cord |
||
Product Description
Product Description:
MPO connectors can reduce the size of one connector interface, and support fiber transmission of more than two cores. They are listed in standards ISO/IEC 24764 and ANSI/TIA-568-C as recommended types. With the rising of the Internet of Things, data centers are embracing new technologies.
MPO/MTP patchcords are only double the size of LC-type connectors. They occupy far less space in the data center, thus enabling more efficient transmission. The MPO connection needs to be the same count of cores (eg. 12 cores to 12 cores, 24 cores to 24 cores etc). Furthermore, their connecting polarity needs to be different with one male connector connecting to one female. Besides, PC and APC polishing type cannot be combined.
When picking the MPO patch cord, you need to pay attention to the gender and polarity of the MPO/MTP patch cord in your data center. If one of the connectors is male, purchase a female version to complete the connection. Additionally, make sure that both connections are of the same PC/APC polishing type.
Features:
Molded MT ferrules provide durable and precise connection points for fiber cables for up to 24 fibers. Compactly designed, hose MT ferrules improve efficiency of fiber optic cabling and reliable connectivity between cable ends. Furthermore, these ferrules feature high precision guide pins that ensure exact alignment between cable ends. Additionally, these MT ferrules are compliant to both IEC 61754-7 and EIA/TIA-604-5 standards.
Designed for fast installation and long-term faultless connections, MT connectors are perfect for high-density cabling jobs. These connectors provide maximum protection against moisture, dust, and other contaminants, and their simple design enables easy in-field maintenance. MT connectors are a great addition to any fiber cabling job, and their ability to optimize the cable installation process makes them an ideal choice for any fiber cabling installation.
Technical Parameters:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC,UPC and APC | PC and APC | |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) | ||
| Core number | 12,24 | ||
| Cable Diameter | 0.9,2.0,3.0 | Mini Round cable:Max4.5mm； | |
| Ribbon cable:Max3.0*5.0mm | |||
| Insertion loss(dB) | ≤ 0.3 | Standard:≤0.35/0.7(Typical/Max) | |
| Low Loss:≤0.2/0.35(Typical/Max) | |||
| Return loss(Min) | UPC SM:40dB | SM: | MM: |
| APC SM:60 dB | APC:60dB | PC:20dB | |
| PC MM:25 dB | |||
| Test Wavelength(nm) | SM:1310/1550 | ||
| MM:850/1300 | |||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC,LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
Application:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video, and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnects between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Customization:
Takfly/OEM Multi-Fiber Push-On Connectors, MPO MTP Fiber Optic Patchcord and Cable Assembly, provide a reliable and cost-effective solution to high density data center applications. This MPO/MTP Fiber Optic Patchcord and Cable Assembly features with Brand Name Takfly/OEM, Model Number MPO/MTP, Place of Origin Shenzhen, China, Operating Temperature -40℃~+85℃, Cable Type Round/Ribbon, Cable Jacket PVC/LSZH, Connector Polarity Type A/Type B/Type C, Application Data Center.
Our MPO/MTP Fiber Optic Patchcord and Cable Assembly are manufactured to the highest standards and rigorously tested prior to shipment. All of our products are RoHS compliant and Telcordia GR-326-CORE compliant.
Whether your application requires tight bending radius, extreme temperature, or simply just a high-end fiber optic patchcord for your data center, Takfly/OEM will be able to meet your needs. We believe that our MPO/MTP Fiber Optic Patchcord and Cable Assembly are the best solution for your data center applications.
Support and Services:
MPO MTP products are supported by our experienced and knowledgeable in-house technical team. Our technical experts are available to assist with any questions or issues you may have.
We offer a range of services to ensure your MPO MTP products are running smoothly, including:
- Installation and setup of MPO MTP products
- Troubleshooting of any technical issues
- Upgrades and maintenance
- On-site technical support
- Phone and online technical support
For any questions or assistance, please contact us on our technical support line or use our online form.
Packing and Shipping:
Packaging and Shipping for MPO MTP:
- The product will be placed in an anti-static bag or box.
- The product will be securely sealed to protect it from damage during shipping.
- The product will be shipped in a sturdy cardboard box.
- The box will be marked with the product name and part number to ensure proper identification.
- The box will be labeled with appropriate shipping information.
FAQ:
- Q: What is Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP is a high-performance optical fiber interconnection product, which is made of imported materials and has high transmission performance. It is produced in Shenzhen, China.
- Q: What are the advantages of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP has high transmission performance, high reliability, high density, small size and low insertion loss.
- Q: What are the application fields of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP is widely used in telecommunications, optoelectronic integration, data center, security monitoring, etc.
- Q: What is the warranty period of Takfly/OEM MPO/MTP?
- A: Takfly/OEM provides one year warranty for all MPO/MTP products.
- Q: What is the minimum order quantity of Takfly/OEM MPO/MTP?
- A: Takfly/OEM requires a minimum order quantity of 10 pieces for MPO/MTP products.
