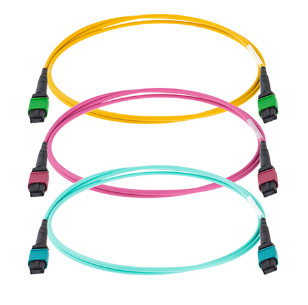

72 Cores Mpo Mtp Fiber Patch Cord For ATM Using

72 Cores Mpo Mtp Fiber Patch Cord For ATM Using

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Model Number: MPO/MTP
Get Best Price Contact Now

Detail Information

Return Loss: ≥20dB Fiber Mode: Multi-mode
Cable Length: Optional Storage Temperature: -40℃~+85℃
Insertion Loss: ≤0.35dB Connector Polarity: Type A/Type B/Type C
Cable Type: Round/Ribbon Durability: ≥500 Times
High Light:

72 cores fiber patch cord


ATM fiber patch cord


72 cores fiber optic patch cable

Product Description

Product Description:

MPO connectors are a reliable connection type for transmitting data above 2 cores, and are favoured by the standards ISO/IEC 24764 and ANSI/TIA-568-C. As we enter into the era of the Internet of Things, their popularity in data centers is increasing due to their capability of handling multi-core fiber, and helping to reduce connector size and double the amount of data transmission.


MPO / MTP patch cords need only double the amount of room as an LC connector does. They can contain between 4, 8, 12, 24, 36 and 72 cores, depending on the desired transmission rate and cable length. It is crucial to take into account the gender and polarity of the MPO MTP connector when selecting the patch cord. They must always be the same fiber count (12 cores to 12 cores, 24 cores to 24 cores, etc.), and the different connectors must have opposite polarity (i.e., a male connector must be connected with a female connector). Furthermore, the PC polishing should never be connected with APC polishing.



The Precision Molded MT ferrule can provide customers with accurate alignment. It employs high precision guide pins to ensure that the ferrule is precisely aligned with every use. Additionally, its compact design is available in configurations of up to 4, 8, 12 and 24 fibers. It is compliant with the IEC 61754-7 and EIA/TIA-604-5 specifications.


Technical Parameters:

Item LC,SC,ST,FC....... MPO/MTP
End face type PC,UPC and APC PC and APC
Fiber type SM(G652,G655,G657);MM(OM1-OM5)
Core number 12,24
Cable Diameter 0.9,2.0,3.0 Mini Round cable:Max4.5mm;
Ribbon cable:Max3.0*5.0mm
Insertion loss(dB) ≤ 0.3 Standard:≤0.35/0.7(Typical/Max)
Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min) UPC SM:40dB SM: MM:
APC SM:60 dB APC:60dB PC:20dB
PC MM:25 dB
Test Wavelength(nm) SM:1310/1550
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC,LSZH
Bending radius(Static/Dynamic) 10D/20D
Length Customized


  • Asynchronous Transmission Mode(ATM)
  • Gigabit Ethernet
  • Active Device/Transceiver Interface
  • CATV, Video, and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnects between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections




Takfly/OEM offers custom service for Multi-Fiber Termination Push-On Adapter (MPO/MTP). This product has many advantages including:

  • Brand Name: Takfly/OEM
  • Model Number: MPO/MTP
  • Place of Origin: Shenzhen, China
  • Cable Jacket: PVC/LSZH
  • Insertion Loss: ≤0.2dB
  • Return Loss: ≥20dB
  • Fiber Count: 12
  • Cable Type: Round/Ribbon

Multi-Fiber Push On (MPO/MTP) connectors are the perfect choice for high-density and multi-fiber applications. They provide superior performance and reliability while offering a cost-effective solution.


Support and Services:

Technical support and service for MPO MTP products include:

  • Help and guidance for proper installation and configuration of the product
  • Troubleshooting and problem-solving assistance
  • Assistance with product selection and compatibility
  • Comprehensive product documentation
  • Frequent software updates and firmware upgrades
  • Q&A and online resources
  • Live customer service

Packing and Shipping:

Packaging and Shipping for MPO MTP products:

  • All products are individually packaged.
  • Packaging materials include bubble wrap, corrugated cardboard boxes and plastic bags.
  • Products are shipped using reliable courier services such as FedEx or UPS.
  • Shipping costs are based on the size and weight of the package.
  • Delivery time may vary depending on the destination.


Q: What is Takfly/OEM MPO/MTP?
A: Takfly/OEM MPO/MTP is a high-performance fiber optic interconnect system that is designed for quick and reliable connections between fiber patch panels, optical outlets, and equipment. It is made in Shenzhen, China.
Q: How does Takfly/OEM MPO/MTP work?
A: Takfly/OEM MPO/MTP provides quick and reliable connections between fiber patch panels, optical outlets, and equipment. It uses precision-molded high-grade polymer connectors and precision-machined optical fiber ferrule to ensure optimal signal transmission.
Q: What are the benefits of Takfly/OEM MPO/MTP?
A: Takfly/OEM MPO/MTP provides superior performance and reliability. It is easy to install and provides a high-density interconnect system that is suitable for a wide range of applications.
Q: What types of applications can Takfly/OEM MPO/MTP be used for?
A: Takfly/OEM MPO/MTP can be used for data centers, telecom networks, LANs, and other high-speed optical interconnect applications.
Q: What is the warranty on Takfly/OEM MPO/MTP?
A: Takfly/OEM offers a one-year limited warranty on its MPO/MTP products.
