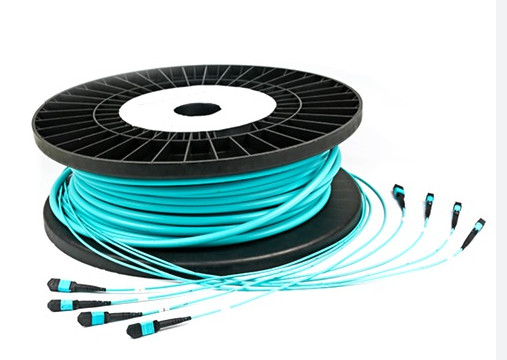

Multimode 36 Cores Optical Patch Cord Mpo / Mtp For Gigabit Ethernet
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Model Number: | MPO/MTP |
|
Detail Information |
|||
| Fiber Type: | OM3/OM4 | Cable Jacket: | PVC/LSZH |
|---|---|---|---|
| Return Loss: | ≥20dB | Operating Temperature: | -40℃~+85℃ |
| Insertion Loss: | ≤0.2dB | Connector Type: | MPO/MTP |
| Storage Temperature: | -40℃~+85℃ | Cable Length: | Optional |
| High Light: | gigabit ethernet optical patch cord,36 cores optical patch cord,36 cores multimode patch cord |
||
Product Description
Product Description:
MPO connectors are a growing technology in the world of the Internet of Things. This is because of their multi-core fiber design and small size that allows connector interfaces to be reduced without sacrificing space. ISO/IEC 24764 and ANSI/TIA-568-C are two of the main standards which endorse this technology for transmission over 2 cores.
The MPO and MTP patchcord is a double the size of a LC connector per core, which is great for saving more space for data transmission in data centers. They come in varying core amounts, starting at 4 and reaching as high as 72. It's important to note that the connection must match the fiber counts of the connectors, meaning 12 cores should go to 12 cores, and 24 cores to 24 cores, and so on. It is also very important to make sure that you are connecting different polarities, which usually involves a male and female connector and the same type of polishing between the two (PC to PC and APC to APC). If two female connectors are chosen, then they cannot be connected.
When buying an MPO patch cord, always remember to do consider the appropriate gender and polarity. For example, if you your MPO MTP connector requires a male type, then you should make sure to also buy the female type of the patch cord in order for them to be connected.
Features:
MT ferrule adopts precision molding technology which ensures its accuracy. High precision guide pins used for exact alignment can effectively connected fibers. The compact design even comes with fiber capacities of 4, 8, 12 and 24 fibers. Thus, it meets certain standards such as IEC 61754-7 and EIA/TIA-604-5 Norm.
The required capacity of the MT ferrule can be precisely satisfied by the various fiber counts. Connections between the end face of the fibers and the MT ferrule are provided with a superior precision and high reliability.
Technical Parameters:
| Category | Specification | Remarks | |
| Aoolicable for | 3.0mm×2.0mm(Drop cable.Indoor cable) | ||
| 2.0mm×1.6mm(Drop cable.Indoor cable) | |||
| Fiber mode | Single mode or Multi mode | ||
| Operation time | About 50(no fiber cut) | ||
| Insertion Loss | dB | ≤0.5 | |
| Insertion Loss Typical value | dB | 0.3 | |
| Return Loss | dB | ≥45 | |
| Fastening strength of naked fiber | N | ≥5 | |
| Tensile strength | N | ≥50 | |
| Reusable | Time | ≥10 times | |
| Operating Temperature | ℃ | -40～+85 | |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 | |
Application:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video, and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnects between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Customization:
- Brand Name: Takfly/OEM
- Model Number: MPO/MTP
- Place of Origin: Shenzhen, China
- Operating Temperature: -40℃~+85℃
- Durability: ≥500 Times
- Fiber Type: OM3/OM4
- Cable Type: Round/Ribbon
Support and Services:
We provide technical support and services for MPO MTP products. Our support team is available 24/7 to answer your questions, provide guidance and troubleshoot any issues you may have. We offer a variety of services, including:
- Installation and setup assistance
- Troubleshooting and problem resolution
- Software and firmware updates
- Product demonstration and training
- Product customization and optimization
- On-site maintenance and repair services
Our team of experts is here to help you get the most out of your MPO MTP products. Contact us today to learn more about our technical support and services.
Packing and Shipping:
The MPO MTP product will be packaged and shipped as follows:
- The product will be placed in a secure box, with foam inserts or other materials used to protect the product during shipping
- The box will be labeled with the product name and logo to ensure that it is easily identifiable
- The box will be sealed with strong packaging tape to prevent any tampering or damage during transit
- The box will then be placed in a larger shipping box and secured with packing material, such as bubble wrap or foam peanuts
- The shipping box will be labeled with the product name and logo, as well as the shipping address and any relevant tracking information
- The box will then be shipped via a reliable carrier, such as UPS, FedEx, or DHL
FAQ:
- Q: What is Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP is a fiber optic connector made by Takfly/OEM, with Shenzhen, China as its place of origin.
- Q: What are the advantages of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP has a high-speed transmission rate, low insertion loss, good exchangeability and excellent durability.
- Q: What is the application of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP is widely used in data centers and fiber to the home networks.
- Q: What is the size of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP is available in different sizes, including 12-fiber, 24-fiber, and 48-fiber.
- Q: What is the material of Takfly/OEM MPO/MTP?
- A: Takfly/OEM MPO/MTP is made of high-quality zirconia ceramic ferrules and plastic housings.
