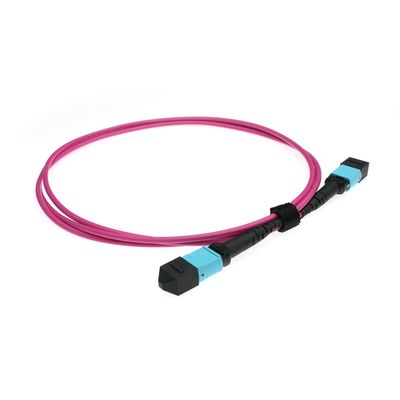

Om4 Multimode Fiber Patch Cord Plenum Mm Mtp Mpo 12 Connector
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | MPO MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bag+ Carton box |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50000 pcs/ Month |
|
Detail Information |
|||
| Fiber Count: | 12 Fibers | PN: | Multimode Plenum OM4 MM MTP Mtp 12 Fiber Connector |
|---|---|---|---|
| Mode Type: | OM4 | Cable Color: | VIOLET |
| Outer Sheath Material: | OFNP | Cable Type: | TRUNK Cable |
| High Light: | om4 multimode fiber patch cord,12 cores multimode fiber patch cord,multimode patch cord om4 |
||
Product Description
Multimode Plenum OM4 MM MTP mtp 12 fiber connector
MTP Patchcord Description:
Multimode Plenum OM4 MM MTP mtp 12 fiber connector is a trunk cable type patch cord, it is a type of MPO connector with very good quality and famous brand.
Hot-sale and welcomed by most of customers worldwide because of its high quality, good repeatability, durability, and good interchangeability in the fiber optic industry.
The Operating Temperature can be -20℃~70℃, and the storage temperature can be -40℃~80℃.
MPO MTP Patchcord Specification:
|
Item |
LC,SC,ST,FC....... |
MPO/MTP |
|
|
End face type |
PC, UPC, and APC |
PC and APC |
|
|
Fiber type |
SM(G652, G655, G657)；MM(OM1-OM5) |
||
|
Core number |
12,24 |
||
|
Cable Diameter |
0.9,2.0,3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
|
Insertion loss(dB) |
≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
|
Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
|
Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
|
Repeatability |
≤ 0.1dB |
||
|
Durability |
≤ 0.2dB |
||
|
Interchangeability |
≤ 0.2dB |
||
|
Operating Temperature |
-20℃~70℃ |
||
|
Storage Temperature |
-40℃~80℃ |
||
|
Outer Sheath Material |
PVC, LSZH |
||
|
Bending radius(Static/Dynamic) |
10D/20D |
||
|
Length |
Customized |
||
MPO MTP Patchcord Applications:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video, and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnects between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
MPO MTP Patchcord Features:
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
MPO MTP Patchcord fiber count types:
How to order MPO MTP Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8. MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
