Product Details:

Place of Origin: China
Brand Name: OEM/Takfly
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: GYTY53

Payment & Shipping Terms:

Minimum Order Quantity: 2KM
Price: USD300/pcs ~ USD1000/pcs
Packaging Details: 2-4km per Wooden Drum
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability: 2000km channels each month
Get Best Price Contact Now

Detail Information

Product Name: GYTY53 Fiber Optic Cable Sheath: Double Sheath
Outer Sheath Material: PE Armor: Corrugated Steel Tape
High Light:

GYTY53 outdoor fiber optic cable

,

Singlemode outdoor fiber optic cable

,

PE direct burial fiber optic cable

Product Description

Underground Duct GYTA53 GYTY53 Singlemode Fiber Optical Outdoor Cable Direct Buried 36 Fibres DJSA FO Cable





Description:

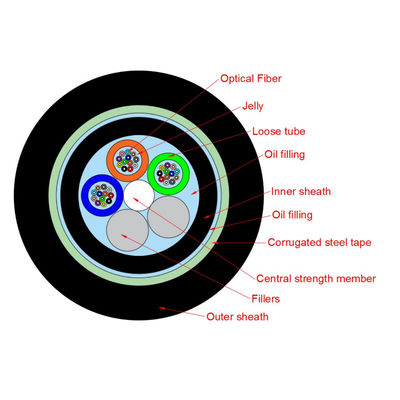

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the corrugated steel tape is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

GYTY53 fiber optic cable is with steel wire central strength member, corrugated steel tape and double PE sheath. The cable is used for outdoor underground duct/conduit or direct burid. The fiber amount is up to 288 core.




Features:
♦ Excellent mechanical and temperature performance.
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ Inner sheath effectively lower the external mechanical loading.
♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.





Application:

Direct buried

Underground conduit/duct
Backbone





Dimensions of Cable Constructions Cable Performance

Items Descriptions
Optical fiber Category G652D
Color Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
Counts 36
Structure / 1+5
CSM Material Steel wire
Loose tube Material PBT
Color Blue Orange Green Brown Grey White Red Black
Counts 3
Fibers per tube 12
Filler Number 2
Inner sheath Material PE
Color Black
Thickness (mm) Nominal 0.80
Filler Oil filling
Outer sheath Material PE
Color Black
Filler Oil filling
Cable diameter(mm) ±5% 11.3
Thickness (mm) Nominal 1.55
weight ±10%KG/KM   130





Mechanical and Environmental Characteristics

Items Descriptions
Tensile Strength short-term 2000N
long-term 1000N
Crush Resistance short-term 3000N/100mm
long-term 1000N/100mm
Temperature Range -40ºC-+70ºC
Bending Radius Dynamic ≥25D
Static ≥12.5D



GYTA53 GYTY53 Singlemode Outdoor Fiber Optic Cable Direct Buried 36 Fibres DJSA FO Cable 0

GYTA53 GYTY53 Singlemode Outdoor Fiber Optic Cable Direct Buried 36 Fibres DJSA FO Cable 1

GYTA53 GYTY53 Singlemode Outdoor Fiber Optic Cable Direct Buried 36 Fibres DJSA FO Cable 2
