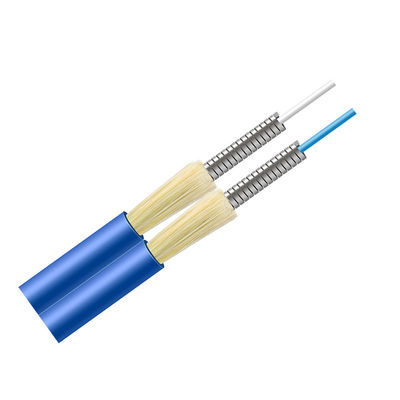

Zip Duplex G657A2 9/125 Um Armored Fiber Optic Cable Single Mode LSZH Flat
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | G657A2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2KM |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Standard export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 80KM / DAY |
|
Detail Information |
|||
| Product Name: | Zip Duplex G657A2 9/125 Um Armored Fiber Optic Cable Single Mode LSZH Flat Fiber Cable | Mode Type: | 9/125um Single Mode |
|---|---|---|---|
| Fiber Count: | Duplex | Cable Color: | Blue |
| Jacket Material: | PVC/LSZH/PU | Cable Type: | Duplex Indoor Armoured Cable |
| Core Type: | G657A2 | Cable Diameter: | 2.8*4.1mm |
| Central Strength Member Material: | Kevlar | Central Strength Member Diameter: | 1000D |
| High Light: | 9/125um Armored Fiber Optic Cable,G657A2 lszh fiber cable,G657A2 Fiber Optic Cable |
||
Product Description
Zip Indoor metal armored 2 core optical fiber cable SM G657A1 PVC blue jacket
Fiber Optic Cable Description:
Fiber Optic Cable Mechanical characteristic:
| Cable count | Diameter (mm |
Weight (Kg/km) |
Max.Tension (N) |
Crush Resistance (N/100mm) |
Min. Bending Radius (mm) |
Storage temperature (℃) |
|
| Long/Short Term |
Long/Short Term |
Dynamic | Static | ||||
| GJFJV | 2.0*4.1 | 21 | 160 | 300 | 20D | 10D | -20~+70 |
| 2.8*5.7 | 35 | 160 | 300 | ||||
Fiber Optic Cable Characteristics:
- Good mechanical and environmental characteristics.
- Flame retardant characteristics meet the requirements of relevant standards.
- The mechanical characteristics meet the requirements of relevant standards.
- Soft, flexible, easy to splice, and with big capacity data transmission.
- Anti rodent and UV stable
Fiber Optic Cable Application:
- Components for various indoor cables
- Suitable for patch cords and pigtails
- Suitable for communication equipment served
How to order Fiber Optic Cable:
|
Fiber Type |
Single-mode | multimode |
| 9/125um G652D | 62.5/125um OM1 | |
| 9/125um G657A1 | 50/125um OM2 | |
| 9/125um G657A2 | 50/125um OM3-150 | |
| 9/125um G657B3 | 50/125um OM3-300 | |
| 9/125um G655 | 50/125um OM4 | |
| 50/125um OM5 | ||
| Core type | YOFC, Corning | |
| Fiber count | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores,48core.... | |
| Cable jacket | PVC, LSZH, PE | |
| cable type | Indoor / outdoor cable,armored cable, drop cable...... | |
| Cable color | Blue, orange, green, brown, grey, white, red, black, yellow, magenta, pink, aqua. | |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... | |
| Length / drum(meter) | 1000/2000/3000......... | |
| Logo print | available | |
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.
3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.
We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
- Q: What your payment term?
A: T/T, Western Union, Paypal, Money Gram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
