1x1 Ports Polarization Maintaining Isolator 1.5M FC APC 1064nm 900um Dual Stage
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE, ISO14001, ISO9001, RoHS |
| Model Number: | PM Isolator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | sponge+plastic boxes + Export Carton box |
| Delivery Time: | 1-3 weeks depends on quantity |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 5000 pcs/ Month |
|
Detail Information |
|||
| Product Name: | 1.5M FC APC 1064nm 900um Dual Stage Polarization Maintaining Isolator | Wavelegth: | 1064nm+-5nm |
|---|---|---|---|
| Port Number: | 1x1 Ports | Min. Isolation At 23℃: | 42dB |
| Cable Diameter: | 0.9mm | Fiber Length: | 1.5M |
| High Light: | Polarization Maintaining Isolator 1.5M,FC APC Polarization Maintaining Isolator,FC APC PM Isolator |
||
Product Description

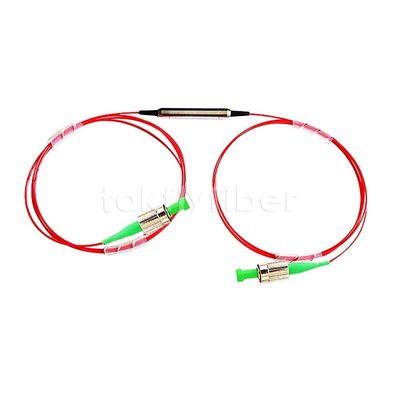

1.5M FC APC 1064nm 900um Dual Stage Polarization Maintaining Isolator
Takfly's Polarization Maintaining Fiber Isolator is a two port micro-optic device built with PM panda fiber. The device guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction.
Takfly's PM isolator features low insertion loss, high isolation, high extinction ratio and high reliability and stability. The device can be built with 250um bare fiber, 900um jacket or a 3mm cable. The PM Panda Fiber Isolator is widely used in amplifier systems, fiber optic systems and fiber lasers.
Features:
- Low Insertion Loss
- High Return Loss
- High Extinction Ratio
- High Isolation
- High Stability and Reliability
Applications:
- Communication Systems
- Test System
- Optical Fiber Sensor
- Research
Specification:
| Parameter | Unit | Value | ||||
| Stage | - | Single | Dual | |||
| Grade | - | P | A | P | A | |
| Center Wavelength | nm | 1064 | ||||
| Operating Wavelength Range | nm | ±5 | ||||
| Typ. Peak Isolation | dB | 40 | 38 | 55 | 52 | |
| Min. Isolation at 23℃ | dB | 32 | 28 | 45 | 42 | |
| Typ. Insertion Loss at 23℃ | dB | 1.5 | 1.6 | 2.4 | 2.6 | |
| Max. Insertion Loss at 23℃ | dB | 1.8 | 2.2 | 3.2 | 3.4 | |
| Min. Return Loss (input/output) | dB | 50/50 | 50/50 | 50/50 | 50/50 | |
| Min. Extinction Ratio at 23℃ | Both axis working | dB | 20 | 18 | 20 | 18 |
| Fast axis working | dB | 22 | 20 | 22 | 20 | |
| Max. Optical Power(CW) | mW | 300 | ||||
| Max. Tensile Load | N | 5 | ||||
| Fiber Type | - | PM Panda fiber | ||||
| Operating Temperature | ℃ | -5~+50 | ||||
| Storage Temperature | ℃ | -40~+85 | ||||
For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. The default connector key is aligned to slow axis.
Ordering Information:
PMIS-1111-234-555-67-8-9A
| 1111 - Wavelength: | 1064=1064nm |
| 2 - Grade: | P=P grade, A=A grade |
| 3 - Stage: | S=Single-core stage, D=Dual-core stage |
| 4 - Working Axis: | B=Both axis working, F=Fast axis blocked |
| 555 - Fiber Type: | 003=PM980, 014=PM1060L, 018=PLMA-GDF-10/125-M, SSS=Specify |
| 6 - Package Dimension: | 0=φ5.5x35mm |
| 7 - Pigtail Type: | 0=bare fiber, 1=900μm loose tube |
| 8 - Fiber Length: | 0.75=0.75m, 1.0=1m, S=Specify |
| 9 - Connector Type for Input: | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
| A - Connector Type for Output: | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
