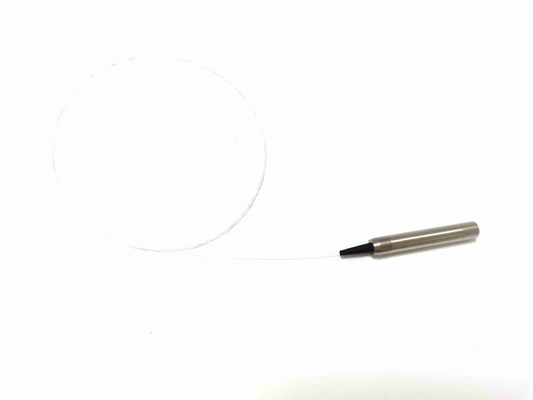

• 45 Degree Rotation Angle Faraday Rotate Mirrors 1550nm singlemode Fiber

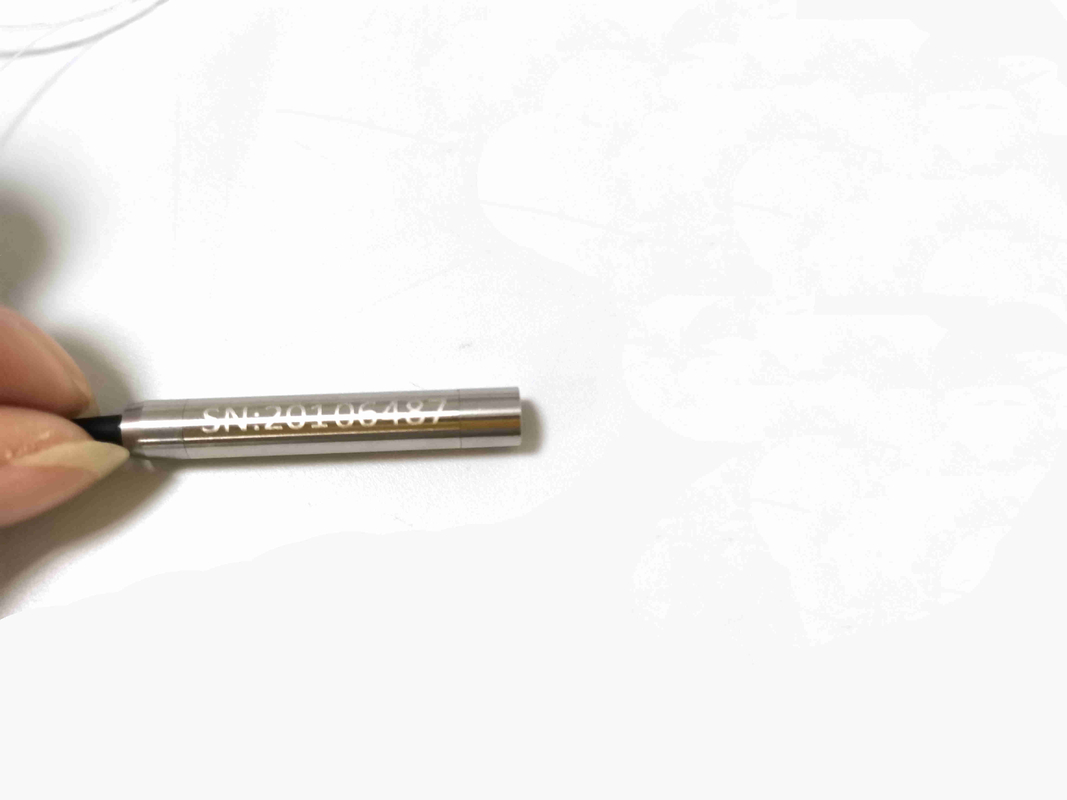

  • 45 Degree Rotation Angle Faraday Rotate Mirrors 1550nm singlemode Fiber

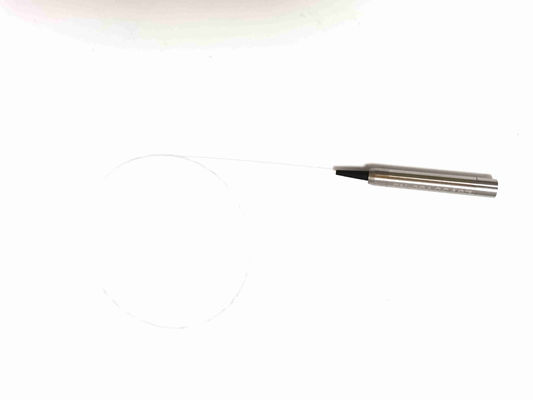

  • 45 Degree Rotation Angle Faraday Rotate Mirrors 1550nm singlemode Fiber
45 Degree Rotation Angle Faraday Rotate Mirrors 1550nm singlemode Fiber

45 Degree Rotation Angle Faraday Rotate Mirrors 1550nm singlemode Fiber

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: CE, ISO14001, ISO9001, RoHS
Model Number: Farraday Mirror

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: Can be negotiate
Packaging Details: sponge+plastic boxes + Export Carton box
Delivery Time: 1-3 wks depends on quantity
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 3500 pcs/ Month
Get Best Price Contact Now

Detail Information

Product Name: Faraday Rotate Mirrors At 1550 250um Bare Fiber SMF Fiber 45 Deg. Rotation Angle Wavelegth: 1550 ± 15nm
Fiber: SMF-28e Fiber Cable Diameter: 0.9mm
Fiber Length: 1 M Max. Power Handling: 500mW
High Light:

Bare Fiber Faraday Rotate Mirrors

,

SMF Fiber Faraday Rotate Mirrors

Product Description



Faraday Rotate Mirrors at 1550 250um bare fiber SMF fiber 45 Deg. Rotation angle



DESCRIPTION:



Faraday Rotate Mirrors at 1550 ± 15nm, 250um bare fiber SMF-28e 1 meter, no connector. 5.5*35 mm, Rotation angle 45+-3 Deg. Polarization Mode Dispersion 0.05ps, 500mW.





Parameters Unit Specification Test Data
Center Wavelength nm 1550 1550
Operating Wavelength Width nm ±15 ±15
Max. Insertion Loss@23 dB 0.60 0.39
Max. Polarization Dependent Loss dB 0.10 0.04
Faraday Rotation Angle(Single Transmission) deg 45
Max. Power Handling mW 500
Fiber Type SMF-28e fiber,bare fiber
Connector Type None
Fiber Length m 1.0
Max. Tensile Load N 5
Operating Temperature -5 ~ +70
Storage Temperature -40 ~ +85





45 Degree Rotation Angle Faraday Rotate Mirrors 1550nm singlemode Fiber 0











Ordering Information:

FR/HPPIFR-1111-2-333-456-7-88



1111 -Center Wavelength: 1064=1064nm,1030=1030nm,
2 -Rotating Angle: 1=45°, 2=90°
333 -Fiber Type: 001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
4 -Package Dimension: A=φ5.5x35mm, S=Specified
5 -Pigtail Type: 0=250μm bare fiber, 1=900μm loose tube
6 -Fiber Length: 0=0.8m,1=1m
7 -Connector Type: 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
88 -Average Power: 01=100mW,10=1W,50=5W,SS=specified
