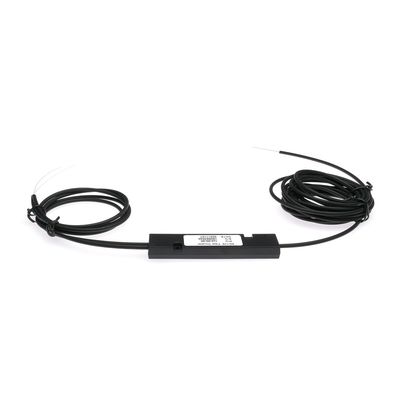

Black Armoured Jacketed Fused Coupler 50/125um IRVIS Multimode Fiber 3mm OD
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE, ISO14001, ISO9001, RoHS |
| Model Number: | Fused coupler |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Can be negotiate |
| Packaging Details: | sponge+plastic boxes + Export Carton box |
| Delivery Time: | 1-3 wks depends on quantity |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 3500 pcs/ Month |
|
Detail Information |
|||
| Product Name: | Black Armoured Jacketed Fused Coupler 50/125um IRVIS Multimode Fiber 3mm OD | Wavelegth: | 850nm /1310nm |
|---|---|---|---|
| Fiber Type: | 50/125µm IRVIS | Ratio: | 50/50 |
| Cable Diameter: | 3.0 Black Armoured Jacketed | Fiber Length: | 2.85 Meter |
| High Light: | 3mm fused fiber coupler,Armoured Jacketed fused fiber coupler,Multimode Fiber fused fiber coupler |
||
Product Description
Black Armoured Jacketed Fused Coupler 50/125um IRVIS Multimode Fiber 3mm OD
DESCRIPTION: Fused coupler 2.85 meters long at the common port, 0.55 meter long at both output ports, 3mm OD Black Armoured jacketed 50/125µm IRVIS multimode fiber pigtailed 1x2, 50/50 coupler with no connectors on any ports.
Operating Wavelength(nm): 850nm / 1310nm
Insertion Loss(dB): Out1: 3.25dB, Out2: 3.17dB
Directivity(dB): ≥ 40dB
| Serial Number: | 160982766 | Description: | 850/1310nm-50/50-1X2-3.0mm-2.85M/0.55M-LED | |||
| Fiber Type: | 50/125 | Fiber type | Multimode | |||
| Lead mark | Operating Wavelength(nm) | Coupling Ratio | Insertion Loss(dB) | Directivity(dB) | ||
| Out1 | 850 | 50.7% | 3.11 | ≥40 | ||
| Out2 | 49.3% | 3.23 | ||||
| Out1 | 1310 | 48.6% | 3.35 | |||
| Out2 | 51.4% | 3.11 | ||||
Ordering Information
FC-1111-2334-555-666-789-AAAA
| 1111 | -Center Wavelength: | 1550=1550nm,1310=1310nm, 0850=850nm, 980=980nm, 1054=1054nm |
| 2 | -Port number: | 3=1x2, 4=2x2 |
| 33 | -Tap ratio: | 01=1%,02=2%,......,05=5%,......, 50=50% |
| 4 | Grade | 01=A, 02=P |
| 555 | -Fiber type for Port 1, 3: | 001= 50/125 004=Hi1060, 005= 50/125 um 008=SMF-28E |
| 666 | -Fiber type for Tap: | 001= 50/125 004=Hi1060, 005= 50/125 um 008=SMF-28E |
| 7 | -Package Dimension: | 0=φ3x54mm, 1=φ3x60mm, S=Specified |
| 8 | -Pigtail Type: | 0=250μm bare fiber, 1=900μm loose tube |
| 9 | -Fiber Length: | 0=0.8m,1=1m |
| AAA | -Connector for Port 1,2,3,4: | 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None |
