MPO MTP OM3 OM4 OM5 Fiber Patch Cord 24 Cores
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Neutral/OEM |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | MPO-LC Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Zip-lock Bag |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, L/C, T/T, Paypal |
| Supply Ability: | 100PCS/Day |
|
Detail Information |
|||
| Cores: | 24 Cores | Fiber Type: | Multimode OM3 |
|---|---|---|---|
| Length: | 3m, 5m Or Customized | Cable: | Diameter 3.0mm |
| Connector Type: | MPO-LC Uniboot | Cable Jacket: | LSZH, OFNR |
| Highlight: | MPO MTP OM5 Fiber Patch Cord,24 Cores Fiber Patch Cord |
||
Product Description
Fiber Optic Cable 24 Cores MPO MTP OM3 OM4 OM5 Fiber Patch Cord
Fiber Optic 24 Cores MPO-LC Patch Cord Name:

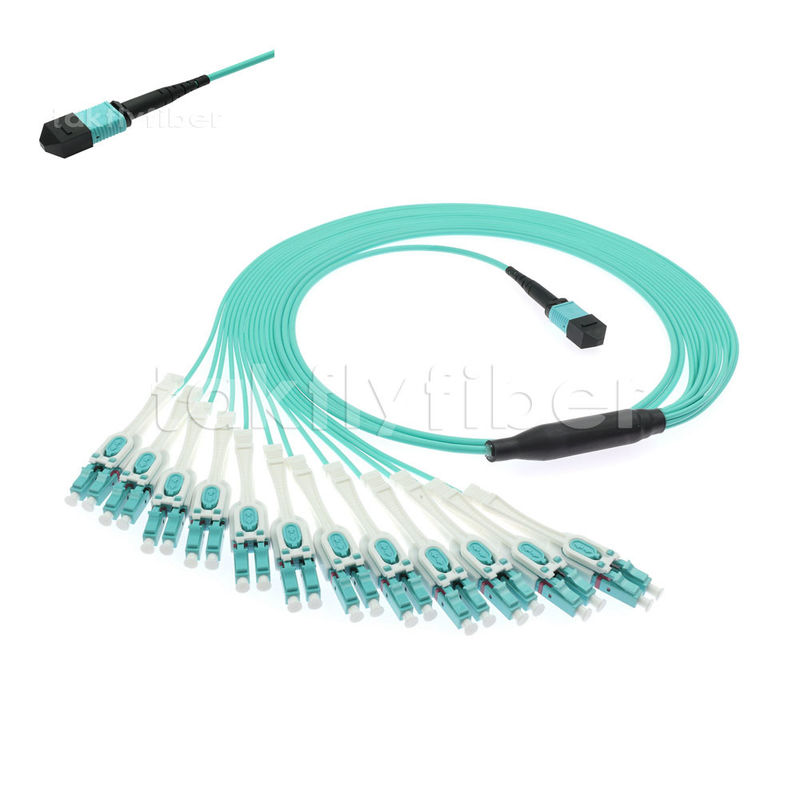

Patch Cord MPO-LC Uniboot 24 Cores Multimode OM3
Fiber Optic 24 Cores MPO-LC Patch Cord Description:
This MPO-LC Patch Cord is 24 Cores, Multimode OM3 in Aqua color LSZH outsheath.
Other 8 cores, 12 cores are also available.
OFNR or OFNP outsheath can be also customized.
Fiber Optic 24 Cores MPO-LC Patch Cord Features:
| Precision molded MT ferrule |
| High precision guide pins for exact alignment |
| Compact design, up to 4,8,12,24 fibers |
| IEC 61754-7 Compliant |
| Cable diameter 3.0mm, and 4.5mm available |
Fiber Optic 24 Cores MPO-LC Patch Cord Applications:
- Telecommunication Networks
- Active Deviced/Transceiver Interface
- Gigabit Ethernet
- CATV, Video and Multimedia
- Premise Installations
- Optical Switch interframe connections
- Data Center
Fiber Optic 24 Cores MPO-LC Patch Cord Specifications:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC,UPC and APC | PC and APC | |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) | ||
| Core number | 12, 24 | ||
| Cable Diameter | 0.9,2.0,3.0 | Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm | |
| Insertion loss(dB) | ≤ 0.3 | Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) | |
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB | MM: PC:20dB |
| Test Wavelength (nm) | SM:1310/1550 MM:850/1300 | ||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
