CPR 24C Fiber Optic Patch Cord Data Center MPO Fiber Cable

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Neutral/OEM/Takfly
Certification: CE/ROHS/REACH/CPR/ISO9001/ISO14001
Model Number: MPO Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3-7working days
Payment Terms: Western Union, L/C, T/T, Paypal
Supply Ability: 100PCS/Day
Get Best Price Contact Now

Detail Information

Cores: 24 Cores Fiber Type: SM And MM
Length: 1m, 3m, 5m And Customized. Cable Diameter: 3.0mm, 4.5mm
Connector Type: MPO Cable Jacket: LSZH
Cable Color: Yellow, Aqua, Violet, Lime Green Application: Data Center
Product Name: Fiber Optic MPO Patch Cord Other Fanout Way: MTP, LC Available

Product Description

Fiber Optic MPO 24 Cores Patch Cord Data Center MPO-MPO Fiber Cable

Fiber Optic MPO Patch Cord Name:


Fiber Optic 24 Cores MPO-MPO Patch Cord


Fiber Optic MPO Patch Cord Description:
This MPO-MPO Patch Cord is for the 24 Cores, and can do it for SM and MM according to the requirements. Other cores like 8 cores, 12 cores also available.


This type cable diameter is commonly for 3.0mm, and 4.5mm diameter is also available. The MPO patch cord is with very high density, which is widely used in the Data Center with high performance.

Fiber Optic MPO Patch Cord Features:


Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
Cable diameter 3.0mm, and 4.5mm available



Fiber Optic MPO Patch Cord Applications:

  • Telecommunication Networks
  • Active Deviced/Transceiver Interface
  • Gigabit Ethernet
  • CATV, Video and Multimedia
  • Premise Installations
  • Optical Switch interframe connections
  • Data Center

Fiber Optic MPO Patch Cord Specifications:


Item LC,SC,ST,FC.......                                  MPO/MTP
End face type PC,UPC and APC PC and APC
Fiber type SM(G652,G655,G657);MM(OM1-OM5)
Core number 12, 24
Cable Diameter 0.9,2.0,3.0 Mini Round cable:Max4.5mm; Ribbon cable:Max3.0*5.0mm
Insertion loss(dB)  ≤ 0.3 Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min)


APC SM:60 dB

PC MM:25 dB

SM: APC:60dB MM: PC:20dB
Test Wavelength (nm) SM:1310/1550 MM:850/1300
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB

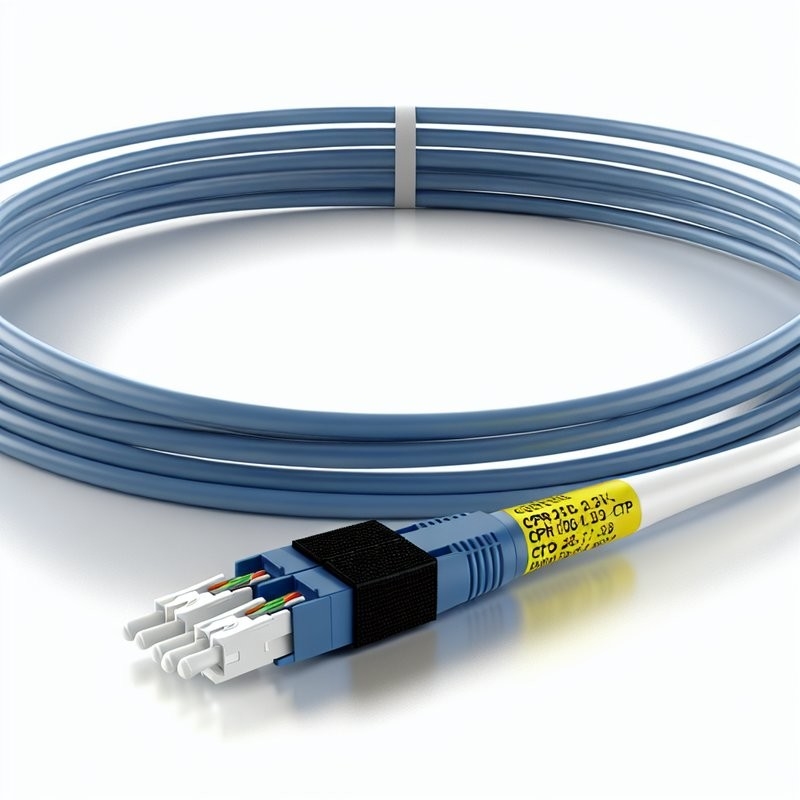

CPR 24C Fiber Optic Patch Cord Data Center MPO Fiber Cable 0

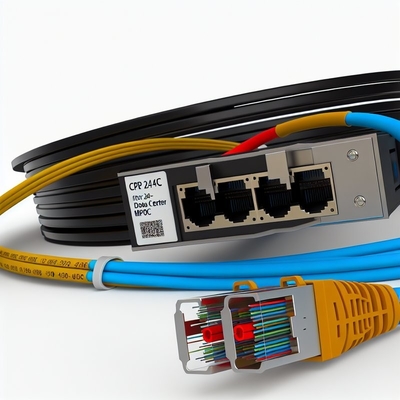

CPR 24C Fiber Optic Patch Cord Data Center MPO Fiber Cable 1

Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • With more than 21 years manufacturing experience in Fiber optic products;
  • More than 450 assembly workers with 3 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;


  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.
