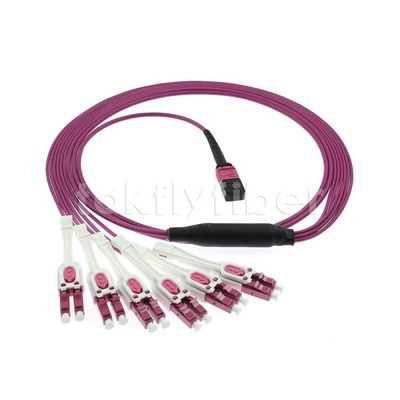

12F MPO To 6 LC Duplex Uniboot Fiber Optic Trunk Cable MM OM4 For Network Cabling
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Neutral/OEM/Takfly |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-12F-OM4-6LCD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$12.99~US$19.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Detail Information |
|||
| Cores: | 12 Core , 8 Core , 24 Core | Fiber Type: | Multimode , OM4 |
|---|---|---|---|
| Length: | 3m Or Customized | Cable Diameter: | 3.0mm Or Customized |
| Connector Type: | MPO , PC , Male , Female | Insertion Loss: | Standard: 0.6dB, Low Loss: 0.35dB |
| Return Loss: | SM APC: 60dB | Cable Jacket: | LSZH |
| Cable Color: | Violet , Aqua | Application: | Data Center, Telecom, Network |
| Certification: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 12F MPO To 6 LC Duplex Uniboot Fiber Optic Trunk Cable |
| High Light: | Uniboot Fiber Optic Trunk Cable,12F MPO Fiber Optic Trunk Cable |
||
Product Description
12F MPO to 6 LC Duplex Uniboot Fiber Optic Trunk Cable , MM OM4 for Network Cabling
MPO Fiber Optic Patchcord Description:
Takfly could produce 2/4/8/12/16/24/32/48 fibers for MPO/MTP Fiber Optic Trunk Cable according to customer requirement.
Cable diameter normal is 3.0mm round cable, we also have flat cable, 4.5mm double shealth cable, armoured cable available for your option.
MPO MTP connectors Insertion loss type: available in Standard, Elite and Low Loss.
MPO/MTP Serial Products we produce:
1. MPO/MTP Trunk Cable
2. MPO/MTP Harnesses Cables
3. MPO/MTP Fan out 0.9mm Patch Cords
4. IP-Series MPO/MTP Assembly
5. High Density Patch Cords: MPO/MTP-LC/SC/FC/ CS, ect.
6. MPO/MTP Loopback
7. MT Patch Cords
8. MPO/MTP Cassettes
9. MPO/MTP Fiber Optic Patch Panel
MPO Fiber Optic Patchcord specifications:
| Item | LC / SC / ST / FC....... | MPO / MTP | |
| End face type | PC / UPC / APC | PC and APC | |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | ||
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
| Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC / LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
Applications
- Data Center
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- Established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
- We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
- Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
- Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
- High quality, attractive price and fast delivery(2-7days) ;
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
