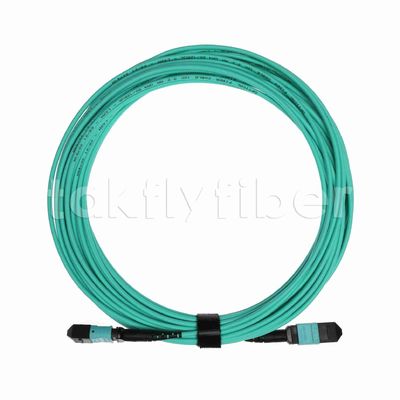

LSZH Aqua Jacket MPO MTP 12/24 Core USCONEC MM OM3 OM4 CPR

LSZH Aqua Jacket MPO MTP 12/24 Core USCONEC MM OM3 OM4 CPR

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Neutral/OEM/Takfly
Certification: CE/ROHS/REACH/CPR/ISO9001/ISO14001
Model Number: TK-PC-MTP-12F-MM-USCONEC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$13.99~US$36.99/PC
Packaging Details: PE bag
Delivery Time: 3-7working days
Payment Terms: Western Union, L/C, T/T,Paypal
Supply Ability: 1000PCS/Day
Get Best Price Contact Now

Detail Information

Cores: 12 Core, 8 Core , 24 Core Fiber Type: OM4 Or OM3
Length: 10M Or Customized Cable Diameter: 3.0mm Or Customized
Connector Type: MPO , PC , Male/Female Insertion Loss: Standard: 0.65dB, Low Loss: 0.35dB
Return Loss: MM PC: 20dB Cable Jacket: LSZH
Cable Color: Aqua Or Customized Application: Data Center, Telecom, Network
Certification: CE, ROHS, REACH, CPR, ISO9001, ISO14001 Product Name: 12/24 Core USCONEC MPO To MPO Fiber Optic Cable
High Light:

Aqua Jacket MPO MTP




CPR MPO Fiber Optic Cable

Product Description

12/24 Core USCONEC MPO to MPO Fiber Optic Cable , 3.0 mm MM OM3 OM4 , Aqua Jacket


12Cores SENKO Brand MPO Fiber Optic Trunk Cable Description:


Takfly use usconec original brand MTP connector for our 12/24 Core MTP to MTP Fiber Optic Cable.


Takfly has 6 MPO/MTP Cable production lines, daily production capacity could reach 1000 pcs per day, could meet your fast delivery requirement.


We have various MPO/MTP Connector for your options: USCONEC, SENKO, NISSIN, FSG, Neutral Brand, you could select any of them according to your request.

All of our MPO/MTP Cable has been certified with ISO9001, ISO14001, and they have been approved by ROHS, CE, and Reach Test.



MPO/MTP Serial Products we produce:


1. MPO/MTP Trunk Cable
2. MPO/MTP Harnesses Cables
3. MPO/MTP Fan out 0.9mm Patch Cords
4. IP-Series MPO/MTP Assembly
5. High Density Patch Cords: MPO/MTP-LC/SC/FC/ CS, ect.

6. MPO/MTP Loopback
7. MT Patch Cords
8. MPO/MTP Cassettes
9. MPO/MTP Fiber Optic Patch Panel


12Cores MPO Fiber Optic Patch Cable Features

  • High Density- multifibre connector and compact dimension of ruggedised micro cable ease space in costly data centre environments
  • Rapid Deployment- factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
  • Reliability- 100% tested- combination of high quality components and manufacturing quality control guarantees product to the highest standards
  • Next Generation Network Proof- emerging high speed protocol are going to use MTP/MPO interface- your cabling infrastructure remains unchanged
  • Compact design, up to 4,8,12,24 fibers.


Certiticates for 12Cores MPO Fiber Optic Tunk Cable : CE, ROHS, REACH, CPR, ISO9001 and ISO14001.


12Cores MPO Fiber Optic Trunk Cable specifications:


Item LC / SC / ST / FC....... MPO / MTP
End face type PC / UPC / APC PC and APC
Fiber type SM(G652 / G655 / G657);MM(OM1-OM5)
Core number 2 / 4 / 6 / 8 / 12 / 24
Cable Diameter 0.9 / 2.0 / 3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB) ≤ 0.3


Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)


APC SM:60 dB

PC MM:25 dB





Test Wavelength(nm)



Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC / LSZH
Bending radius(Static/Dynamic) 10D/20D
Length Customized



  • Asynchronous Transmission Mode(ATM)
  • Gigabit Ethernet
  • Active Deviced/Transceiver Interface
  • CATV, Video and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnect between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections

LSZH Aqua Jacket MPO MTP 12/24 Core USCONEC MM OM3 OM4 CPR 0


LSZH Aqua Jacket MPO MTP 12/24 Core USCONEC MM OM3 OM4 CPR 1

Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • Established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
  • So far, our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange, Corning, Amphenol, SENKO, and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price and fast delivery service.


I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!


If youre interested in our products or have any doubt, why not send me inquiry at once?
