APC To LC PC Duplex Patch Cable 3.0mm SM G652D 1310nm For Telecom Network

APC To LC PC Duplex Patch Cable 3.0mm SM G652D 1310nm For Telecom Network

Product Details:

Place of Origin: China
Brand Name: DF/OEM/Nuetral
Certification: CE/ROHS/REACH/ISO9001/ISO14001
Model Number: TK-PC-3.0-1M-E2K-LCP-SM-OS2

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: US$0.01~3.29/PC
Packaging Details: Export Standard Packing
Delivery Time: 5-9 working days depends on QTY
Payment Terms: Western Union, T/T, MoneyGram/Paypal
Supply Ability: 10000PCS/Day
Get Best Price Contact Now

Detail Information

Product Name: E2000 APC Single Mode Fiber Optic Duplex Patch Cord Intertion Loss: ≤0.3dB
Return Loss: APC MM ≥ 60dB Fiber Type: OS2, G652D , G657A1 , G657A2 , G657B3
Diameter: 3.0mm Connector Type: APC
Jacket Material: LSZH/PVC/PU Color: Yellow, Customized
Wavelength: 1310nm,1550nm Length: 1M Or Customized
Operation Temperature: -40℃~80℃ Fiber Diameter: 9/125
Grade: Telecom Grade Certificate: CE/ROHS/REACH
Production Capcity: 10000PCS/Day
High Light:

LC PC Duplex Patch Cable

,

SM G652D Duplex Patch Cable

,

1310nm Fiber Optic Patch Cable

Product Description

E2000 APC to LC PC Fiber Optic Duplex Patchcord 3.0mm SM G652D Yellow Jacket for Telecom Network

Fiber Optic Patchcord Description:

Takfly's fiber Optic patchcords are certified with ISO9001 and ISO14001, and are approved with CE, ROHS and Reach Test.



Our Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.


Fiber Optic Patchcords are generally used in the connection between the optical transceiver and the terminal box, and is used in some fields such as optical fiber communication systems, optical fiber access networks, optical fiber data transmission, and local area networks.



Fiber Optic Patchcord Specifications:

End face type PC, UPC and APC
Fiber type SM(G652 / G655 / G657);MM(OM1-OM5)
Cable Diameter 0.9 / 2.0 / 3.0 or customized(Simplex/duplex)
Insertion loss ≤ 0.3 dB
Return loss UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability ≤ 0.1
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Tensile strength 0.9mm cable>5N 2.0/3.0mm cable>70N
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC/LSZH or Customized
Bending radius(Static/Dynamic) 10D/20D
Length Customized


Fiber Optic Patchcord Applications:


  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks(LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANS)


Fiber Optic Patchcord Features:


  • Low insertion loss and High reflection loss
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard:Telcordia GR-326-CORE

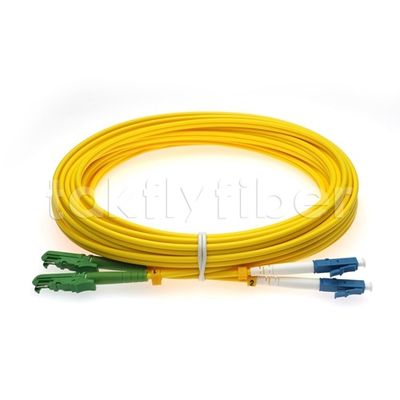

Fiber Optic Patchcord Picture


APC To LC PC Duplex Patch Cable 3.0mm SM G652D 1310nm For Telecom Network 0


  • How to order Optical fiber patch cord

    1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
    2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
    3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
    4. Coating material : PVC / LSZH
    5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
    6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
    7. Patch cord length : according to your requirement
    8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )

With more than 6 years of sales experience and shipping experience in optical fiber products, I have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.
