UPC MM Duplex Fiber Patch Cord 3.0mm LSZH ST To LC OM1 OM2 APC
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-3.0-1M-STU-LCU-MM-OM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~2.79/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | ST To LC OM1 OM2 Fiber Optic Duplex Patch Cord | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | PC MM ≥ 35 DB | Fiber Type: | OM1/OM2 |
| Diameter: | 3.0mm | Connector Type: | PC/UPC |
| Jacket Material: | LSZH/PVC/PU | Color: | Orange Or Customized |
| Wavelength: | 1310nm, 850nm | Length: | 1M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 50/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| High Light: | UPC MM Duplex Fiber Patch Cord,OM2 LSZH Duplex Fiber Patch Cord,APC Lc Duplex Patch Cord |
||
Product Description
ST To LC OM1 OM2 Fiber Optic Duplex Patch Cord 3.0mm LSZH Orange Jacket For Telecom
Fiber Optic Patchcord Description:
Takfly has 8 Fiber Optic Patchcord Production lines, daily production capacity could reach 20000PCS end.
Established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR , etc.
Fiber Optic Patchcord Specifications
| End face type | PC, UPC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 0.9 / 2.0 / 3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Fiber Optic Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Patchcord Features:
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE

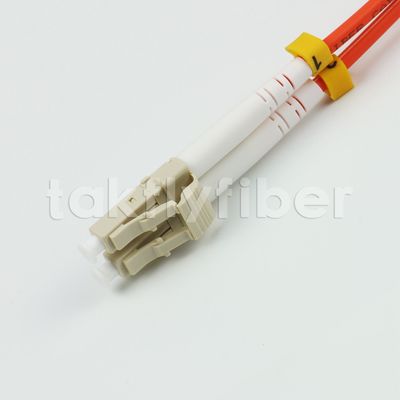

Fiber Optic Patchcord Picture
Why choose TAKFLY--Advantages as follows:
- So far, our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project.
- In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange, Corning, Amphenol, SENKO, and Ericsson.
- All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price and fast delivery service.
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
With more than 6 years of sales experience and shipping experience in optical fiber products, I have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.
