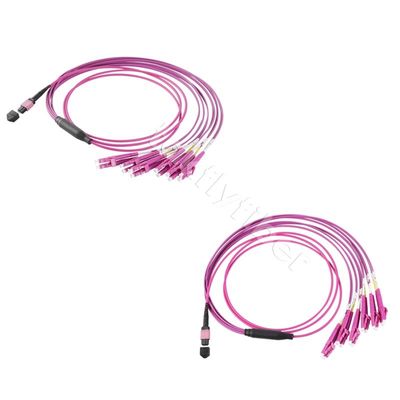

3.0mm OM4 LSZH MPO Breakout Cable MPO To LC Fiber Patch Cable
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Neutral/OEM/Takfly |
Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
Model Number: | TK-PC-MPO-LC-12/24F-OM4 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | US$13.99~US$29.99/PC |
Packaging Details: | PE bag |
Delivery Time: | 3-7working days |
Payment Terms: | Western Union, L/C, T/T,Paypal |
Supply Ability: | 500PCS/Day |
Detail Information |
|||
Cores: | 12/24 | Fiber Type: | OM4 |
---|---|---|---|
Length: | 5/10/20M Or Customized | Cable Diameter: | 3.0mm |
Connector Type: | MPO/MTP, Female , Male, PC | Insertion Loss: | Standard: 0.6dB, Low Loss: 0.3dB |
Return Loss: | MM PC: 20dB | Cable Jacket: | LSZH |
Cable Color: | Violet | Application: | Data Center, Telecom, Network |
Certification: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 12/24 Cores MPO To LC Patch Cable |
High Light: | OM4 MPO Breakout Cable,LSZH MPO Breakout Cable,MPO To LC Fiber Patch Cable |
Product Description
12/24 Cores MPO to LC Patch Cable MPO Breakout Cable , OM4 , Violet , 3.0mm
With the development of 5G, in order to meet the high density,high efficiency,high speed and large capacity optical cable network cabling system requirements, MPO/MTP products are being widely used in the application.
MPO/MTP Serial Products we produce:
1. MPO/MTP Trunk Cable
2. MPO/MTP Harnesses Cables
3. MPO/MTP Fan out 0.9mm Patch Cords
4. IP-Series MPO/MTP Assembly
5. High Density Patch Cords: MPO/MTP-LC/SC/FC/ CS, ect.
2. 6. MPO/MTP Loopback
7. MT Patch Cords
8. MPO/MTP Cassettes
9. MPO/MTP Fiber Optic Patch Panel
MPO to LC Patch Cable Specifications:
Item | LC / SC / ST / FC....... | MPO / MTP | |
End face type | PC / UPC / APC | PC and APC | |
Fiber type | SM(G652 / G655 / G657);MM(OM1-OM5) | ||
Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm; Ribbon cable:Max3.0*5.0mm |
|
Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
Repeatability | ≤ 0.1dB | ||
Durability | ≤ 0.2dB | ||
Interchangeability | ≤ 0.2dB | ||
Operating Temperature | -20℃~70℃ | ||
Storage Temperature | -40℃~80℃ | ||
Outer Sheath Material | PVC / LSZH | ||
Bending radius(Static/Dynamic) | 10D/20D | ||
Length | Customized |
MPO to LC Patch Cable Features:
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- EC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
MPO to LC Patch Cable Applications:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
With 21 years manufacturing experince in Fiber Optic Products, Takfly pay high attention to the production of high quality standard of MPO/MTP products, which include MPO-MPO and MTP-MTP Trunk Cable, MPO/MTP-LC, MPO/MTP-SC, MPO/MTP-FC, MPO/MTP-ST and MPO/MTP-CS breakout cable, MPO/MTP Cassette, MPO Patch Panel, ect.
The advantages of Takfly’s MPO products as below:
- CE, ROHS, CPR, ISO9001 and ISO14001 certified.
- High performance in insertion loss return loss.
- Connector fibers from 2 fibers to 72 fibers.
- OEM brand is available.
- Competitive price and fast delivery.
If you’re dealing with data center and 5G projects, Takfly would be your good choice.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
