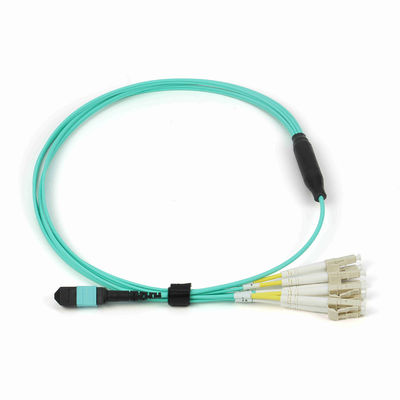

QSFP Breakout 100G Fiber Optic MPO MTP Cable 8 Core OM4 50/125
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | MPO MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bag+ Carton box |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50000 pcs/ Month |
|
Detail Information |
|||
| Product Name: | MPO F 8 Core OM4 50/125 QSFP Breakout 100G Fiber Optic MPO MTP Cable | Connector Type: | MPO-LC |
|---|---|---|---|
| Fiber Count: | 8 C | Gender: | Female |
| Cable Type: | Om4 | Cable Color: | Aqua |
| Insertion Loss: | 0.3dB | Return Loss: | ≥25 DB |
| Test Wavelength （nm）: | 850nm / 1300nm | Advantage: | Resistant To Side Pressure, Bending Resistance, Anti-termite, Anti-rat Bite |
| Outer Sheath Material: | LSZH | ||
| High Light: | QSFP Breakout MPO MTP Cable,Fiber Optic MPO MTP Cable,OM4 MPO Patch Cord |
||
Product Description
MPO F 8 Core OM4 50/125 QSFP Breakout 100G Fiber Optic MPO MTP Cable
MPO MTP Patchcord Description:
The MPO fiber optic patch cord normally uses in the data center for the high-density data center built. It has many types of MPO patch cords, such as MPO-MPO, MPO-LC 0.9mm fanout patch cord, MPO-FC, SC, LC, ST 2.0mm/ 3.0mm breakout patch cord.
All types of MPO has a different application, for example, The MPO-MPO patch cord is used for connecting this patch panel to another patch panel. So the length can be customized according to the distance of the patch panels.
The MPO-LC 0.9mm patch cord is used in the MPO cassette module of the patch panel. The regular length is 0.5 meters, and for some small cassettes, the length should be 0.3 meters.
The MPO-LC, SC, FC, ST 2.0mm/3.0mm breakout patch cord is used for connecting the connectors on the front panel of the patch panel. If the connectors on the front patch panel are LC adaptors, then you need the LC patch cords to connect it, so that it can be connected and to transmit the data to another side.
MPO MTP Patchcord Specification:
|
Item |
LC,SC,ST,FC....... |
MPO/MTP |
|
|
End face type |
PC, UPC, and APC |
PC and APC |
|
|
Fiber type |
SM(G652, G655, G657)；MM(OM1-OM5) |
||
|
Core number |
12,24 |
||
|
Cable Diameter |
0.9,2.0,3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
|
Insertion loss(dB) |
≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
|
Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
|
Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
|
Repeatability |
≤ 0.1dB |
||
|
Durability |
≤ 0.2dB |
||
|
Interchangeability |
≤ 0.2dB |
||
|
Operating Temperature |
-20℃~70℃ |
||
|
Storage Temperature |
-40℃~80℃ |
||
|
Outer Sheath Material |
PVC, LSZH |
||
|
Bending radius(Static/Dynamic) |
10D/20D |
||
|
Length |
Customized |
||
MPO MTP Patchcord Applications:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video, and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnects between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
MPO MTP Patchcord Features:
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
MPO MTP Patchcord fiber count types:
How to order MPO MTP Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8. MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
