• 10m SC UPC SM PVC Simplex Armored Patch Cord G652D Spiral Steel Pipe
  • 10m SC UPC SM PVC Simplex Armored Patch Cord G652D Spiral Steel Pipe
10m SC UPC SM PVC Simplex Armored Patch Cord G652D Spiral Steel Pipe

10m SC UPC SM PVC Simplex Armored Patch Cord G652D Spiral Steel Pipe

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: SC SC

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Can be negotiated
Packaging Details: PP bag+ Carton box
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000 pcs/ Month
Get Best Price Contact Now

Detail Information

Product Name: 10 Meter SC UPC SM Armored Blue PVC Simplex Patch Cord With Spiral Steel Pipe Connector Type: SC UPC
Fiber Count: Simplex Fiber Cable Diameter: 3.0mm
Mode Type: G652D Core Type: 9/125um
Cable Color: Blue Insertion Loss: ≤0.3dB
Return Loss: UPC SM≥50dB 、APC SM≥ 60 DB、 PC MM ≥ 35 DB Outer Sheath Material: PVC
Repeatability: ≤ 0.1dB Durability: ≤ 0.2dB
Interchangeability: ≤ 0.2dB Tensile Strength: >70N
Length: Customized
High Light:

SC UPC Armored Patch Cord


PVC Simplex Armored Patch Cord


G652D Multimode Fiber Patch Cord

Product Description

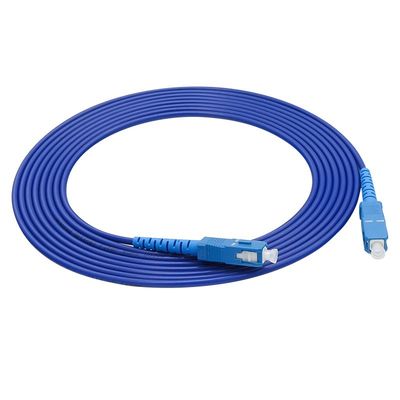

                                           10 Meter SC UPC SM Armored Blue PVC Simplex Patch Cord With Spiral Steel Pipe
Fiber Optic Patchcord Description:

The simplex 10 meters SC single-mode armored PVC patch cord is a blue color cable. Normally single-mode armored cable out jacket is blue, but a multimode cable can be many colors. It can be black, grey, yellow, orange, red, etc. It is different from the indoor normal cable. Because inside the cable has a stainless steel material protection tube to protect the cable from rats. It is widely used in the data center distribution, CATV, FTTH application.


The simplex armored patch cord has one connector on each side. The SC connector of this type is UPC polishing. It also can be APC or multimode PC polishing according to the application and requirements. The normal indoor cable is very easy to be broken due to there is not metal protection tube from the damage by rats so that it needs to be prepare and changed often once it is broken. So, the price of a normal indoor cable patch cord price is cheaper than the armored cable, but the maintenance cost is higher than the armored patch cord.


The length of this patch cord is 10 meters, it can be customized. And the fiber count also can be customized. Simplex patch cord connects with another patch cord by the adaptor.The armored cable patch cord saves a lot of cost of maintenance. And also save a lot of time to prepare the cable, especial in a very small space. Also, Stainless steel tube provides good protection against physical damage

Fiber Optic Patchcord Applications:

  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks(LANs)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANs)

Fiber Optic Patchcord Features:

  • Low insertion loss and High reflection loss
  • Good exchangeability
  • Good durability
  • High temperature stability
  • Standard: Telcordia GR-326-CORE

Fiber Optic Patchcord Specification:

End face type PC,UPC and APC
Fiber type SM(G652,G655,G657);MM(OM1-OM5)
Cable Diameter 2.0,3.0 or customized(Simplex/duplex)
Insertion loss ≤ 0.3 dB
Return loss UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability ≤ 0.1
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Tensile strength >70N
Storage Temperature -40℃~80℃
Outer Sheath Material PVC,LSZH,TPU
Bending radius
Length Customized

Fiber Optic Patchcord types:

10m SC UPC SM PVC Simplex Armored Patch Cord G652D Spiral Steel Pipe 0



1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.

2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.

3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.

We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.

We have competitive shipping forwarders. For more solutions, you can feel free to contact us.

4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.

All the products are 100% test before delivery.

5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.

6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.

7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.

8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.

9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.

10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.

2.We will offer our quotation with lead time.

3.After the quotation confirmed, we will send a PI with our bank account.

4.Production will be arranged after the payment received.

5.Confirm the consignee with you before we deliver it.

6.The tracking number will be provided after the delivery.

  • Q: What your payment term?
    A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.


How to order Fiber Optic Patchcord


1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
