10ft 8 Cores MPO MTP To Unitboot LC MM 40GbE Mpo Fiber Jumper Cables

10ft 8 Cores MPO MTP To Unitboot LC MM 40GbE Mpo Fiber Jumper Cables

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: MPO MTP to unitboot

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Can be negotiated
Packaging Details: PP bag+ Carton box
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 50000 pcs/ Month
Get Best Price Contact Now

Detail Information

Product Name: 10 Ft 8 Cores MPO MTP To Unitboot LC MM 40GbE Mpo Fiber Jumpers Cable Connector Type: MPO To Unitboot
Fiber Count: 8 Core Gender: M
Cable Type: Break Out Cable Mode Type: OM3
Cable Color: Aqua( Customized) Insertion Loss: 0.3dB
Return Loss: ≥25 DB Test Wavelength (nm): 850nm / 1300nm
Outer Sheath Material: LSZH Application: Data Center Distribution
High Light:

8 Cores MPO MTP

,

10ft fiber jumper cables

,

40GbE MPO MTP

Product Description

10 Ft 8 Cores MPO MTP To Unitboot LC MM 40GbE Mpo Fiber Jumpers Cable



MPO MTP Patchcord Description:



The 8 cores MPO MTP to unit boot LC jumpers cable is different from the normal LC connector. The MPO cables are most commonly used with high-density fiber patch panels. 1U 2U size or other size patch panel in data center application.



The normal LC connectors only have 1 core in each boot, and each connector uses 1 cable. But unit boot LC is very different, it will use the duplex mini fiber cable to cross the LC boot. MPO MTP to LC 8 fibers cable is for connecting with the QSFP transceiver module. We use 12 fibers MPO MTP to produce it, then it will leave 4 fibers that do not have a core in the MPO MTP connector.

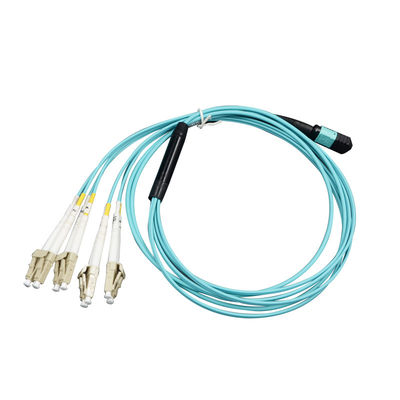

The Unit boot connector as we can see in the picture, it also has two LC housing and connector, but they use in common one boot. There are two ways to produce the 8 fibers MPO MTP connector patch cord. One way is to keep 4 fibers empty in the middle of the MPO MTP connector, or each side left 2 fibers, only use the 8 fibers of the middle.



MPO MTP fiber patch cable has many types according to the different applications. The MTP fiber cable can be mass terminated in combinations of 4, 8, 12, 24, and 48 fiber ribbon cables. Optional Lengths are available. High-density MTP/MPO trunk cables with up to 288 fibers in a single cable. MPO Multi-fiber Push On is a type of optical connector that has been the primary multiple fiber connector for high-speed telecom and data communications networks.



MPO MTP Patchcord Specification:

Item

LC,SC,ST,FC.......

MPO/MTP

End face type

PC, UPC, and APC

PC and APC

Fiber type

SM(G652, G655, G657);MM(OM1-OM5)

 Core number

12,24

Cable Diameter

0.9,2.0,3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB)

≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength(nm)

SM:1310/1550

MM:850/1300

Repeatability

≤ 0.1dB

Durability

≤ 0.2dB

Interchangeability

≤ 0.2dB

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Outer Sheath Material

PVC, LSZH

Bending radius(Static/Dynamic)

10D/20D

Length

Customized



MPO MTP Patchcord Applications:



  • Asynchronous Transmission Mode(ATM)
  • Gigabit Ethernet
  • Active Device/Transceiver Interface
  • CATV, Video, and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnects between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections




MPO MTP Patchcord Features:



  • Precision molded MT ferrule
  • High precision guide pins for exact alignment
  • Compact design, up to 4,8,12,24 fibers
  • IEC 61754-7 Compliant
  • EIA/TIA-604-5 Compliant

10ft 8 Cores MPO MTP To Unitboot LC MM 40GbE Mpo Fiber Jumper Cables 0



MPO  MTP Patchcord fiber count types:



10ft 8 Cores MPO MTP To Unitboot LC MM 40GbE Mpo Fiber Jumper Cables 1



How to order MPO MTP Patchcord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8. MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )



FQA :

1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.

2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.

3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.

We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.

We have competitive shipping forwarders. For more solutions, you can feel free to contact us.

4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.

All the products are 100% test before delivery.

5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.

6. Q: What's your warranty?
A: Depends on one different product, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.

7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.

8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.

9. Q: Can I have a sample?
A: It depends on which products, Free samples provide for under 10 USD. Freight will be paid by the buyer before delivery.

10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.

2. We will offer our quotation with lead time.

3. After the quotation confirmed, we will send a PI with our bank account.

4. Production will be arranged after the payment received.

5. Confirm the consignee with you before we deliver it.

6. The tracking number will be provided after the delivery.

  • Q: What your payment term?
    A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
