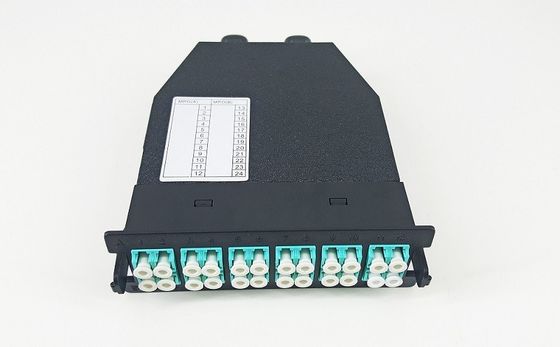

24 Cores MPO MTP Optic Patch Panel Module Cassette For Data Center
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, RoHS, FCC, ISO9001, ISO14001 |
| Model Number: | TK-CS-MPO-24F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | US$0.01~US$20.99 |
| Packaging Details: | Standard export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25000 set / Month |
|
Detail Information |
|||
| Product Name: | 24 Cores MPO MTP Cassette | Fiber Count: | 24 Fibers |
|---|---|---|---|
| Connector Interface: | LC | Material: | 1.2mm Cold-rolled Steel |
| Width: | 108.9mm | Depth: | 117.9mm |
| Height: | 34mm | Material Coating: | Powder Coating |
| Designed In Accordance With: | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1 | Compliant To: | CE,RoHS, Reach/SVHC |
| Color: | Black | Application: | Telecom/network, Telecommunication, Rack Mount, FTTH Deployments, Datacent Backbone Cabling |
| Highlight: | 117.9mm 24 Cores MPO MTP,24 Cores Optic Patch Panel Module,108.9mm MPO MTP |
||
Product Description
24 Cores MPO MTP Optic Patch Panel Module Cassette For Data Center
Takfly's 24 Cores MPO / MTP Fiber Optic Patch Panel Module Cassette provides secure transition between MPO/MTP and LC or SC discrete connectors. They provide a quick, reliably high performance and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module.
24 Cores MPO / MTP Fiber Optic Patch Panel Module Cassettes can be mounted in 1U to 4U 19' multislot chassis. They are available in Multi-mode and Single-mode cable.
The Polarity for the MPO/MTP Connector of 24 Cores MPO / MTP Fiber Optic Patch Panel Module Cassettes usually have: Type A, Type B and Type C for option, it depends on customers' requirement.
MPO / MTP Fiber Optic Patch Panel Module Cassette Features:
- High-density and small desing, Easy and fast installation
- Available in 8/12/24 fiber versions.
- Field connections with guaranteed quality and simplifies fiber routing.
- Modular system management, easy reconfiguration for moves, adds and changes.
- Customized fiber polarity in the module.
MPO / MTP Fiber Optic Patch Panel Module Cassette Application:
- Data Centre Infrastructure.
- High Density Fiber Management.
- Telecommunications networks and Broadbank/CATV networks.
- LAN/WAN premises
MPO / MTP Fiber Optic Patch Panel Module Cassette Parameter:
| Connector A | |
| Connector Type | 8, 12 or 24 -Fiber MPO /MTP |
| Ferrule of end-face | UPC, APC |
| Housing Color | MM (Beige/Aqua), SM (Yellow/Green) |
| Insertion Loss, Standard | SM IL ≤0.35/0.7dB (Typical/Max); MM IL≤0.6dB |
| Insertion Loss, Low Loss |
SM IL≤0.2/0.35(Typical/Max), MM IL≤0.35dB |
| Return Loss |
SM: APC:60dB; MM: PC:20dB |
|
Repeatability |
≤ 0.1dB |
| Durability(500 Matings) | ≤ 0.2dB |
| Working Temperature |
-20℃~70℃ |
| Connector B | |
| Connector Type | LC/SC |
| Ferrule of end-face | APC, PC |
| Housing Color | Blue, Beige, Aqua |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM: APC:60dB;
UPC SM:40dB MM: PC:235dB |
MPO / MTP Fiber Optic Patch Panel Module Cassette Details:
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 21 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
