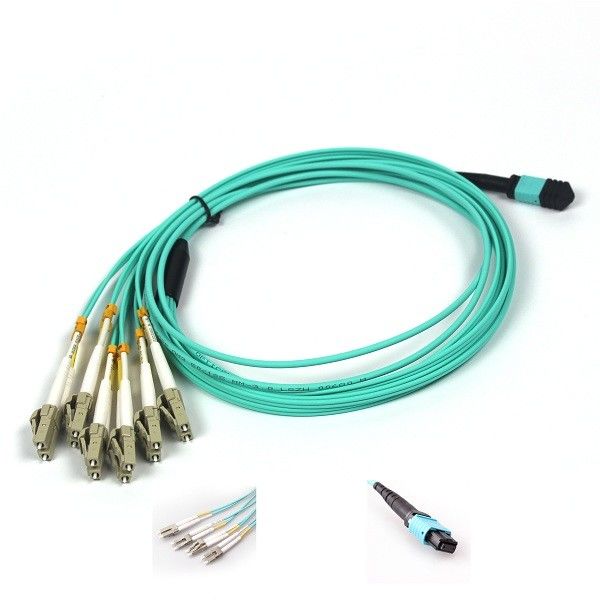

12F LC MM Fanout MPO Fiber Optic cable MTP Jumper Aqua Jacket In Data Center
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM |
| Certification: | CE,RoHS,EMC |
| Model Number: | TK-PC-MPO/MTP-LC-12F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | 1pcs a bag |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, Paypal, MoneyGram |
| Supply Ability: | 10,000pcs a month |
|
Detail Information |
|||
| Product Name: | MPO/MTP To LC Fanout Patchcord | Fiber Type: | MM |
|---|---|---|---|
| Cable Type: | 3.0mm OM3 | Fiber Core: | 12F |
| IR: | LC<0.3dB; MPO/MTP<0.7dB | RL: | LC>25dB; MPO/MTP>20dB |
| Color: | Aqua | Cable Length: | 1m Or Customized |
| High Light: | 12F MPO Fiber Optic cable,mtp jumper,LC MM MPO Fiber Optic cable |
||
Product Description
12F MPO/MTP-LC MM Fanout Fiber Optic MPO/MTP Jumper with Aqua Jacket in Data Center
12F MPO/MTP-LC Patchcord Description
TK-PC-MPO/MTP-LC-12F refers to the use of 12F MPO/MTP connector at one end and LC connector at the other end. The product is mainly used in the pre-end module box, connecting the pre-end backbone cable and the jumper between the equipment, making it modular, plug and play. Compaing with the traditional welding, greatly improve the convenience and efficiency of the work.
MPO/MTP-LC Patchcord Specification:
| Item | LC,SC,ST,FC... | MPO/MTP |
| End face type | PC,UPC and APC | PC and APC |
| Fiber Type | SM(G652,G655,G657)；MM(OM1-OM5) | |
| Core number | 8,12,24... | |
| Cable Diameter(mm) | 0.9,2.0,3.0 | Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC>60dB MM: PC>20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 |
|
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | PVC,LSZH | |
| Bending radius (Static/Dynamic) |
10D/20D | |
| Length | Customized | |
12F MPO/MTP-LC Patchcord Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
12F MPO/MTP-LC Patchcord Application
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
MPO/MTP Patchcord/Jumper Polarity:
| Type A | Type B | Type C | ||||||||
| 1 | 1 | Blue | 1 | 12 | Blue | 1 | 2 | Blue | ||
| 2 | 2 | Orange | 2 | 11 | Orange | 2 | 1 | Orange | ||
| 3 | 3 | Green | 3 | 10 | Green | 3 | 4 | Green | ||
| 4 | 4 | Brown | 4 | 9 | Brown | 4 | 3 | Brown | ||
| 5 | 5 | Gray | 5 | 8 | Gray | 5 | 6 | Gray | ||
| 6 | 6 | White | 6 | 7 | White | 6 | 5 | White | ||
| 7 | 7 | Red | 7 | 6 | Red | 7 | 8 | Red | ||
| 8 | 8 | Black | 8 | 5 | Black | 8 | 7 | Black | ||
| 9 | 9 | Yellow | 9 | 4 | Yellow | 9 | 10 | Yellow | ||
| 10 | 10 | Violet | 10 | 3 | Violet | 10 | 9 | Violet | ||
| 11 | 11 | Pink | 11 | 2 | Pink | 11 | 12 | Pink | ||
| 12 | 12 | Aqua | 12 | 1 | Aqua | 12 | 11 | Aqua | ||
MPO/MTP Patchcord/Jumper Odering information
| Fiber Type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Fiber count | 8,12,20,24F... |
| Connector | MPO/MTP, LC, SC,FC,ST |
| MPO/MTP connector type | Female or Male |
| IR | Standard loss or low loss |
| Length | 1m... |
| Breakout lengths | customized |
| Polarity | A,B or C |
| Jacket color | Aqua, Violet or customized |
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: Yes. 1) We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
2) We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
3) We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1). Send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2). We will offer our quotation with lead time.
3). After the quotation confirmed, we will send a PI with our bank account.
4). Production will be arranged after the payment received.
5). Confirm the consignee with you before we deliver it.
6). The tracking number will be provided after the delivery.
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
