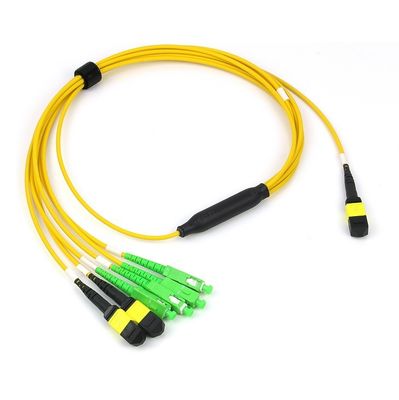

12 Cores MPO MTP Fiber Optic Fanout Splitter SM 9/125 G657A For Cabling System
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Neutral/OEM/Takfly |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-SC-12F-OS2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$13.99~US$32.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Detail Information |
|||
| Cores: | 8/12/24 | Fiber Type: | G657A1/G657A2/G652D/OM1/OM2/OM3/OM4 |
|---|---|---|---|
| Length: | 0.5M/1M/5M/10M/50M/100M Or Customized | Cable Diameter: | 0.9mm/3.0mm/Customized |
| Connector Type: | MPO/MTP, APC/PC, Male/Female | Insertion Loss: | Standard: 0.6dB, Low Loss: 0.3dB |
| Return Loss: | SM APC :60dB, MM PC: 20dB | Cable Jacket: | LSZH |
| Cable Color: | Aqua, Violet,Yellow | Application: | Data Center, Telecom, Network |
| Certification: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | MPO MTP Fiber Optic Fanout Splitter Cable |
| Mode: | Single Mode, SM | ||
Product Description

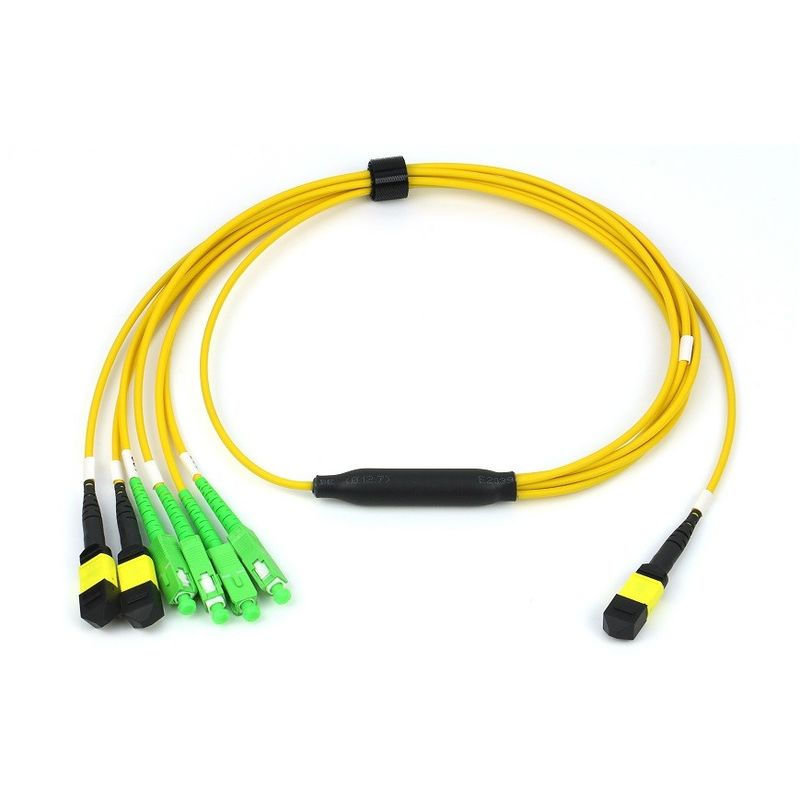

12 Cores MPO MTP Fiber Optic Fanout Splitter SM 9/125 G657A For Cabling System
MPO MTP Fiber Optic Fanout Cable The MPO (multi-fibre push-on) cabling system is an easy-to-use solution based on a high density connector and ribbon-fiber cables with 12 cores. This system is commonly used in data centers but also etween server rooms.
MPO MTP Fiber Optic Fanout Cable is designed for reliable and quick operations with the obvious benefits of less space requirements and improved scalability. The pre-terminated MPO cables can fan-out to other connections, usually to LC/SC, to interconnect with standard-density products or services, using modules or fan-out cables.
MPO MTP Fiber Optic Fanout Cable Applications:
It is for Data center systems wiring, Headend termination to a fiber "backbone", Termination of fiber rack systems, Multi-floor deployment, Intrabuilding "backbones", and 5G Data Center Cabling.
MPO MTP Fiber Optic Fanout Cable Features:
- High density, plug and play fiber optic interconnects
- Pre-terminated cable assemblies eliminate field termination time and guarantee optical performance
- Available with a wide variety of cable and connector options
- Standard and low loss connectors
- Single-mode and laser-optimized multimode fiber available
- Pulling eye option available upon request
Certiticates for MPO MTP Female To LC Fiber Optic Fanout Cable : Takfly has been certified with CE, ROHS, REACH , CPR, ISO9001 and ISO14001.
MPO MTP Fiber Optic Fanout Cable Specifications:
| Item | LC / SC / ST / FC....... | MPO / MTP | |
| End face type | PC / UPC / APC | PC and APC | |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | ||
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
| Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC / LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
Splitter Specification:
|
Item |
Parameter |
|||||
|
Operating Wavelength(nm) |
1260 ~ 1650 |
|||||
|
Type(1*N) |
1*2 |
1*4 |
1*8 |
1*16 |
1*32 |
1*64 |
|
Insertion dB) |
3.9 |
7.2 |
10.3 |
13.5 |
16.8 |
20.3 |
|
Max.Uniformity(dB) |
0.8 |
0.8 |
0.8 |
1.0 |
1.5 |
2.0 |
|
Min.Return Loss(dB) |
55 |
|||||
|
Max.PDL(dB) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Type(2*N) |
2*2 |
2*4 |
2*8 |
2*16 |
2*32 |
2*64 |
|
Max.Insertion Loss(dB) |
4.2 |
7.5 |
10.6 |
13.9 |
17.2 |
20.8 |
|
Max.Uniformity(dB) |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|
Min.Return Loss(dB) |
55 |
|||||
|
Max.PDL(dB) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Fiber Type |
ITU-T G657A1 , G657A2 and G.652D |
|||||
|
Max.Temperature Stability(dB) |
0.5( Typical 0.3 ) |
|||||
|
Operating Temperature(℃) |
-40 ~ +85 |
|||||
|
Storage Temperature(℃) |
-40 ~ +85 |
|||||
All measurement are made at room temperature, and connectors not included
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 21 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 36 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
