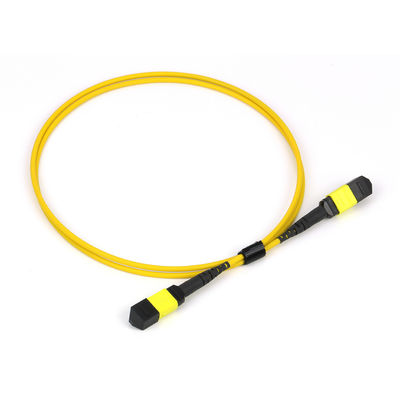

12 Cores MPO Fiber Optic Patch Cable With ROHS CE REACH CPR Compliant
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Neutral/OEM/Takfly |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-12F-SM-LL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$13.99~US$25.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Detail Information |
|||
| Cores: | 2/4/6/8/12/24/48 | Fiber Type: | G657A1/G657A2/G652D/OM1/OM2/OM3/OM4 |
|---|---|---|---|
| Length: | 0.5M/1M/5M/10M/50M/100M Or Customized | Cable Diameter: | 3.0mm/4.5mm/Customized |
| Connector Type: | MPO/MTP, APC/PC, Male/Female | Insertion Loss: | Standard: 0.7dB, Low Loss: 0.35dB |
| Return Loss: | SM APC: 60dB, MM PC: 20dB | Cable Jacket: | LSZH |
| Cable Color: | Yellow, Aqua, Violet | Application: | Data Center, Telecom, Network |
| Certification: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | ||
Product Description
12 Cores MPO Fiber Optic Patch Cable With ROHS CE REACH CPR Compliant
12Cores MPO Fiber Optic Patch Cable assembly facilitates rapid deployment of high density backbone cabling, in data centres , 5G mobile communication base stations and other high-fibre environments, reducing network installation or reconfiguration time and cost. They are used to interconnect modules, panels or ruggedised MTP/MPO Fanouts, spanning MDA, HDA and EDA zones.
12Cores MPO Fiber Optic Patch Cable Features
- High Density- multifibre connector and compact dimension of ruggedised micro cable ease space in costly data centre environments
- Rapid Deployment- factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
- Reliability- 100% tested- combination of high quality components and manufacturing quality control guarantees product to the highest standards
- Next Generation Network Proof- emerging high speed protocol are going to use MTP/MPO interface- your cabling infrastructure remains unchanged
- Compact design, up to 4,8,12,24 fibers.
Certiticates for 12Cores MPO Fiber Optic Patch Cable : CE, ROHS, REACH, CPR, ISO9001 and ISO14001.
12Cores MPO Fiber Optic Patch Cable Features Specifications
| Item | LC / SC / ST / FC....... | MPO / MTP | |
| End face type | PC / UPC / APC | PC and APC | |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | ||
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
| Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC / LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
Applications
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 21 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 36 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
