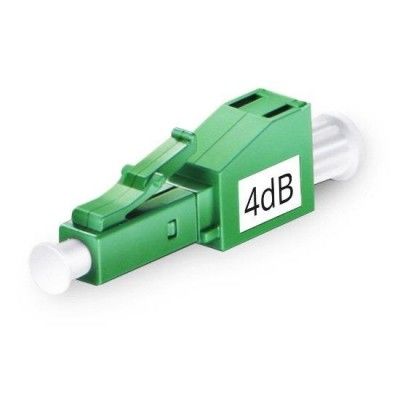

1DB 20DB Fiber Optic Attenuator LC Fixed Single Mode Male To Female
|Place of Origin:||Shenzhen, China|
|Certification:||CE, ISO, RoHS, CPR, FCC|
Payment & Shipping Terms:
|Minimum Order Quantity:||50pcs|
|Price:||Can be negotiated|
|Packaging Details:||International export packing|
|Delivery Time:||3-15 working days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||15000 pcs/ day|
|Product Name:||1- 20 DB LC Single Mode Male To Female Fiber Optic Attenuator||Connector Type:||LC|
|Mode:||SM||Insertion Loss:||SM≤0.2dB ; MM≤0.3dB|
|Duration:||<0.1 DB||Tensile Strength:||>100N; <0.1 DB|
|Operating Temperature:||-40℃～+85℃||Storage Temperature:||-40℃～+85℃|
|Return Loss:||UPC SM≥55dB 、APC SM≥ 60 DB、 PC MM ≥ 35 DB||Tolerance:||DB Value≤5 DB =±0.5&DB Value≥5 DB =±DB*10%|
1DB Fiber Optic Attenuator,
1640nm fiber attenuator lc,
20DB Fiber Optic Attenuator
Fiber Optic Attenuator Product Name:
1- 20 DB LC Single-Mode Male To Female Fiber Optic Attenuator
Fiber Optic Attenuator Description:
An LC fixed male to female attenuator is a passive device used to reduce the intensity of optical signal without significantly changing the transmission wavelength. This device is used in transmission links such as dense wavelength division multiplexer (DWDM) and erbium-doped fiber amplifier (EDFA) with high-intensity optical power.
This product USES the patented metal ion erbium-doped fiber to effectively reduce the intensity of optical signal transmission. Compared with the optical fiber offset welding method that only changes the direction of optical transmission, the production process of this product has a significant difference in all aspects.
It is suitable for 1310-1550, C, and L bands, and can withstand the transmission of high-intensity light power over 1W for a long time, better adapting to EDFA and other high-power applications. Low polarization loss (PDL) and stable independent wavelength distribution make optical fiber attenuator an ideal choice for DWDM
Fiber Optic Attenuator Features:
- erbium-doped metal ion attenuation fiber is adopted
- long time to withstand high power optical signal transmission
- 1260-1640nm bandwidth, applicable to both 1310 and 1550 wavelengths
- attenuation range 0-30db, distinguish between standard and quality products with two different indicators
Fiber Optic Attenuator Application:
Fiber Optic Attenuator Parameter:
|Attenuation range||dB||0-4||-0.5 to +0.5|
|dB||5-30||-10% to +10%|
|Operating Temperature||--||-40 to +75|
|Storage Temperature||--||-40 to +85|
|Vibration loss||dB||10-55Hz 2 hours||≤0.2|
|Fall loss||dB||1.5m, 5 times fall||≤0.2|
Fiber Optic Attenuator Drawing:
More Fiber Optic Attenuator types:
How to order fiber optic Attenuator:
Step 1: Connector type: MPO/MTP, E2000, FC, SC, LC, ST, MU, MTRJ, SMA
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.
3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.
We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
- Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
