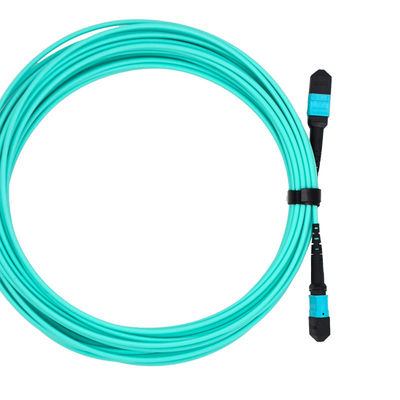

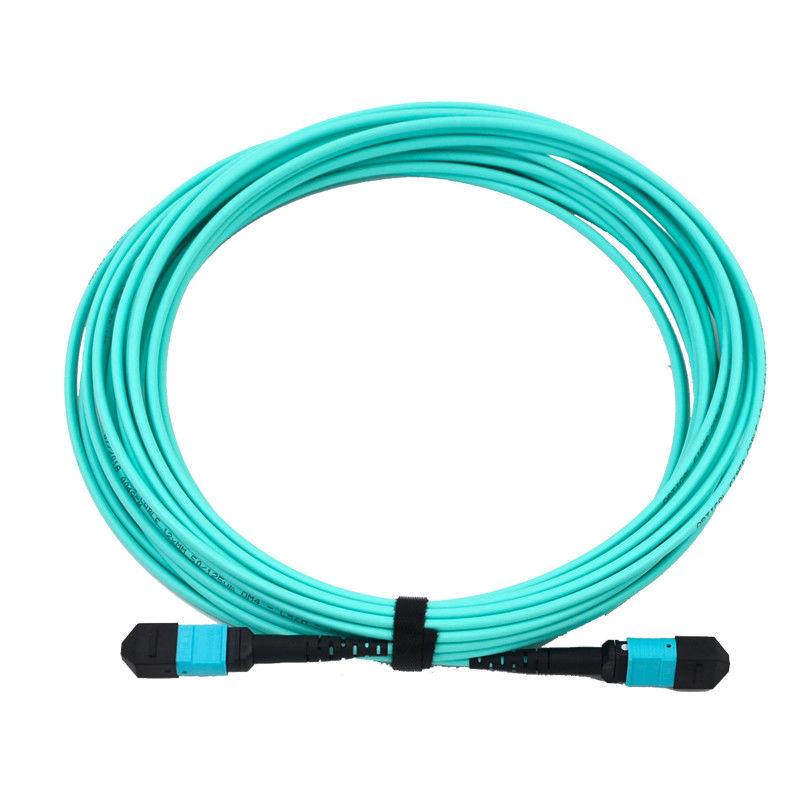

Data center 12 fibers MPO MTP multimode OM3-300 3.0mm patch cord

Data center 12 fibers MPO MTP multimode OM3-300 3.0mm patch cord

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: MPO/MTP

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Can be negotiated
Packaging Details: PP bag+ Carton box
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 50000 pcs/ Month
Get Best Price Contact Now

Detail Information
Product Name: 12 Fibers MPO MTP Multimode OM3-300 3.0mm Patch Cord Connector Type: MPO/MTP
Fiber Count: 12F Polarity: A Type
Gender: Female Cable Type: Round Cable 3.0mm
Mode Type: MM OM3-300 Cable Color: Aqua
Insertion Loss: 0.3-0.7dB Return Loss: UPC SM：40dB APC SM：60 DB PC MM：25 DB
Test Wavelength （nm）: MM:850/1300 ReDurabilitypeatability: ≤ 0.1dB
Outer Sheath Material: PVC、LSZH Length: Customized

Product Description

MPO/MTP Fiber Optic Patchcord Product Name:



Datacenter 12 fibers MPO MTP multimode OM3-300 3.0mm patch cord







MPO/MTP Fiber Optic Patchcord Description:



MPO/MTP patch cord is designed for a high-density fiber optic data center solution. It can save the wiring space of the data center to the maximum extent and play an important role in realizing the density data center.MPO/MTP connectors can be 8 cores, 12 cores, 16 cores, 24 cores, 48 cores, 72 cores. The length of the patch cord can be customized based on the direct transmission distance from the data center.



Takfly Group manufacture MPO/MTP Patch Cable, WDM/CCWDM/CWDM/DWDM, Fiber Optic PLC Splitter, Fiber Optic Cable, Fiber Optic Patchcord, Fiber Optic Pigtail, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Panel, Fiber Optic Termination Box, Fiber Optic Splice Closure, Fiber Optic Media Converter, Ethernet Switch, Fiber Optic Tool Kit, etc.







MPO/MTP Fiber Optic Patchcord Drawing:

Data center 12 fibers MPO MTP multimode OM3-300 3.0mm patch cord 0





MPO/MTP Fiber Optic Patchcord Applications:



  • Asynchronous Transmission Mode(ATM)
  • Gigabit Ethernet
  • Active Device/Transceiver Interface
  • CATV, Video, and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnects between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections




MPO/MTP Fiber Optic Patchcord Features:

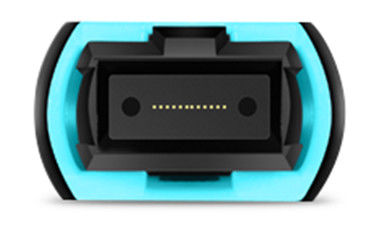

  • Precision molded MT ferrule
  • High precision guide pins for exact alignment
  • Compact design, up to 4,8,12,24 fibers
  • IEC 61754-7 Compliant
  • EIA/TIA-604-5 Compliant





MPO/MTP Fiber Optic Patchcord Specification:

Item

LC,SC,ST,FC.......

MPO/MTP

End face type

PC,UPC and APC

PC and APC

Fiber type

SM(G652,G655,G657)；MM(OM1-OM5)

 Core number

12,24

Cable Diameter

0.9,2.0,3.0

Mini Round cable:Max4.5mm；

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB)

≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength(nm)

SM:1310/1550

MM:850/1300

Repeatability

≤ 0.1dB

Durability

≤ 0.2dB

Interchangeability

≤ 0.2dB

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Outer Sheath Material

PVC,LSZH

Bending radius(Static/Dynamic)

10D/20D

Length

Customized



MPO/ MTP Fiber Optic Patchcord Polarity types:

Data center 12 fibers MPO MTP multimode OM3-300 3.0mm patch cord 1



MPO/ MTP Fiber Optic Patchcord Fiber Count Types:



Data center 12 fibers MPO MTP multimode OM3-300 3.0mm patch cord 2





MPO/ MTP Fiber Optic Patchcord Workshop:



Data center 12 fibers MPO MTP multimode OM3-300 3.0mm patch cord 3





How to order MPO/ MTP Fiber Optic Patchcord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )



FQA :

1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.

2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.

3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.

We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.

We have competitive shipping forwarders. For more solutions, you can feel free to contact us.

4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.

All the products are 100% test before delivery.

5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.

6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.

7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.

8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.

9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.

10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.

2.We will offer our quotation with lead time.

3.After the quotation confirmed, we will send a PI with our bank account.

4.Production will be arranged after the payment received.

5.Confirm the consignee with you before we deliver it.

6.The tracking number will be provided after the delivery.

  • Q: What your payment term?
    A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
