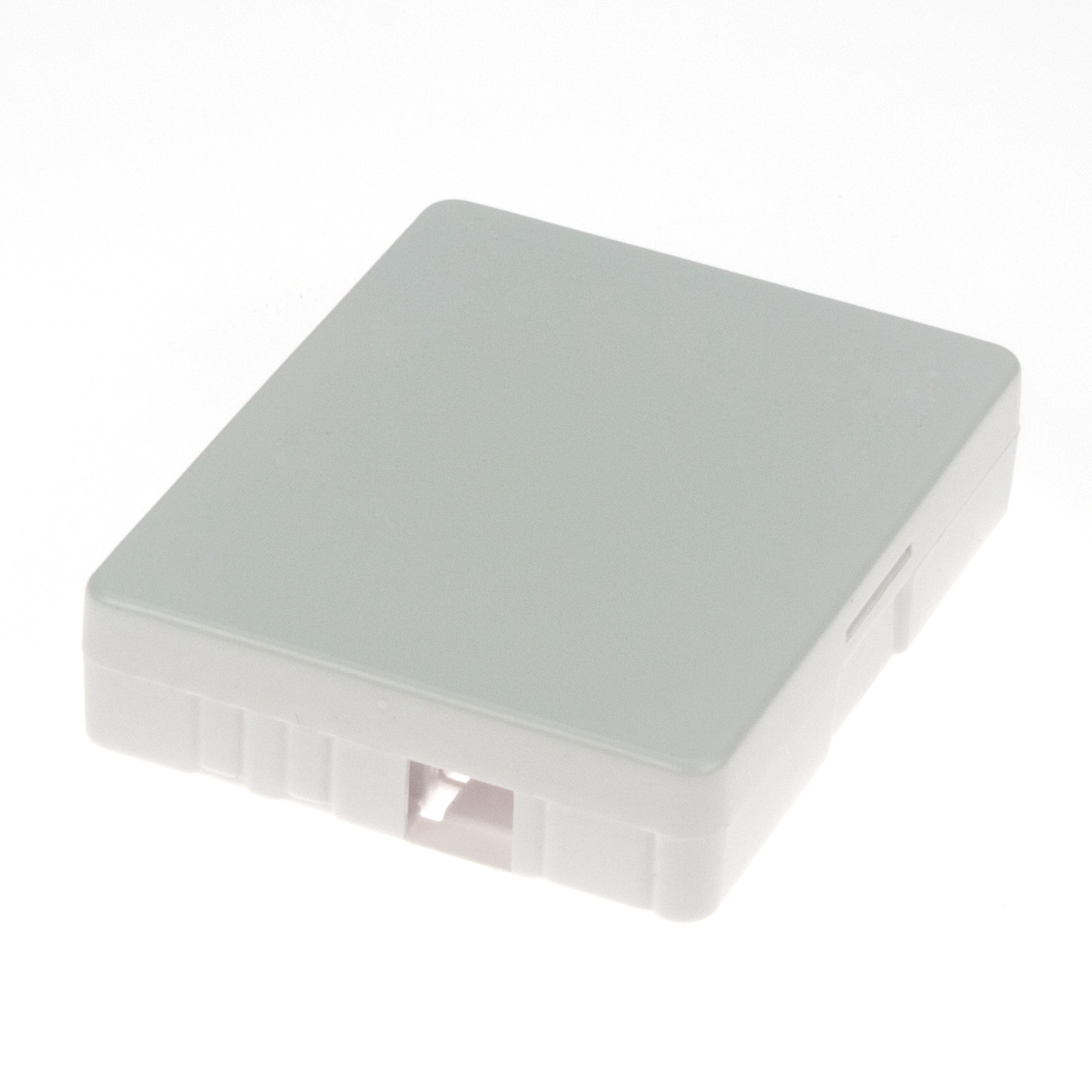

2 Port SC APC Wall Mount 2 Core Mini FTTH Terminal Box

Product Description

FTTH 2 Port SC/APC Wall Mount 2core Fiber Optical Distribution Box Mini FTTH Terminal Box



Fiber Optic Termination Box Product Name:



TKS-1806-02A/D/E/GB 2 ports fiber optic termination box



Fiber Optic Termination Box Description:



Those mini distribution boxes are widely applied in the FTTX network to connect drop cable and ONU devices through fiber port. It supports splicing, distribution, mechanical connection and wall mounted installation. The capacity of those boxes can be in different according to your reuqest, and the fiber interface can be do it by SC or LC, simplex or duplex.



FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system. Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.



Fiber Optic Termination Box Features:

• Small size, light weight, pleasing in appearance. Suitable for indoor wall mount
• SC 2 cores, LC 4 cores
• Set strengthen device and fiber optic cable mounting seat
• Optical fiber can be managed effectively
• May adapt variety of optical connection styles
• Can be installed on the wall with mechanical protective function

Fiber Optic Termination Box Application:

• Fiber to the building(FTTB)
• Telecommunication Networks
• Local area networks
• Optical fiber distribution frame, frame type and wall type optical fiber distribution unit

Fiber Optic Termination Box Parameter:



Work Temperature	-40 ⁰ C ~+85 ⁰ C
Relative Humidity	≤ 85% (+30 ⁰ C)
Atmospheric Pressure	70Kpa~106Kpa
Insert Loss	≤ 0.2dB
UPC Return Loss	≥ 50dB
APC Return Loss	≥ 60dB
Insert and Pull out Life	≥ 1000 times
Insulation Withstand Voltage	The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current) Between the grounding device and the box body, the withstand voltage is over 3000V/Min, with no breakdown and flashover. U ≥3000V (direct current)





Fiber Optic Termination Box Details:











Fiber Optic Termination Box Other Types:







How To Order Fiber Optic Termination Box:



1. Connector type: LC, SC

2.  Fiber count: simplex, duplex, 4 fibers, 8 fibers, 12 fibers, 16 fibers, 32 fibers, 48 fibers, 96 fibers, etc.

3. Color: grey, white, black.

4. Loading: empty box / full set

5. Quantity



Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

• With more than 20 years manufacturing experience in Fiber optic products;
• More than 250 assembly workers with 3 years experienced;
• More than 10 R&D Engineers;
• 16 Sets Germany imported Injection Machine and 16 Production Lines;
• More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
• OEM Brand is acceptable.
• Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

• Spot check the raw material incoming inspection before production;
• Fully check after every individual process finished;
• Fully check production half done;
• Fully check the finished products before packing;
• Spot check before shipping;

Delivery:

• Samples: 1-3 working days.
• Mass Production Order: 3-7 working days.
• Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Shipping:

• * DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
• * By Sea or By Air, could use your own pointed forwarder or our cooperated one.

Payment Term: T/T,Paypal, Western Union and L/C are available.

Price: If your QTY is big, the price could be negotiated.



FAQ

Q1: How can i get your catalogue and price list?

A1: Please let us know your email or contacts from website directly for our catalogue and price list

Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods

Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested

Q4: Can I visit you?

A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment

Q5: What if there is quality problem when we get the goods?

A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future

Q6. What is your terms of packing?

A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers

Q7. What is your terms of payment?

A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance

Q8. What is your terms of delivery?

A8: EXW, FOB, CFR, CIF, DDU

Q9. How about your delivery time?

A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order

Q10. Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings



Reaching out to us right now, let's help you to strong your business!



Make FTTH spread to all over the world, and make better connectivity for better life!
