1*N Fiber Optic 9/125 um Single Mode PLC Planar Lightwave Circuit Splitter
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | PLC Planar Lightwave Circuit Splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 1*32 Fiber Optic 9/125 Um Single Mode PLC Planar Lightwave Circuit Splitter | Operating Wavelength(nm): | 1260 ~ 1650 |
|---|---|---|---|
| Type（1*N）: | 1*2 1*4 1*8 1*16 1*32 1*64 | Max.Insertion Loss（dB）: | 3.9 7.2 10.3 13.5 16.8 20.3 |
| Min.Return Loss（dB）: | 55 | Fiber Type: | ITU-T G657A1 , G657A2 And G.652D |
| Max.Temperature Stability（dB）: | 0.5( Typical 0.3 ) | Operating Temperature（℃）: | -40 ~ +85 |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | single mode PLC splitter,fiber optic 9/125 um splitter,planar lightwave circuit splitter |
||
Product Description

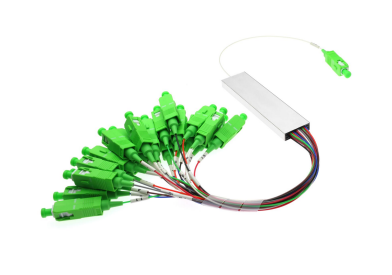

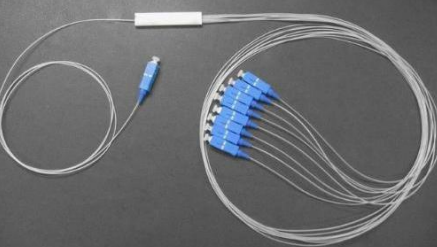

1×32 Fiber Optic 9/125 µm Single Mode PLC Splitter
The PLC (Planar Lightwave Circuit) Splitter is a high-performance power distribution device based on integrated quartz substrate technology. These single mode 1×N and 2×N splitters uniformly divide optical signals from one or two inputs to multiple outputs, and can also operate in reverse to combine multiple signals into one or two fibers.
Applications
- Telecommunication Networks
- PON (Passive Optical Network) Systems
- FTTH (Fiber to the Home) Deployments
- CATV Distribution Systems
- Video Transmission Networks
Key Features
- Broadband Operation Wavelength Range
- Low Insertion Loss Performance
- Minimal Polarization Dependent Loss (PDL)
- Compact and Space-Efficient Design
- Excellent Channel-to-Channel Uniformity
- High Reliability and Long-Term Stability
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (°C) | -40 ~ +85 |
| Storage Temperature (°C) | -40 ~ +85 |
1×N Splitter Performance
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
2×N Splitter Performance
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Note: All measurements are made at room temperature, and connectors are not included.
Packaging Dimensions
1×N Splitter Packaging
| Package Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Mini Module Metal Box (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
2×N Splitter Packaging
| Package Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×4 |
| Mini Module Metal Box (mm) | 70×7×4 | 70×7×4 | 70×7×4 | 80×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
Product Images
Why Choose TAKFLY?
- 26+ years of fiber optic manufacturing expertise
- 450+ experienced assembly workers with 3+ years experience
- 10+ dedicated R&D Engineers driving innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ advanced testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive quality testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
