PON Optical Power Meter | For GPON /EPON and XGPON/ XGSPON Networks
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | PON Optical Power Meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | PON Optical Power Meter | For GPON /EPON And XGPON/ XGSPON Networks | Pass Zone(nm): | 1470nm～1505nm |
|---|---|---|---|
| Material: | -40dBm～+10dBm | Isolation@1490/1550(dB): | >40dB |
| Connector TypeOptical Connector: | FC/SC/ST Interchangeable/2.5 Universal Adapter | Fiber Type: | SM 9/125um |
| Operation Temperature(℃): | -10℃～60℃ | Weight: | 425g |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | PON optical power meter for GPON networks,EPON optical power meter with warranty,XGSPON network fiber optic tool |
||
Product Description

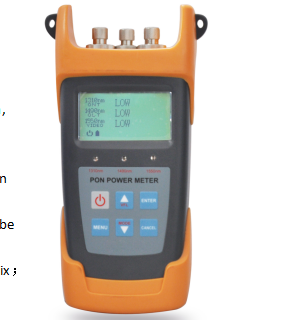

PON Optical Power Meter for GPON/EPON and XGPON/XGSPON Networks
The 10G XGS PON optical power meter can measure power values of uplink and downlink signals in GPON/EPON and XGPON/XGSPON networks, as well as measure the wavelength of downlink signal power at 1490/1550/1577nm.
Product Overview
Designed for FTTx applications and maintenance, this power meter simultaneously tests and estimates voice, data, and video signals. It is an essential tool for construction and maintenance of PON projects.
Applications
- Use as OTDR launch/receive cable
- Test link loss with an OTDR
- Measure insertion loss and reflectance of near/far end connectors
- Pulse suppressor for first reflection at fiber beginning
Key Features
- Simultaneous measurement and display of voice, data, and video signals on BPON/EPON/GPON
- Simultaneous measurement for all three wavelengths (1490nm, 1550nm, 1310nm)
- Burst mode measurement of 1310nm upstream
- PC software connectivity for threshold setting, data transfer, and wavelength calibration
- USB communication port for data transfer to PC
- Stores 1000 measurement items in device or computer
- Optical power meter and VFL with one port (3213A model)
- Optional Chinese/English display
- 10 different threshold sets with status LEDs (Pass, Warn, Fail)
- 10-minute auto-off function (activatable/deactivatable)
- Ergonomic key design with high sensitivity
- Compact, lightweight design
- Multiple models available for different functions
Technical Specifications
PON Module
| Parameter | Specification |
|---|---|
| 1310 Upstream Measurement | |
| Pass Zone (nm) | 1260nm～1360nm |
| Measurement Range (dBm) | -40dBm～+10dBm |
| Output Power (max) | 15dBm |
| Isolation @1490/1550 (dB) | >40dB |
| Burst Mode Measurement Error | <±0.5dB |
| 1490 Downstream Measurement | |
| Pass Zone (nm) | 1470nm～1505nm |
| Measurement Range (dBm) | -40dBm～+10dBm |
| Output Power (max) | 15dBm |
| Isolation @1310/1550 (dB) | >40dB |
| 1550 Downstream Measurement | |
| Pass Zone (nm) | 1535nm～1570nm |
| Measurement Range (dBm) | -40dBm～+10dBm |
| Output Power (max) | 25dBm |
| Isolation @1310/1490nm | >40dB |
| Measurement Accuracy | |
| Connatural Uncertainty (dB) | ±0.5dB |
| Linearity (dB) | ±0.1dB |
| Passing Through Insertion Loss (dB) | <1.5dB |
| General Information | |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM 9/125um |
| Measurement Unit | dB/dBm/xW |
| Resolution (dB) | 0.01dB |
| Operation Voltage (V) | DC 3.3V～5.5V |
| Power Supply | 3pc 1.5V battery |
| Continuously Operation Time (h) | PON:90h OPM:100h VFL:50h |
| Operation Temperature (℃) | -10℃～60℃ |
| Storage Temperature (℃) | -25℃～70℃ |
| Weight (kg) | 425g |
Note: The operation time of the battery are all for the instrument that do not turn on back light, if the back light turn on the operation time will be shorted.
Normal Optical Power Meter Module
| Parameter | Specification |
|---|---|
| Measurement Accuracy | |
| Connatural Uncertainty (dB) | ±0.5dB |
| Linearity (dB) | ±0.1dB |
| Measurement Range (dBm) | -70dBm～+6dBm |
| General Information | |
| Measurement Unit | dB/dBm |
| Resolution (dB) | 0.01dB |
| Calibration Wavelength (nm) | 1310/1490/1550/1625 |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
VFL Module
| Parameter | Specification |
|---|---|
| Output Power | >0.5mW |
| Wavelength | 650nm |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM/MM |
Standard Package
| Item | Description | Quantity |
|---|---|---|
| 1 | PON Tester | 1 unit |
| 2 | User Manual | 1 pc |
| 3 | USB Cable | 1 pc |
| 4 | Software CD | 1 pc |
| 5 | 1.5V AA Battery | 3 pc |
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
