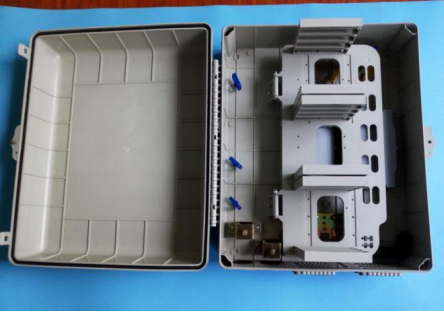

FTKS-1805-96A 96 ports Fiber Termination Box For FTTx Communication Network Building From China
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | FTKS-1805-96A 96 ports Fiber Termination Box For FTTx Communication Network Building From China |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTKS-1805-96A 96 Ports Fiber Termination Box For FTTx Communication Network Building From China | Working Temperature: | 40℃~+60℃ |
|---|---|---|---|
| Relative Humidity:: | S95%(+40℃) | Atmospheric Pressure: | 70KPa~108Kpa |
| Size: | 473*410*175mm | Weight: | 3.1KG |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 96 ports fiber termination box,FTTx communication fiber box,fiber optic termination box with warranty |
||
Product Description
FTKS-1805-96A 96 Ports Fiber Termination Box
Professional fiber termination box designed for FTTx communication network systems, serving as a critical connection point between feeder cables and drop cables.
Product Overview
FTKS-96A 96-core optical branch box developed through proprietary manufacturing, with product performance compliant with industry standard YD/T2150-2010 requirements. Primarily used in FTTX access system terminal links. Constructed from high-strength PC alloy plastic injection molding, featuring excellent sealing and anti-aging properties. Suitable for outdoor wall mounting, pole installation, or indoor wall-mounted applications.
Key Features
- Internal double-layer structure design with clear separation: fiber distribution area, outdoor fiber cable entry, fixed splicing, and butterfly fiber cable storage area
- Organized fiber routing prevents interference, facilitating construction operations and maintenance
- Two cable entry holes at lower edge accommodate two outdoor fiber cables and 96 butterfly fiber cables
- Supports outdoor fiber straight-through or branching connections with butterfly fiber cable termination
- Flip-form splice tray configurable for 96-core capacity specifications to accommodate expansion needs
- Flange installation supports 96-core capacity
- Butterfly fiber cable fixing unit features card slot structure for organized cable distribution
- Approximately 1 meter of butterfly fiber cable storage capacity with organized wire loops
- Guaranteed bending radius ≥30mm for optimal fiber protection
Installation Instructions
Wall Mounting Installation
- Mark and drill four mounting holes according to backplane mounting hole spacing
- Insert plastic expansion sleeves into wall holes
- Secure box to wall using M8 × 40 screws
- Insert upper positioning holes into wall, then secure lower holes with M8 × 40 screws
- Verify cabinet installation, then close door and secure with key to prevent water ingress
- Install outdoor and butterfly fiber cables according to construction requirements
Pole Mounting Installation
- Remove installation clamp from box and loosen clamp for backplane attachment
- Secure box to pole using clamp assembly
- Verify clamp lock is secure and reliable without looseness
- Follow same fiber cable installation procedures as wall mounting
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | ≤ 95% (+40°C) |
| Atmospheric Pressure | 70Kpa to 108Kpa |
| Size | 473×410×175mm |
| Weight | 3.1KG |
| Construction | Composed of box, splitter bracket, fiber cable entry/fixed grounding unit, butterfly fiber cable fixed unit, and seal components |
Configuration Details
Product Images
Why Choose TAKFLY?
Manufacturing Excellence
- 26+ years of specialized fiber optic manufacturing experience
- 450+ skilled assembly workers with 3+ years average experience
- 10+ dedicated R&D engineers for continuous product improvement
- 16 sets of German injection machines with 16 production lines
Quality Assurance & Testing
- 30+ advanced testing machines including OTDR, 3D, VFL, IL & RL test instruments
- Tension strength testers and crush resistance testers
- Power meter testers and comprehensive light checking equipment
Global Presence & Customization
- OEM branding services available
- Active participation in major international exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material inspection before production begins
- Full inspection after each manufacturing process
- Comprehensive half-done production quality checks
- Complete finished product inspection before packaging
- Final spot check verification before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our comprehensive catalogue and current price list.
Q2: Can I negotiate the prices?
A2: Yes, we offer competitive pricing and may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and preferred shipping method. We provide detailed cost breakdowns upon request.
Q4: Can I visit your facility?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment for a facility tour.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unpacking, please document with photos for our reference. Our QC department will investigate thoroughly and provide optimal solutions, implementing improvements for future production.
Q6: What are your packing terms?
A6: Standard packaging includes blister boxes and cartons. We accommodate custom packaging requests to meet specific customer requirements.
Q7: What are your payment terms?
A7: Standard terms: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
Q8: What are your delivery terms?
A8: We support EXW, FOB, CFR, CIF, and DDU delivery terms to accommodate global shipping requirements.
Q9: What is your delivery time?
A9: Standard delivery: 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we specialize in manufacturing products based on customer samples or technical drawings with precision and quality.
