FTKS-1805-64A/72A 64/72 patch cord Fiber Termination Box For FTTx Communication Network Building From China
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | FTKS-1805-16D 16 ports Fiber Termination Box For FTTx Communication Network Building From China |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTKS-1805-16D 16 Ports Fiber Termination Box For FTTx Communication Network Building From China | Working Temperature: | 40℃~+85℃ |
|---|---|---|---|
| Relative Humidity:: | S85%(+30℃) | Atmospheric Pressure: | 70KPa~106Kpa |
| Insertion Loss: | ≤0.2dB | UPC Return Loss: | ≥50dB |
| APC Return Loss: | ≥60dB | Life Of Insertion And Extraction Fiber Count: | >1000 Times |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | FTKS fiber termination box for FTTx,64/72 patch cord fiber box,fiber optic termination box with warranty |
||
Product Description

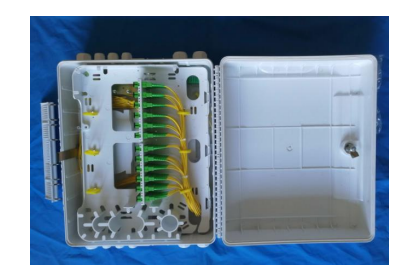

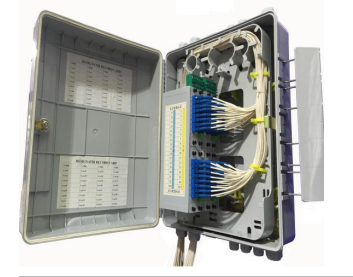

FTKS-1805-64A/72A 64/72 Patch Cord Fiber Termination Box
Professional fiber termination box designed for FTTx communication network systems, serving as a critical connection point between feeder cables and drop cables.
Product Overview
The FTKS-1805-64A/72A termination box is designed for residential, communication room, business and outdoor applications for the termination of up to 64 fibers. This FTB serves as a termination point for feeder cable to connect with drop cable in FTTH communication network systems, providing fiber splitting, splicing and distribution with solid protection and management for FTTH network building.
Applications
- FTTH, FTTO, FTTD Applications
- LAN, WAN Networks
- Indoor & Outdoor Applications
Key Features
- Total enclosed structure
- Clamping for feeder and drop cable
- Wall or pole mount installation
- Suitable for outdoor use
- Secured unique lock
- Flip tray for easy access to pigtail and cable
- Material: PC+ABS
- Water proof, dust proof - Protection level: IP65
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | ≤ 85% (+30°C) |
| Number of Splice Trays | 1 |
| Maximum Fiber Capacity | PLC TYPE 64; Adapter TYPE 72 |
| Numbers of Customer Feed | 64/72 patch cord |
| Material | PC+ABS |
| Testing | Optical Tested: 1310nm, 1550nm and 1625nm |
| Atmospheric Pressure | 70KPa-106KPa |
| Size | 500mm × 400mm × 185mm |
Enter Cable Cut Type
- Screw: 4mm×40mm 4pcs
- Expansion bolt: M6 4pcs
- Electrical adhesive tape: 5M 1pcs
- Cable tie: 3mm×10mm 8pcs
- Heat-shrink sleeve: 1.0mm×3mm×60r
Why Choose TAKFLY?
Manufacturing Excellence
- 26+ years of specialized fiber optic manufacturing experience
- 450+ skilled assembly workers with 3+ years average experience
- 10+ dedicated R&D engineers for continuous product improvement
- 16 sets of German injection machines with 16 production lines
Quality Assurance & Testing
- 30+ advanced testing machines including OTDR, 3D, VFL, IL & RL test instruments
- Tension strength testers and crush resistance testers
- Power meter testers and comprehensive light checking equipment
Global Presence & Customization
- OEM branding services available
- Active participation in major international exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material inspection before production begins
- Full inspection after each manufacturing process
- Comprehensive half-done production quality checks
- Complete finished product inspection before packaging
- Final spot check verification before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our comprehensive catalogue and current price list.
Q2: Can I negotiate the prices?
A2: Yes, we offer competitive pricing and may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and preferred shipping method. We provide detailed cost breakdowns upon request.
Q4: Can I visit your facility?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment for a facility tour.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unpacking, please document with photos for our reference. Our QC department will investigate thoroughly and provide optimal solutions, implementing improvements for future production.
Q6: What are your packing terms?
A6: Standard packaging includes blister boxes and cartons. We accommodate custom packaging requests to meet specific customer requirements.
Q7: What are your payment terms?
A7: Standard terms: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
Q8: What are your delivery terms?
A8: We support EXW, FOB, CFR, CIF, and DDU delivery terms to accommodate global shipping requirements.
Q9: What is your delivery time?
A9: Standard delivery: 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we specialize in manufacturing products based on customer samples or technical drawings with precision and quality.
If you're interested in our fiber optic products or have any technical questions, our engineering team is available to assist you at any time!
