FTKS-1805-16D 16 ports Fiber Termination Box For FTTx Communication Network Building From China
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | FTKS-1805-16D 16 ports Fiber Termination Box For FTTx Communication Network Building From China |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTKS-1805-16D 16 Ports Fiber Termination Box For FTTx Communication Network Building From China | Working Temperature: | 40℃~+85℃ |
|---|---|---|---|
| Relative Humidity:: | S85%(+30℃) | Atmospheric Pressure: | 70KPa~106Kpa |
| Insertion Loss: | ≤0.2dB | UPC Return Loss: | ≥50dB |
| APC Return Loss: | ≥60dB | Life Of Insertion And Extraction Fiber Count: | >1000 Times |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 16 port fiber termination box,FTTx fiber optic box,fiber termination box for network building |
||
Product Description

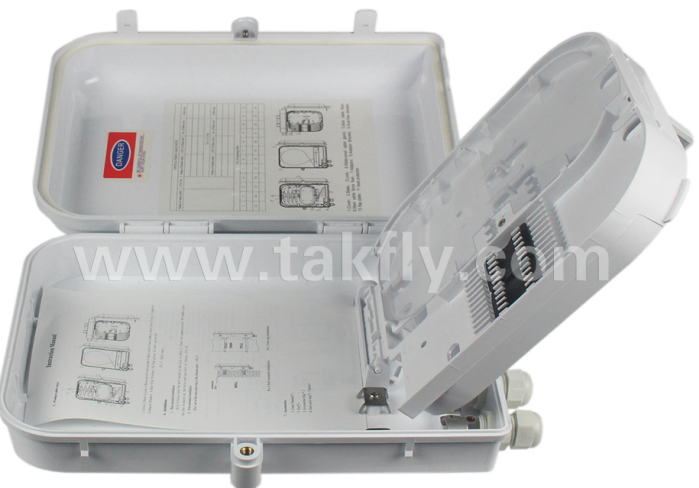

FTKS-1805-16D 16 Ports Fiber Termination Box
Professional fiber termination box designed for FTTx communication network systems, serving as a critical connection point between feeder cables and drop cables.
Product Overview
This fiber termination box integrates fiber splicing, splitting, distribution, storage, and cable connection functions into a single, efficient unit while providing robust protection and management for FTTx network infrastructure.
Key Features
- Total enclosed structure for maximum protection
- High-quality PC+ABS material: wet-proof, water-proof, dust-proof, anti-aging, and UV resistant
- IP65 protection rating for superior environmental resistance
- Integrated clamping for feeder cable and drop cable with comprehensive fiber management
- Separate routing paths for cables, pigtails, and patch cords to prevent interference
- Cassette type SC/LC/PLC adaptor installation for easy maintenance
- Flip-up distribution panel with cup-joint feeder cable placement
- Wall-mounted or pole-mounted installation options
- Suitable for both indoor and outdoor applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | ≤ 85% (+30°C) |
| Atmospheric Pressure | 70Kpa to 106Kpa |
| Insertion Loss | ≤ 0.2dB |
| UPC Return Loss | ≥ 50dB |
| APC Return Loss | ≥ 60dB |
| Insertion/Extraction Life | ≥ 1000 cycles |
| Insulation Withstand Voltage | Grounding device insulated from termination box, IR 21000m Ω/500V DC. Between grounding device and box body: withstand voltage >3000V/Min, no breakdown or flashover. U 23000V DC |
| Thunder-proof Technical Data | Grounding device isolated with cabinet, isolation resistance ≤ 2MΩ/500V (DC); IR≥2MΩ/500V. Withstand voltage between grounding device and cabinet ≥3000V(DC)/min, no puncture, no flashover; U≥3000V |
Configuration
Product Images
Why Choose TAKFLY?
Manufacturing Excellence
- 26+ years of specialized fiber optic manufacturing experience
- 450+ skilled assembly workers with 3+ years average experience
- 10+ dedicated R&D engineers for continuous product improvement
- 16 sets of German injection machines with 16 production lines
Quality Assurance & Testing
- 30+ advanced testing machines including OTDR, 3D, VFL, IL & RL test instruments
- Tension strength testers and crush resistance testers
- Power meter testers and comprehensive light checking equipment
Global Presence & Customization
- OEM branding services available
- Active participation in major international exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material inspection before production begins
- Full inspection after each manufacturing process
- Comprehensive half-done production quality checks
- Complete finished product inspection before packaging
- Final spot check verification before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our comprehensive catalogue and current price list.
Q2: Can I negotiate the prices?
A2: Yes, we offer competitive pricing and may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and preferred shipping method. We provide detailed cost breakdowns upon request.
Q4: Can I visit your facility?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment for a facility tour.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unpacking, please document with photos for our reference. Our QC department will investigate thoroughly and provide optimal solutions, implementing improvements for future production.
Q6: What are your packing terms?
A6: Standard packaging includes blister boxes and cartons. We accommodate custom packaging requests to meet specific customer requirements.
Q7: What are your payment terms?
A7: Standard terms: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
Q8: What are your delivery terms?
A8: We support EXW, FOB, CFR, CIF, and DDU delivery terms to accommodate global shipping requirements.
Q9: What is your delivery time?
A9: Standard delivery: 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we specialize in manufacturing products based on customer samples or technical drawings with precision and quality.
If you're interested in our fiber optic products or have any technical questions, our engineering team is available to assist you at any time!
