FTKS-1805-08F 8 Ports Fiber Termination Box For FTTx Communication Network Building From China
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | FTKS-1805-08F 8 Ports Fiber Termination Box For FTTx Communication Network Building From China |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTKS-1805-08F 8 Ports Fiber Termination Box For FTTx Communication Network Building From China | Working Temperature: | 40℃~+85℃ |
|---|---|---|---|
| Relative Humidity:: | S85%(+30℃) | Atmospheric Pressure: | 70KPa~106Kpa |
| Insertion Loss: | S0.2dB | UPC Return Loss: | ≥50dB |
| APC Return Loss: | ≥60dB | Life Of Insertion And Extraction Fiber Count: | >1000 Times |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 8 ports fiber termination box,FTTx communication network box,fiber optic termination box for buildings |
||
Product Description

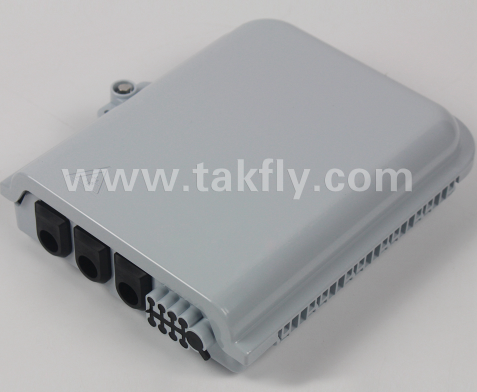

FTKS-1805-08F 8 Ports Fiber Termination Box
Professional fiber termination box designed for FTTx communication network building applications.
Product Overview
This termination box serves as a connection point between feeder cable and drop cable in FTTx communication network systems. It integrates fiber splicing, splitting, distribution, storage, and cable connection in a single unit while providing robust protection and management for FTTx network infrastructure.
Applications
- Telecommunication subscriber loop systems
- Fiber to the Home (FTTH) installations
- LAN/WAN network infrastructure
Key Features
- Fully enclosed structure with compact design
- Effective cable protection and management system
- Anti-theft locking mechanism for security
- Standard size with lightweight construction
- High-quality PC + ABS composite materials
- Dust and moisture proof with IP65 rating
- Integrated clamping for feeder and drop cables
- Compatible with SC and LC duplex adapters and pigtails
- User-friendly operation and installation
- Suitable for both outdoor and indoor applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | ≤ 85% (+30°C) |
| Atmospheric Pressure | 70Kpa to 106Kpa |
| Insertion Loss | ≤ 0.2dB |
| UPC Return Loss | ≥ 50dB |
| APC Return Loss | ≥ 60dB |
| Insertion/Extraction Life | ≥ 1000 cycles |
| Insulation Withstand Voltage | Grounding device insulated from termination box, IR 21000m Ω/500V DC. Withstand voltage exceeds 3000V/Min between grounding device and box body without breakdown or flashover. |
Why Choose TAKFLY?
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers
- 16 Germany-imported injection machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL & RL test instruments
- OEM branding services available
- Active participation in major global exhibitions
Quality Control
Our comprehensive quality control process includes raw material inspection, process monitoring, production checks, final product inspection, and pre-shipment verification to ensure consistent product excellence.
Delivery Information
- Samples: 1-3 working days
- Mass production: 3-7 working days
- Flexible packaging options available
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on shipment size and method. We will provide the cost upon request.
Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If you encounter quality issues, please take photos for our reference. Our QC department will investigate and provide solutions, and we will implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can accommodate custom packaging requests.
What are your payment terms?
T/T 30% as deposit, and 70% before delivery. We provide photos of products and packaging before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU
What is your delivery time?
Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Can you produce according to samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
