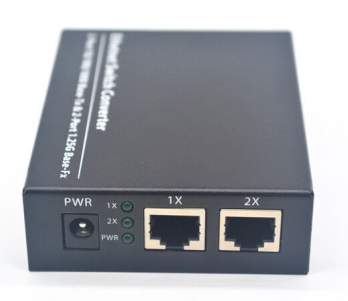

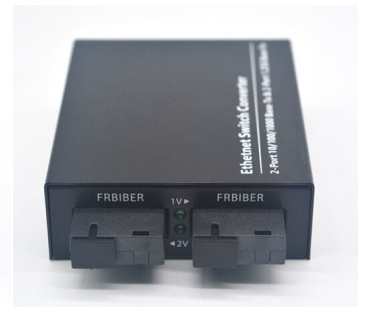

SC Single-Fiber 10/100/1000M with 2 RJ45 Port Base-T to 100 Base-X Managed Media Converter
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | SC Single-Fiber 10/100/1000M with 2 RJ45 Port Base-T to 100 Base-X Managed Media Converter |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | SC Single-Fiber 10/100/1000M With 2 RJ45 Port Base-T To 100 Base-X Managed Media Converter | Flow Control: | Full Duplex: Flow Control; Half Duplex: Back Pressure |
|---|---|---|---|
| Connector: | 2xRJ45 Connector Distance:100m | Distance:: | MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| Operating Temperature: | -10 ~ 50 ℃ | Store Temperature: | -40~ 85 ℃ |
| Humidity: | 5%~90% | Dimensions: | External: 90mm X72mmx25mm Internal: 140mmx110mmx30mm |
| Warranty: | 1-5 Years | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | SC fiber optic media converter,managed media converter RJ45 ports,Base-T to Base-X converter |
||
Product Description
SC Single-Fiber 10/100/1000M with 2 RJ45 Port Base-T to 100 Base-X Managed Media Converter
The DF-MC12 Serial Fiber Media Converter translates signals from twisted-pair 10/100/1000MBase-TX cables to 1000Base-FX fiber optic cables, extending data transmission distance from 100 meters via copper cables to 120 kilometers using fiber optic technology.
Key Features
- Full-duplex and half-duplex auto-sensing
- MDI/MDI-X Auto Negotiation
- 10/100/1000Mbps store-and-forward operation
- 1000Mbps cut-through transmission capability
- Packet size up to 1518 bytes
- Support for VLAN, VoIP, and QoS packets
- Flow control with reduced broadcast packets
- STP support for redundant network formation
- Extremely low power consumption with stable performance
- Multiple installation options: Desktop, Wall-mounted, Chassis, DIN-rail
- External Power Adapter or USB power source compatibility
- DIP Switch for configuration settings
- Support for extra-long packets up to 1600 bytes
- 10/100/1000Mbps auto-sensing for easy upgrades
Technical Specifications
| Standard | IEEE 802.3 Ethernet Media Access Control Protocol, IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x 1000BASE-TX Fast Ethernet |
|---|---|
| Data Rate | Copper: 10/100/1000M; Fiber: 10/100/1000Mbps |
| Flow Control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | Number of Copper Ports: 2, Connector: 2xRJ45, Distance: 100m |
| Fiber Port | Number of Fiber Ports: 2, Connector: SC (default), FC/ST optional, Wavelength: TX 1550 nm/RX 1310 nm, Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED Indicators | PWR (power supply); FL/A (optical link/action); FDX (FX full duplex); TL/A (twisted pairs link/action); 100 (100M transmission rate of twisted pairs); FX (100M transmission rate of optical fiber) |
| Power Supply | Working power: DC5V 1A, AC Power Supply: 100V~ AC240V to 5V1A or DC Power Supply: -36~-72V to 5V1A, External/Internal Power Supply Optional |
| Power Consumption | <2W |
| Environment | Operating temperature: -10~55ºC, Storage Temperature: -40~85ºC, Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 90mm x 72mm x 25mm, Internal: 140mm x 110mm x 30mm |
| Gross Weight | External: 0.4kg, Internal: 0.5kg |
Why Choose TAKFLY?
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment for quality assurance
- OEM branding accepted
- Global exhibition participation
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
